Obey 10 is a compact controller ready to handle all the complexities of today's lighting fixtures. Capable of controlling up to 8, 16-channel fixtures, the Obey 10 can store 6 sets of chases containing up to 999 scenes each. Flexibility was key in the design of the unit so CHAUVET included the ability to reverse sliders and re-assign channels as needed. Also offered is the ability to grab any fixture on the fly, and set up your fixture's movements to be beat activated or run automatically without input from the operator.
Chauvet DJ Obey 10 Features
- Compact, universal DMX controller capable of handling all the complexities of today's lighting fixtures
- Easily control up to 8 intelligent lights with up to 16 channels each
- Increase design flexibility with 128 channels of DMX control
- Enhance light shows with 6 sets of chase effects containing 999 steps each
- Includes the ability to reverse sliders and reassign channels as needed
- Sequential linking of chases
- Grab any fixture on the fly and set it to automatic or sound-activated mode

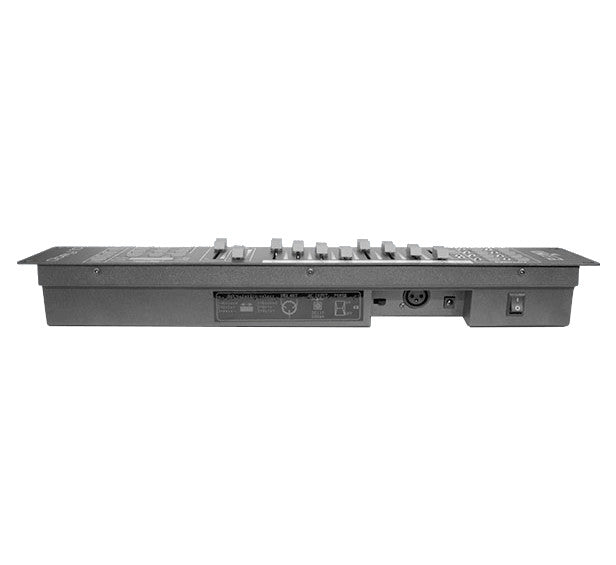

- Conveniently mounts using the double space (2U) mounting rack
- Obey 10 DMX controller1
- External power supply1
- DMX channels128
- DMX connectors3-pin XLR
- Rackmount2U
- Input voltage9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Dimensions19" x 3.5" x 3.5"
- Weight3.9 pounds (1.8 kg)
