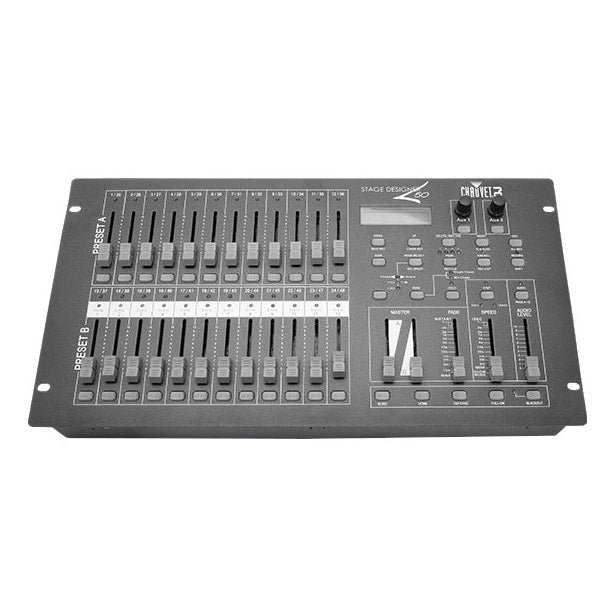

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.
Chauvet DJ Stage Designer 50 Features
- Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
- Saves desk space by squeezing 48 channels into a 24-channel console
- Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
- Increase programming and playback versatility with two programmable auxiliaries
- Simplify programming by using DMX channel patching to reassign channels
- Increase flexibility with built-in MIDI support for remote dimming and scene triggering
- Coordinate your light shows to music using the direct audio input connector or built-in microphone
- Ability to stack scenes for simultaneous or sequential playback
- Stage Designer 50 dimming console1
- Power cord1
- External power supply1
- DMX channels48
- DMX connectors3 and 5-pin XLR
- Input voltage9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
- Rackmount6U
- Dimensions19" x 10.5" x 3.5"
- Weight9.9 pounds (4.5 kg)
