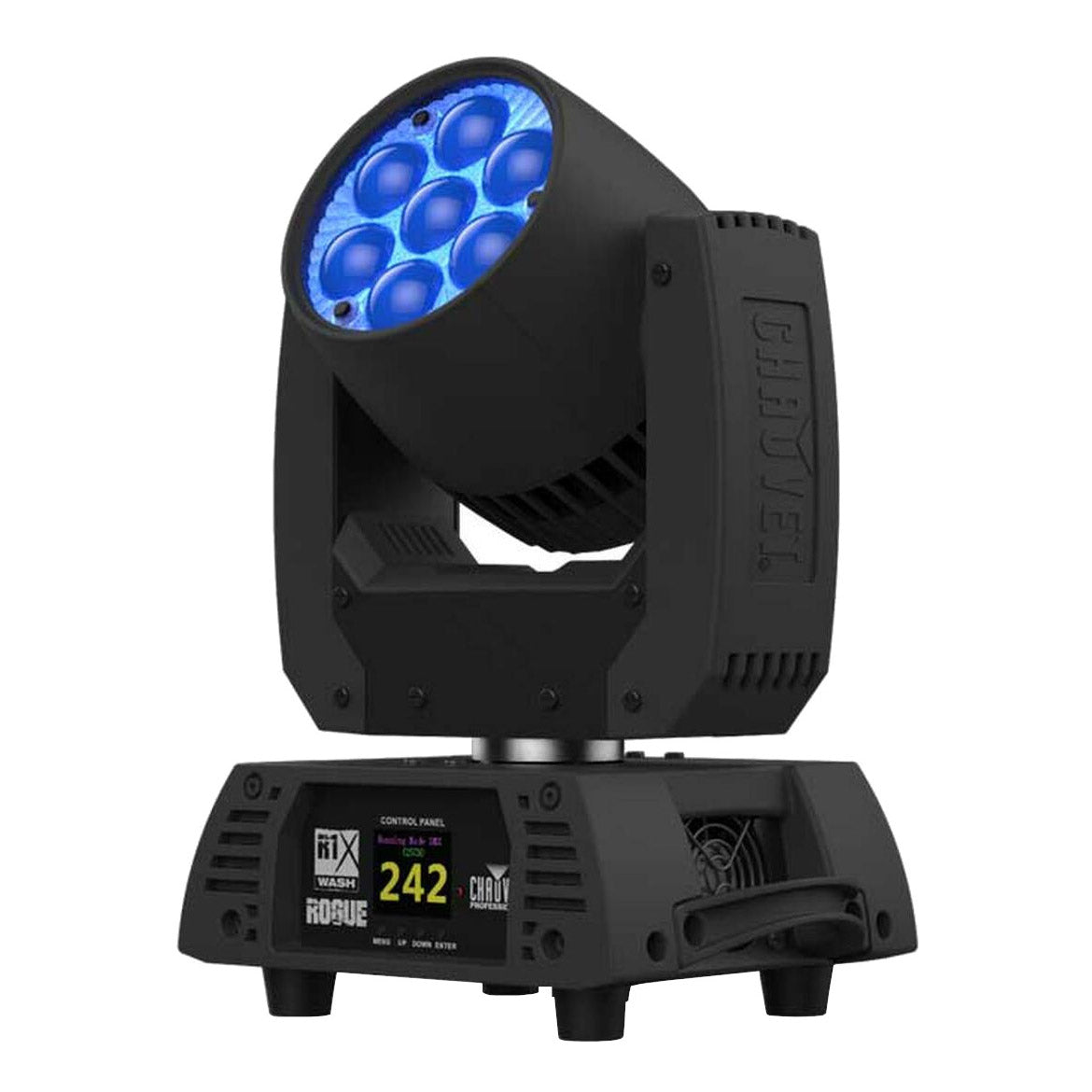

Chauvet Pro Rogue R1X RGBW LED Wash Moving Head

The Chauvet Pro Rogue R1X wash fixture is an excellent addition to touring or permanent installation setups.

Seven RGBW LEDs power the Rogue R1X wash, each with 25 watts. If legacy Rogue R1 washes are being used with the Rogue R1X wash, you can adjust the LED maximum output on the Rogue R1X wash to match your legacy R1. The fixture itself is powered simply by plugging in the included power cord. Power linking is possible—a great way to save on cable mess in busy or crowded spaces. DMX connections via 3 and 5-pin inputs/outputs are supported.

Enjoy bright and beautiful color rendering thanks to the Rogue R1X wash’s unique “bubble” lens construction. Color rendering and other effects stay pristine even during transitions: a 16-bit master dimmer provides smooth control of fades. Pan and tilt movements operate smoothly even at quick speeds, ensuring the colorful beams keep clean edges as they dance around the space. Its zoom range is an impressively wide 7.9° to 62.7°.

All the performance features are easily accessible for activation or adjustment from the easy-to-read OLED display menu. Some of these functions include panning, tilting, dimming, color-changing, and more.

Control the Rogue R1X wash even when you can’t get to the fixture itself. The fixture is RDM enabled for remote addressing and troubleshooting.

Chauvet Pro Rogue R1X Wash Features

• Fully featured RGBW LED yoke wash fixture with zoom
• 16-bit dimming of master dimmer (electronic) as well as individual colors for smooth control of fades
• 7 RGBW LEDs, 25 W each
• 3- and 5-pin DMX input/output connections
• Unique lens design for excellent color blending
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R1 Washes
• Selectable PWM settings for camera operation
• 6 distinct dimming modes for advanced control
• User-selected calibrated white for 7500 K at full output
• Omega mounting bracket, fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility

• Rogue R1X RGBW LED wash moving head1
• Neutrik® powerCON® power cord1
• Omega bracket with mounting hardware1

• Power connectionEdison (Local) plug to Neutrik® powerCON®
• Power inputNeutrik® powerCON®
• Power outputNeutrik® powerCON®
• Data connectors3- and 5-pin XLR
• Power cable length5 ft (1.5 m)
• Input voltage100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power linking10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
• Power and current
  • 157 W, 1.33 A @ 120 V, 60 Hz
  • 152 W, 0.738 A @ 208 V, 60 Hz
  • 153 W, 0.660 A @ 230 V, 50 Hz
• Control protocolDMX, RDM
• DMX channels14, 15, 19 or 21
• Modes/personalites4 personalities (14, 15, 19, 21)
• Light source7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color temperature (range)2800 to 10000 K
• Beam angle7.9° to 35.5°
• Field angle11.5° to 50.8°
• Cutoff angle19.3° to 62.7°
• Zoom range7.9° to 62.7°
• Lumens4,000 (source), 2,455 (output)
• Selectable PWM600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
• Pan and tilt540°/230°
• Strobe rate0 to 20Hz
• CertificationsCE, MET, FCC, IP20 (dry location)
• Dimensions7.36" x 10.43" x 13.94"
• Weight13.6 pounds (6.2 kg)
