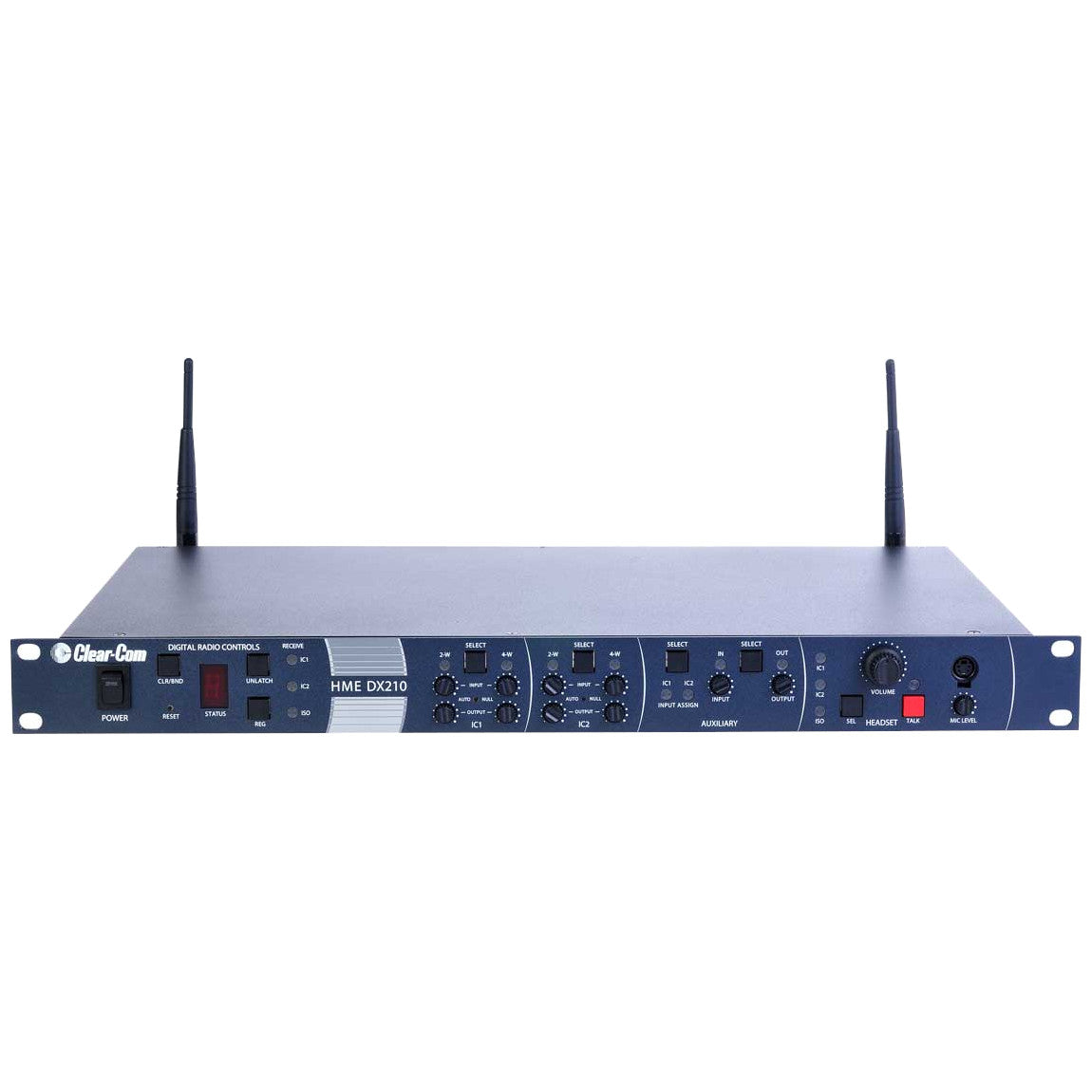

Clear-Com BS210 DX210 2.4GHz Base Station

The Clear-Com BS210 base station is one part of the Clear -Com HME DX210 system which offers the perfect blend in performance, expanded connections with wired intercoms and ease of use for reliable intercommunications. Operating in the 2.4GHz band, the DX210 delivers exceptional sound clarity and enables interference free communications for highly demanding productions.

Clear-Com BS210 DX210 Features

• 2-channels of communications
• 2.4GHz license-free operation
• Supports 4 full-duplex or 11 half-duplex beltpacks or all-in-one headsets
• Link up to 4 co-located base stations
• Two separate 2-wire and 4-wire interconnections
• Digital auto-nulling
• Wireless ISO talk-around
• Relay (GPIO) actuation with ISO function
• Feedback protection for un-terminated 2-wire channels
• Triple diversity (space, time and frequency) operation

• BS210 DX210 2.4GHz Base Station1

• TX & RX Antenna ½-Wave, Dual Diversity Dipole
• 4-Wire I/ORJ-45, 600Ω Balanced, Level Adjustable, Simultaneous Operation with 2-Wire (x2)
• 2-Wire I/O XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
• Auxiliary InputXLR-3F/¼” Phone Combo Jack, 600Ω Balanced, Level Adjustable
• Auxiliary Output XLR-3M, 600Ω Balanced, Level Adjustable
• Headset I/O N/A
• Headset Connector4-Pin Mini-DIN
• Headset Output250mW into 32Ω
• Size19x1.72x13.5" (1-RU); (48.26 x 4.37 x 34.29cm)
• Weight9 lbs (4.1kg)
• Power Requirements100-240V AC, 50-60Hz or 12-14V DC
