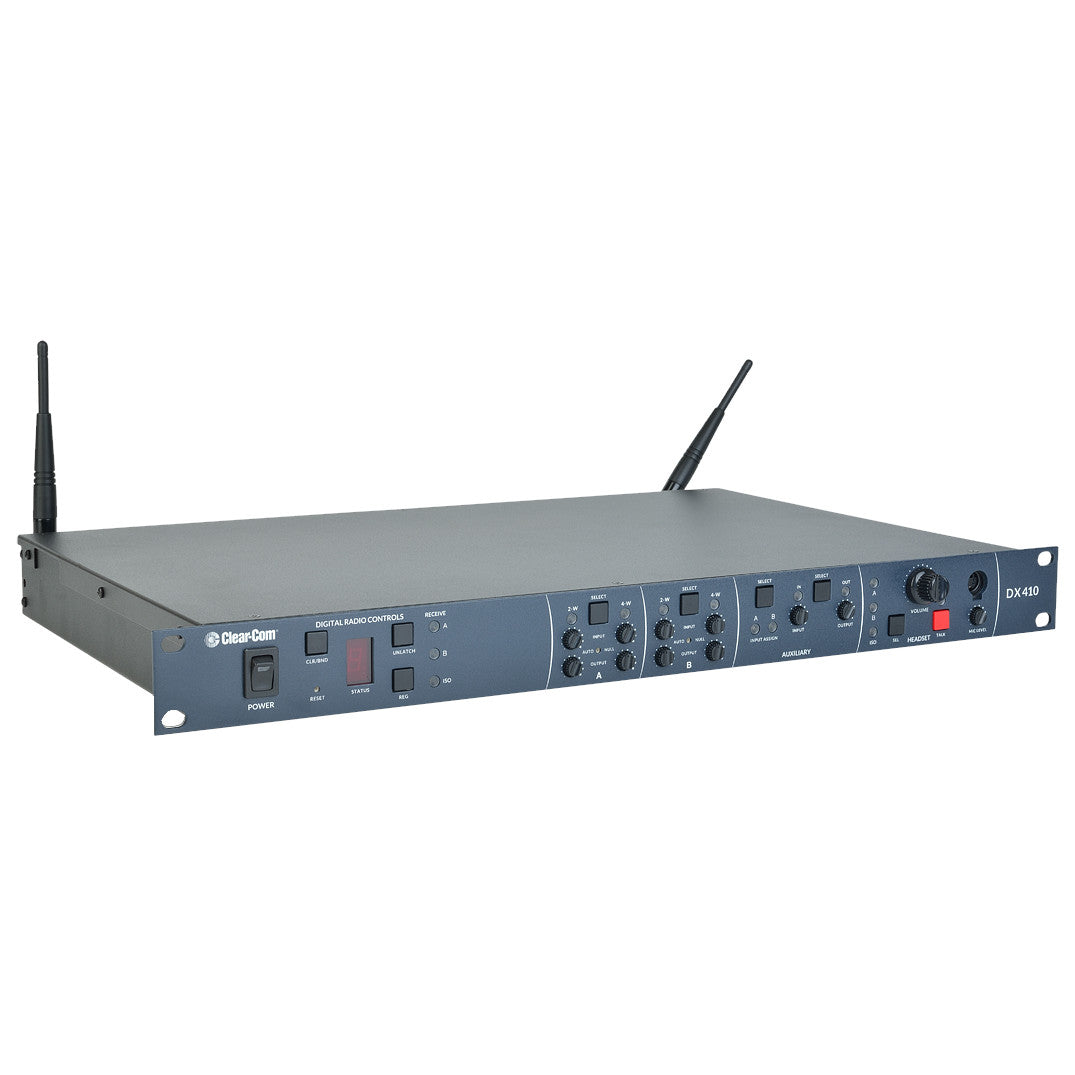

The BS410 is the base station for the DX410 wireless system, supporting up to 15 registered BP410 beltpacks and/or WH410 all-in-one wireless headsets. The system operates in the 2.4GHz frequency band and features high quality 7kHz wideband audio. The BS410 allows the option for audio bridging by combining 2-wire and 4-wire audio together on A or B channels.
Clear-Com CZ-BS410 Features
- Two-channels
- 7kHz wideband audio
- 2-wire and 4-wire bridging
- 2-wire auto-nulling
- Lost packet concealment
- Upgraded radio
- Supports up to 15 beltpacks and/or wireless headsets
- BS410 DX410 2.4GHz Base Station1
- Audio
- Channels: 2 audio channels
- Capacity: Up to 15 BP410 and/or WH410 per base station
- Full-Duplex: Yes. Single-channel = 4 in simultaneous full-duplex. Dual-channel = 3 in simultaneous full-duplex.
- Radio Frequency Range: 2400 – 2483.5 MHz
- Audio Frequency: 200 Hz – 7kHz
- 4-wire I/O: RJ45, 600 Ohms balanced, level adjustable, simultaneous operation with 2-wire
- 2-wire I/O: XLR-3M, XLR-3F, externally-switchable RTS or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB attenuation, typical
- Aux Input: XLR-3F with ¼” (6.35mm) combo jack, 600 Ohms balanced, level adjustable
- Aux Output: XLR-3M, 600 Ohms balanced, level adjustable
- Headset Connector: 4-pin mini-DIN, Electret microphone
- Headset Output: 200mW into 32 Ohms
- Antenna Type: External ½-wave dipole (R-TNC connector), RX/TX horizontal/vertical diversity
- System Distortion: <2%
- Communication Security: dual-slot diversity
- Transmitter
- Type: Frequency Hopping, Spread Spectrum (FHSS)
- Transmit Power: 100mW burst
- Modulation Type: Gaussian filtered FSK, TDMA
- Frequency Stability: 13 ppm
- Harmonics/Spurious: Exceeds FCC and ETSI specifications over temperature
- Receiver
- Type: Frequency Hopping, Spread Spectrum (FHSS)
- RF Sensitivity: <-90dBm w 10-3 BER
- Frequency Stability: 13 ppm
- Distortion: <2%
- Power Requirements100 – 240V AC, 50 – 60Hz or 12 – 14V DC
- EnvironmentalTemperature: +32° – +122°F (0° – +50°C)
- Dimensions (HxWxD)1.75x19x17.13" (44x483x435mm)
- Weight9 lbs (4.1kg)
