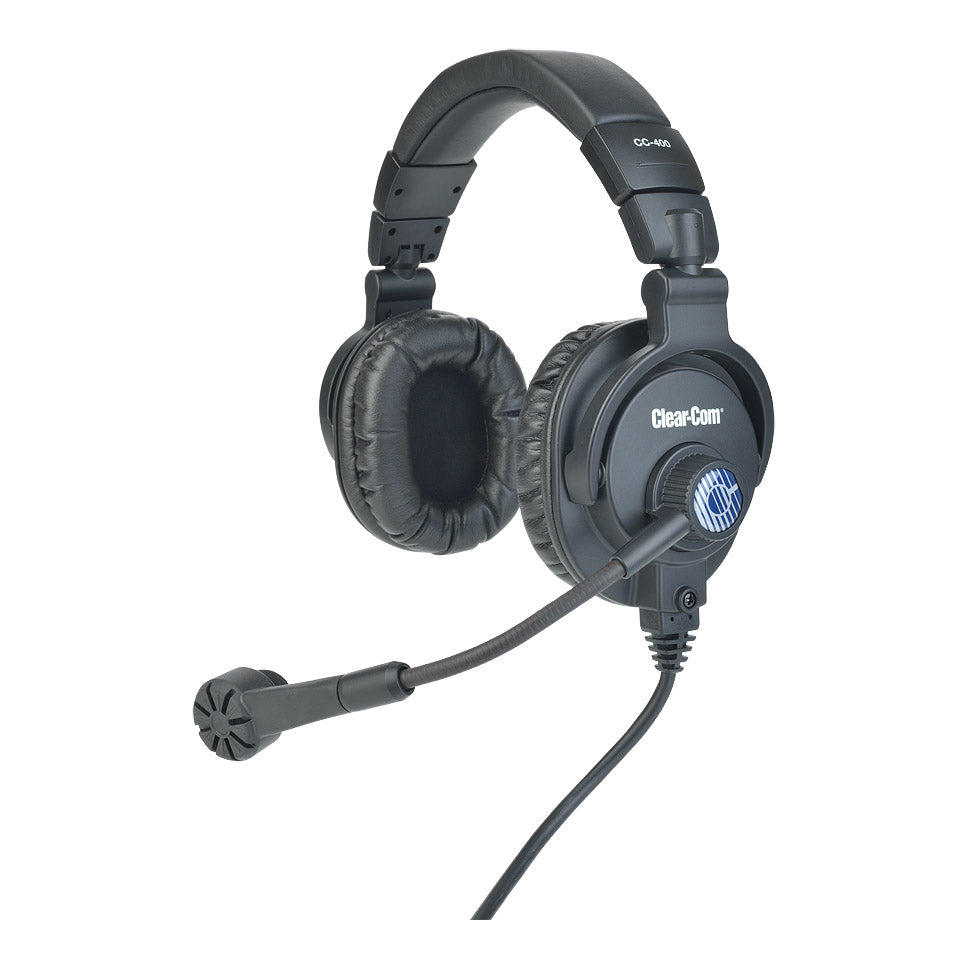

Clear-Com CC-400 Double-Ear Intercom Headset

The CC-400 (double-ear) headset features high performance headphones and cardioid dynamic microphone that provide high quality audio.

The CC-400 headset can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. Users can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette padding, the headphones sit on the ear to provide a comfortable fit for users. A rotating, flexible gooseneck is included for optimal positioning.

Clear-Com CC-400 Features

• Double-ear standard headset
• High quality dynamic cardioid microphone
• High ambient-noise attenuation headphones
• Microphone: 300Hz - 20kHz frequency response
• Headphone: 40Hz - 20kHz frequency response
• Cushioned with soft leatherette padding
• Flexible gooseneck microphone positioning
• 300-degrees boom mic rotation for ON/OFF mic-mute switch
• Rugged design

• CC-400 Double-Ear Intercom Headse1

• Headphone
  • Type: Closed-back
  • Driver: 40mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
  • Frequency Response: 40Hz v- 20kHz
• Microphone
  • Element: Dynamic
  • Polar Pattern: Hyper-cardioid
  • Frequency Response: 300Hz – 20kHz
• Sensitivity
  • Microphone Open Circuit Sensitivity: -61dB
  • ±3.5dB (0dB=1V/1Pa, at 1kHz , typical)
• Headphone Sensitivity98dB ±3dB (SPL) /1mW at 1kHz typical)
• Impedance
  • CC-400: 200Ω ±30%; at 1kHz typical
  • Microphone: 200Ω ±30%; at 1kHz typical
• ConnectorCable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
• Packaging Dimensions (WxHxD)4.8x13x10.43in (122x330x265mm)
• Weight11.1oz (315g) without 8-pin cable assembly and M3*18mm SCREW
