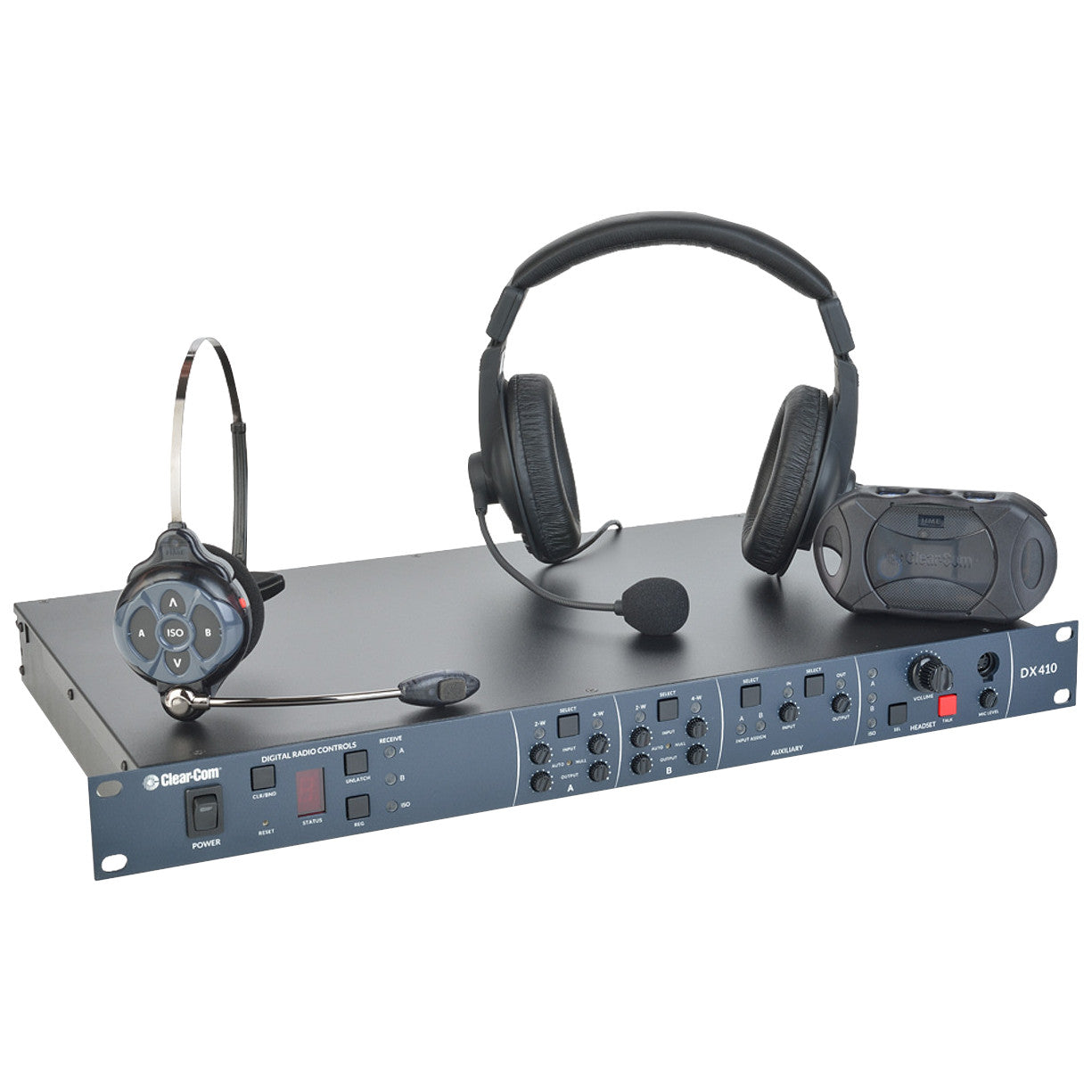

Clear-Com DX410 Digital Wireless Intercom System

The DX410 is a newly designed two-channel digital wireless system, operating in the 2.4GHz band, that delivers an overall better experience in performance, range and sound. The system features 7kHz wideband audio, 2-wire and 4-wire bridging, and 2-wire auto-nulling for fast integration with Clear-Com or TW wired partyline systems.

The DX410 offers an advancement in sound quality: the high definition 7kHz wideband audio technology. The high quality audio expands audio range and increases intelligibility in high RF environments so even soft whispers can be heard clearly. With an upgraded radio and lost packet concealment capability, the DX410 delivers an improved experience in performance, range and sound.

The DX410 uses a frequency hopping system (FHSS), and offers spectrum-friendly and Adaptive Frequency Hopping (AFH) modes, to avoid interference with Wi-Fi. Operating in the 2.4GHz band means that DX410 does not require radio licensing for use.

Typically, each circuit would be on its own channel. On the DX410 base station, there is an option for combining 2-wire and 4-wire audio together on A or B channels, allowing everyone on both circuits to intercommunicate. When daisy-chaining multiple bases together, users can bridge a 4-wire, allowing the use of 4-wire out to send the audio to a mixer, matrix or other audio source.

Clear-Com DX410 System Features

• High definition 7kHz wideband audio technology
• Expands audio range and increases intelligibility in high RF environments
• Uses a frequency hopping system (FHSS), and offers spectrum-friendly and Adaptive Frequency Hopping (AFH) modes, to avoid interference with Wi-Fi
• Operating in the 2.4GHz band means that DX410 does not require radio licensing for use
• Option for combining 2-wire and 4-wire audio together on A or B channels, allowing everyone on both circuits to intercommunicate

• DX410 wideband 7 kHz, 2-channel base station with 2 antennas
• 115-230 VAC power supply, includes power cord1
• BP410 belt packs4
• AC50 batteries8
• CC-15-MD4 single-ear noise-canceling headsets5
• AC50 battery charger1
• 110-240 VAC power supply with US adapter plug1

• BS410 Base Station Specifications
  • Audio
    • Channels: 2 audio channels
    • Capacity: Up to 15 BP410 and/or WH410 per base station
    • Full-Duplex: Yes. Single-channel = 4 in simultaneous full-duplex. Dual-channel = 3 in simultaneous full-duplex.
    • Radio Frequency Range: 2400 – 2483.5 MHz
    • Audio Frequency: 200 Hz – 7kHz
    • 4-wire I/O: RJ45, 600 Ohms balanced, level adjustable, simultaneous operation with 2-wire
    • 2-wire I/O: XLR-3M, XLR-3F, externally-switchable RTS or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB attenuation, typical
    • Aux Input: XLR-3F with ¼” (6.35mm) combo jack, 600 Ohms balanced, level adjustable
    • Aux Output: XLR-3M, 600 Ohms balanced, level adjustable
    • Headset Connector: 4-pin mini-DIN, Electret microphone
    • Headset Output: 200mW into 32 Ohms
    • Antenna Type: External ½-wave dipole (R-TNC connector), RX/TX horizontal/vertical diversity
    • System Distortion: <2%
    • Communication Security: dual-slot diversity
  • Transmitter
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • Transmit Power: 100mW burst
    • Modulation Type: Gaussian filtered FSK, TDMA
    • Frequency Stability: 13 ppm
    • Harmonics/Spurious: Exceeds FCC and ETSI specifications over temperature
  • Receiver
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • RF Sensitivity: <-90dBm w 10-3 BER
    • Frequency Stability: 13 ppm
    • Distortion: <2%
  • Power Requirements: 100 – 240V AC, 50 – 60Hz or 12 – 14V DC
  • Environmental Temperature: +32° – +122°F (0° – +50°C)
  • Dimensions (HxWxD): 1.75x19x17.13" (44x483x435mm)
  • Weight: 9lbs (4.1kg)
• BP410 Beltpack Specifications
  • Audio
    • Channels: 2 audio channels
    • Frequency Range: 2400MHz – 2483.5MHz
    • Frequency Response: 200Hz – 7kHz
    • Antenna: Internal, horizontal/vertical diversity
    • Headset Connector: 4-pin, mini-DIN
    • Microphone: Electret
    • Headset Output: 160mW into 32 Ohms
    • System Distortion: <2%
    • Controls: Power, Volume-Up, Volume-Down, A, B, ISO
    • Indicators: Dual-color LED (red/green)
    • Battery Requirements: 3.6V lithium-ion
    • Battery Life: Up to 12 hours
  • Antenna: Internal, Horizontal/Vertical diversity
  • Transmitter
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • Transmit Power: 100mW burst
    • Modes: Momentary or Latch
    • Type: Gaussian filtered FSK, TDMA
    • Frequency Stability: 13 ppm
    • Harmonics/Spurious: Exceeds FCC and ETSI specifications
  • Receiver
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • RF Sensitivity: <-90dBm w 10-3 BER
    • Frequency Stability: 13 ppm
    • Distortion: <2%
  • Environmental: 32° to +122°F (0° to +50°C)
  • Dimensions (HxWxD): 2.25x4.5x1" (57.2x114.3x25.4mm)
  • Weight: 7.4oz (0.21kg) including battery and pouch
• WH410 Headset Specifications
  • Audio
    • Channels: 2 audio channels
    • Frequency Range: 2400MHz – 2483.5MHz
    • Frequency Response: 200Hz – 7 kHz
    • Antenna: Internal, horizontal/vertical diversity
    • Headset Connector: 4-pin, mini-DIN
    • Microphone: Electret
    • Headset Output: 160mW into 32 Ohms
    • System Distortion: <2%
    • Controls: Power, Volume-Up, Volume-Down, A, B, ISO
    • Indicators: Dual-color LED (red/green)
    • Battery Requirements: 3.6V lithium-ion
    • Battery Life: Up to 12 hours
  • Antenna: Internal
  • Transmitter
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • Transmit Power: 100mW burst
    • Modes: Momentary or Latch
    • Type: Gaussian filtered FSK, TDMA
    • Frequency Stability: 13 ppm
    • Harmonics/Spurious: Exceeds FCC and ETSI specifications
  • Receiver
    • Type: Frequency Hopping, Spread Spectrum (FHSS)
    • RF Sensitivity: <-90dBm w 10-3 BER
    • Frequency Stability: 13 ppm
    • Distortion: <2%
  • Environmental: 32° to +122°F (0° to +50°C)
  • Weight: 3.5oz (0.10kg) including battery
