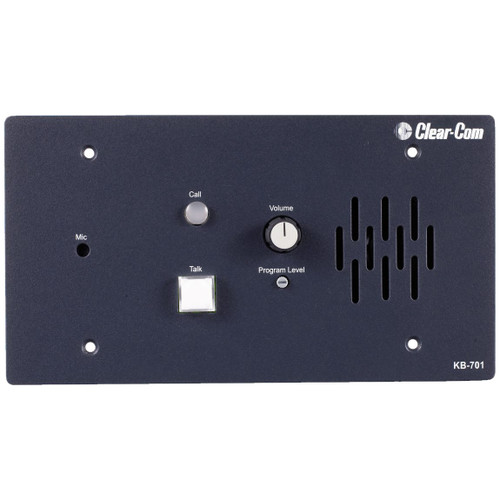

Clear-Com KB-701 Encore Remote Speaker Station

The KB-701 remote speaker station connects to a single channel of party-line intercom, and operates in half-duplex mode, similar to a walkie-talkie. It features both an integral speaker and a pushmount electret microphone with mic limiter and a push-to-talk button. The station may be programmed via two internal dip switches to operate in four different modes, activated by other stations within the intercom system. The different operating modes are activated using the call signaling function of another station, which allows for individual control of the speaker and microphone.

Clear-Com KB-701 Features

• Half-duplex, push-to-talk functionality
• Four modes of operation that are internally programmable
• Microprocessor controlled logic and switching
• Balanced local program input with separate level control
• Visual and audible call signaling
• Optional 4-wire daughter board for flexibility
• Wall or console mountable, or optional V-Box for portable or desktop use
• Built-in speaker

• KB-701 Encore Remote Speaker Station1

• Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K
• Speaker Output
  • Load Impedance: >= 4
  • Max Output Level before 1% Distortion: 20dBu ± 2dBu
• Partyline Output
  • O Noise: < -74dBu
  • Output Impedance: >10K
• Partyline Input
  • Crosstalk: < -60dB
  • Max level before Clipping: >= 12dBu
• Frequency Response
  • Program Input – Speaker Out: 200 – 18kHz ± 3dB
  • Partyline- Speaker Out: 200 – 18kHz ± 3dB
• Max Distortion
  • Program Input – Speaker Out: <= 0.5%
  • Partyline- Speaker Out: <= 0.5%
• Noise
  • Program Input – Speaker Out: < -60dBu
  • Partyline- Speaker Out: < -50dBu
• Max Gain
  • Program Input – Speaker Out: >= 24dB
  • Partyline- Speaker Out: >= 40dB
• Power
  • Input Voltage Range: 20-30V DC
  • Input Current (Idle): <= 90mA
  • Input Current (Max): <=110mA
• Internal Connectors and Jumpers
  • Intercom: Line Five terminal connector
  • Program Input: Three terminal connector
  • Option Switches: Three DIP switches
• Environmental32 – 122o F (0 – 50o C)
• Dimensions (HxWxD)4.5x8.5x1.75" (114x210x44mm)
• Weight1.04lbs (0.47kg)
