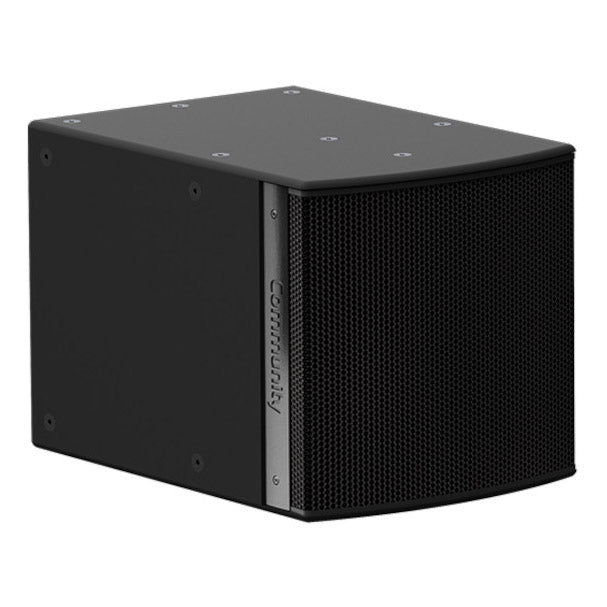

The Community IS6-118 18-Inch Passive Subwoofer provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.
The compact, low-profile single driver I SERIES subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I SERIES full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.
The IS6-118 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimized ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s size.
Community IS6-118 Features
- 700W continuous power handling (2800W peak)
- High sensitivity design minimizes power compression losses and required amplifier size
- Matched-size enclosure and aligned suspension point for seamless flown array integration
- Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension
- Also available in a weather-resistant PolyGlas™ enclosure.
- IS6-118 18" Medium Power Subwoofer1
- Operating ModeSingle Amp
- Operating EnvironmentIndoor or Weather-Resistant Outdoor
- Operating Range[2] 32 Hz to 145 Hz
- Transducers 1 x 18" (457mm) double-treated cone with 4" (102mm) inner/outer wound voice coil, ferrite construction
- Continuous Power Handling [3] @ Nominal ImpedanceSingle Amp: 75V; 700W @ 4 ohms (28000W peak)
- Nominal Sensitivity[4]
- Half Space: 104 dB @ 1W; 104 dB @ 2.83V
- Whole Space: 98 dB @ 1W; 98 dB @ 2.83V
- Nominal Maximum SPL[5]
- Half Space Peak: 138 dB; Continuous: 132 dB
- Whole Space Peak: 132 dB; Continuous: 126 dB
- Equalized Sensitivity[6]
- Half Space: 99 dB @ 1W; 99 dB @ 2.83V
- Whole Space: 93 dB @ 1W; 93 dB @ 2.83V
- Equalized Maximum SPL[7]
- Half Space Peak: 133 dB; Continuous: 127 dB
- Whole Space Peak: 127 dB; Continuous: 121 dB
- Recommended AmplifiersSingle Amp: 700W - 14000W @ 4 ohms, (75V - 106V)
- Physical
- Input Connection: (2) Screw terminal blocks (4-position)
- Mounting Points: (24) M10 threaded rigging points Indoor; (22 in Outdoor model)
- Environmental: Outdoor: IP55W per IEC 60529 , MIL-STD-810G
- Weight: 97 lbs (44 kg) subwoofer only
- Dimensions (HxWxD) 19.8x22.1x28.89" (503x561x734 mm)
