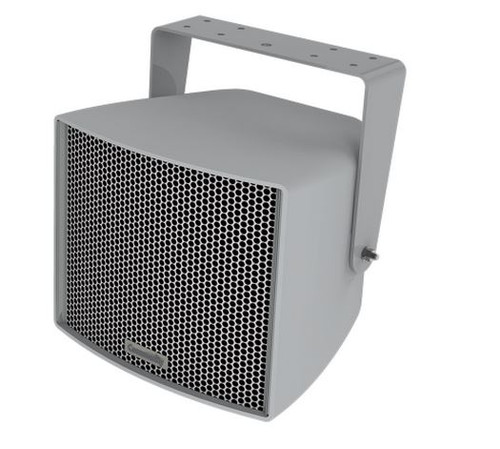

Community R.35COAX 10-Inch Weather-Resistant Speaker

The R.35COAX from Community is a 10-inch, weather-resistant speaker.

The compact R.15 and R.35 models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. The R.15COAX and R.35COAX use identical 1.25-inch exit HF compression drivers, featuring Community’s exclusive Tru-Phase™ phase plug and Carbon Ring Cone Technology™. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction, while identical voicing ensures a uniform listening experience.

Community R.35COAX Features

• Improved music playback
• Additional coverage patterns
• Higher output in attractive paintable enclosures
• 1.25-inch exit HF compression drivers
• Tru-Phase™ phase plug and Carbon Ring Cone Technology™
• Front-loaded LF drivers in highly reinforced enclosures for natural, non-resonant low frequency reproduction
• Identical voicing ensures a uniform listening experience

• R.35COAX 10-Inch Ultra-Compact 2-Way Speaker1
• Zinc-rich epoxy dual-layer powder-coated yoke1
• Integral safety cable mounting point1

• Operating Mode Passive, Selectable Low Impedance or 70V/100V
• Operating Environment Indoor or Weather-Resistant Outdoor
• Operating Range[2]70 Hz to 16 kHz
• Nominal Beamwidth (HxV) 90° x 90°
• Transducers
  • LF 1 x 10" (254mm) Carbon ring cone with hydrophobic treatment, 2" (51mm) Voice Coil
  • HF 1 x 1.25" (32mm) exit compression
• Continuous Power Handling [3] @ Nominal Impedance Passive: 40V 200W @ 8 Ohms (800W peak)
• Autoformer Taps
  • 70V: 200W,100W, 50W, 25W
  • 100V: 200W,100W, 50W
• Nominal Sensitivity[4]
  • Passive
  • Music
    • @ 1W: 97 dB
    • @ 2.83V: 97 dB
  • Voice
    • @ 1W: 99 dB
    • @ 2.83V: 99 dB
• Nominal Maximum SPL [5] (Whole Space)
  • Passive
  • Music
    • Peak: 126 dB
    • Continuous: 120 dB
  • Voice
    • Peak: 128 dB
    • Continuous: 122 dB
• Equalized Sensitivity[6]
  • System
  • Music
    • @ 1W: 97 dB
    • @ 2.83V: 97 dB
• Equalized Maximum SPL[7]
  • System
  • Music
    • Peak: 126 dB
    • Continuous: 120 dB
• Required AccessoriesHigh Pass Filter - 70 Hz, 24 dB /octave, Digital Signal Processor
• Recommended Amplifiers Passive 200W - 400W @ 8 Ohms, (40V - 57V)
• Physical
  • Input Connection: NL4 Speakon-type connector (low impedance only), and 7-position terminal strip for low impedance or constant voltage operation
  • Controls: Music / Voice switch, 70V/100V operation jumper
  • Mounting Points: Two (2) M8 rigging points
  • Environmental
    • IP55W per IEC 529, designed to MIL-STD-810G
    • Color-matched ABS plastic input panel weather cover with 13.5mm ID gland nut installed in .82" knockout
  • Dimensions (HxWxD): 11x13x13.5" (279x330x343 mm)
  • Weight: 26 lbs (11.8 kg) with included yoke
