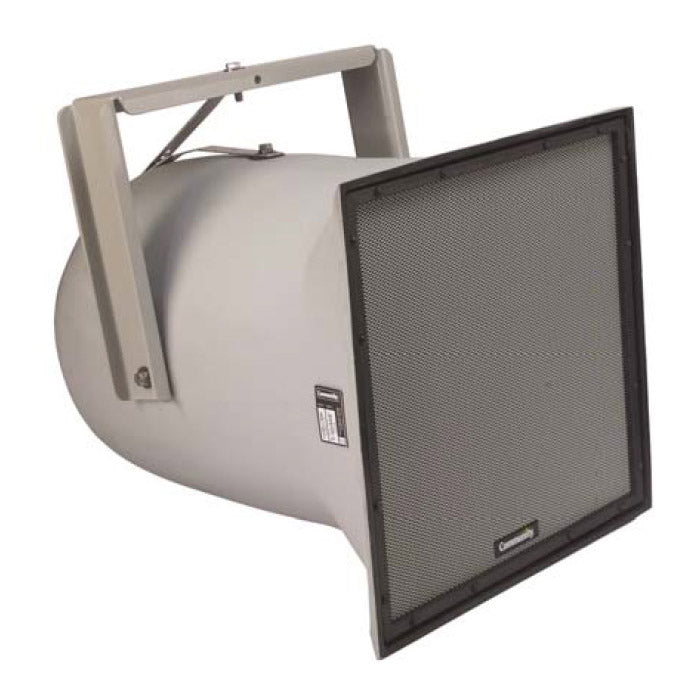

Community R2-694Z Dual 12-Inch Weather-Resistant Speaker

The R2-694Z full-range loudspeaker system is engineered to provide quality, long throw full-range sound projection in a variety of outdoor and indoor applications. Its wide, smooth frequency response and high efficiency ensures high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion.

The R2-694Z is an all horn loaded triaxial design using precision waveguides manufactured by Community of hand-laminated fiberglass. The outer enclosure forms a double wall construction with the internal bass horn, providing a completely weather-sealed chamber for the LF drivers. The mid/high frequency horn assembly is mounted in the mouth of the bass horn. A high quality passive crossover with dynamic driver protection is included. The result is a loudspeaker system that is extremely strong, non-resonant, weather-resistant, and easy to install.

Applications

• Athletic fields (football, soccer, baseball, tennis)
• Small arenas, athletic field houses
• Theme and amusement parks
• Fairgrounds, rodeos, air shows
• Racing tracks, skating rinks, swimming pools
• Convention centers, factories, warehouses
• Cruise ships
• Portable sound systems
• Electronic carillons

Community R2-694Z Features

• Weather resistant construction
• Weather-treated drivers and crossovers
• Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
• Application-specific coverage pattern
• High-efficiency horn loading
• High-fidelity, full-range reproduction of music and speech
• Included weather-resistant mounting yoke for easy mounting and aiming
• Five-year product warranty / Fifteen-year enclosure warranty

• R2-694Z dual 12-inch weather-resistant speaker1
• Mounting yoke1

• Operating Modepassive
• Operating Environmentindoor / continuous outdoor direct exposure
• Operating Range270Hz to 16.5 kHz
• Nominal Beamwidth (HxV)60°-90°x 40°
• Transducers
  • LF: 2 x 12" (305mm) weather-treated, Ferrofluid-cooled
  • MF: 1 x M200 2" exit, non-metallic diaphragm, Ferrofluid-cooled
  • HF: 1 x 1" exit, titanium diaphragm
• Continuous Power Handling 3 @ Nominal Impedance
  • 40V
  • 400W @ 4 ohms (1600W peak)
• Nominal Sensitivity 4
  • @1W 104dB
  • @2.83 V 107 dB
• Nominal Max SPL 5 (whole space)
  • Peak 136 dB
  • Continuous 130 dB
• Equialized Sensitivity 6
  • @ 1W 104dB
  • @ 2.83V 107dB
• Equalized Max SPL 7
  • Peak 136 dB
  • Continuous 130 dB
• Recommended Amplifiers400W - 800W @ 4 ohms, (40V - 57V)
• Input Connection12' (3.6m) SJOW #16 cable
• Mounting Points(5) 1/2"-13 threaded rigging points, Steel zinc-rich epoxy dual-layer powder-coated mounting yoke; Aluminum aiming straps to secure angle
• EnvironmentalIP55 per IEC 60529, conforms with MIL-STD-810G
• Dimensions (HxWxD)24.75" x 24.75" x 30.75"
• Weight73 pounds (loudspeaker only) 96 pounds (loudspeaker and yoke)
• Notes
  • 2: OPERATING RANGE The frequency range in which the on-axis processed response remains within 10dB of the average SPL.
  • 3: CONTINUOUS POWER HANDLING Maximum continuous input voltage (and the equivalent power rating, in watts, at the stated nominal impedance) that the system can withstand, without damage, for a period of 2 hours using an EIA-426-B defined spectrum; with recommended signal processing and protection filters.
  • 4: NOMINAL SENSITIVITY Averaged SPL over the operating range with an input voltage that would produce 1 Watt at the nominal impedance and the averaged SPL over the operating range with a fixed input voltage of 2.83V, respectively; swept sine wave axial measurements with no external processing applied in whole space, except where indicated.
  • 5: NOMINAL MAXIMUM SPL Calculated based on nominal / peak power handling, respectively, and nominal sensitivity; exclusive of power compression.
  • 6: EQUALIZED SENSITIVITY The respective SPL levels produced when an EIA-426-B signal is applied to the equalized loudspeaker system at a level which produces a total power of 1 Watt, in sum, to the loudspeaker subsections and also at a level which produces a total voltage, in sum, of 2.83V to the loudspeaker subsections, respectively; each referenced to a distance of 1 meter
  • 7: EQUALIZED MAXIMUM SPL The SPL produced when an EIA-426-B signal is applied to the equalized loudspeaker system, at a level which drives at least one subsection to its rated continuous input voltage limit, referenced to a distance of 1 meter. The peak SPL represents the 2:1 (6dB) crest factor of the EIA-426-B test signal.
