The V2-28 is a two-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. This versatile unit is ideal for distributed systems such as those found in cafés, restaurants, shopping centers and airports. With its powerful dual cone drivers, the V2-28 provides additional low frequency and midrange output over that of its sister product, the V2-8. When paired with a subwoofer such as the V2-212S, a V2-28 system will produce high-fidelity, broad spectrum sound that belies its modest size. In addition to distributed systems, the V2-28 is an excellent choice for ancillary delay applications. When used to augment a front-of-house system in venues such as auditoria, theaters and houses of worship, delay loudspeakers can significantly even out the difference in sound pressure level from the front of the room to the rear of the room. Units may be positioned for underbalcony fill, overbalcony fill, or simply placed towards the rear of the seating areas. By deploying V2-28 loudspeakers in such a manner, the system designer will have far greater control over relative levels and relative tonal response when commissioning and equalizing the installation.
The V2-28 may be mounted to a wall or ceiling surface using its included yoke bracket, suspended from its M6 threaded rigging points, or installed using a third-party mounting device. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.
Community V2-28T Features
- High fidelity, broad spectrum sound
- Rotatable horn for optimal dispersion
- Carbon Ring Cone Technology and DYNA-TECH™ protection circuitry
- Ideal for distributed systems or ancillary delay and fill
- Frequency shaded woofers for smooth vertical pattern control

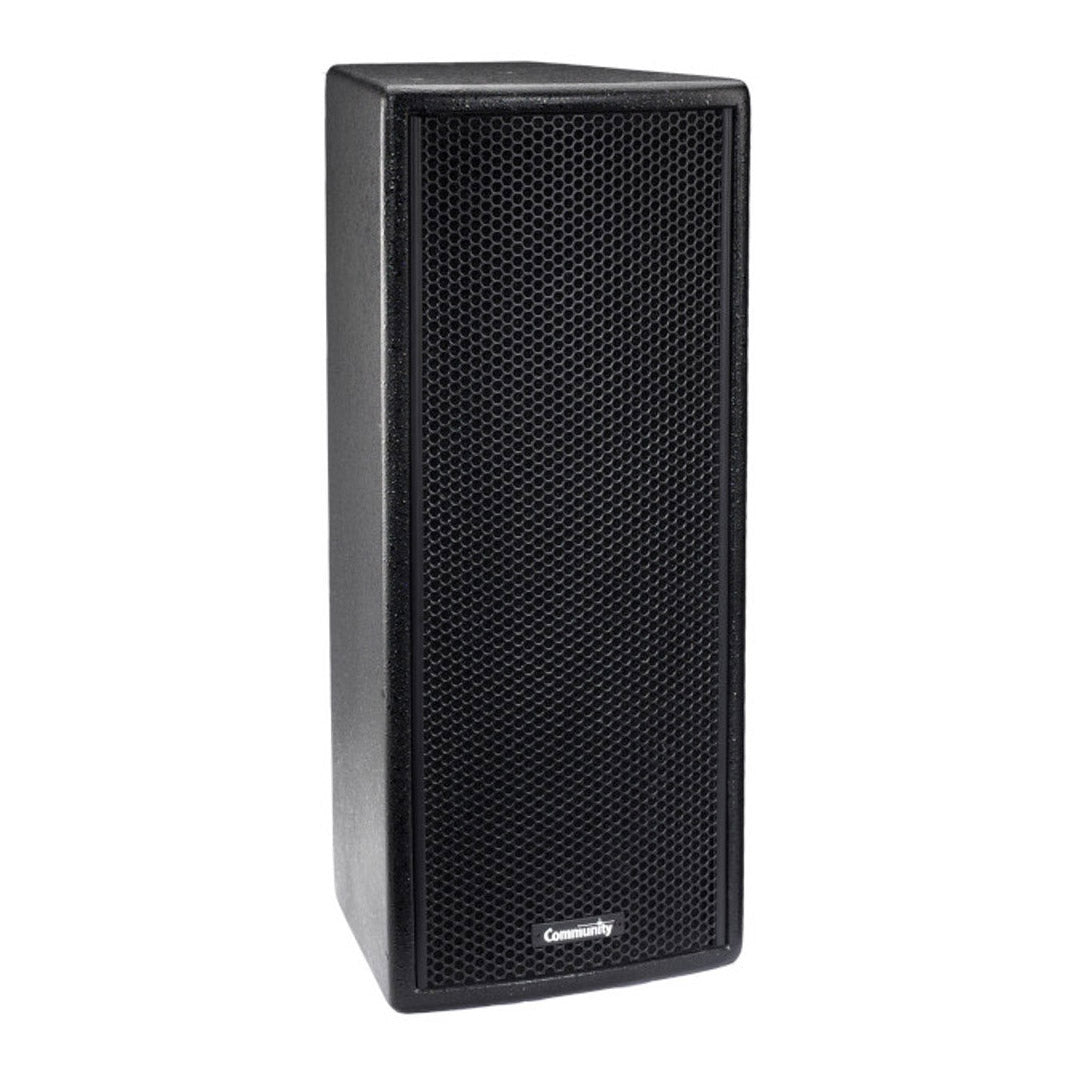

- V2-28T 2x8-Inch Surface Mount Install Speaker1
- Yoke-style mounting bracket1
- Loudspeaker TypeCompact two-way, full-range, trapezoidal, vented bass, frequency shaded LF, user rotatable horn
- Operating Range60 Hz to 18 kHz (-10 dB)
- Frequency Response90 Hz to 16 kHz (±3 dB)
- Max Input Ratings300W continuous, 750W program 34.6 volts RMS, 69.2 volts momentary peak
- Sensitivity (1W/1m)94 dB (100 Hz to 12.5 kHz) free space
- Maximum Output119 dB SPL / 125 dB SPL (peak)
- Nominal Impedance4 ohms
- Minimum Impedance3.4 ohms @ 200 Hz
- Nominal –6dB Beamwidth90° H x 70° V (in vertical position)
- Crossover Frequency1.3 kHz
- Recommended Signal Processing70 Hz, 24 dB/octave Butterworth high pass filter
- Drivers:
- LF 2 x 8-inch cone
- HF 1 x 1-inch
- Driver ProtectionDYNA-TECH protection circuitry
- Input ConnectionNL4-compatible locking connector with terminal strip in parallel
- ControlsNone
- Enclosure:
- Trapezoidal (22.5° included angle)
- 18mm, 11-ply cross-laminated birch
- Mounting/Rigging Provisions:
- 9 x M6 threaded rigging fittings
- 4 x M8 for third-party suspension products
- FinishCatalyzed polyester two-part paint, black or white
- GrillePowder coated steel, black or white finish
- Required AccessoriesNone
- Optional Accessories:
- CMKIT ceiling mount kit
- VB-TILT tilting bracket
- VB-VY28 vertical yoke bracket
- M6EYBLTKIT 6mm eyebolt kit
- Dimensions (HxWxD)25.5x11.3x11.7" (649x287x298mm)
- Weight
- Incl. bracket: 36.7 lbs (16.7 kg)
- With autoformer: 38.7 lbs (17.7 kg)
- Model Options:
- V2-28B (low impedance, black finish)
- V2-28W (low impedance, white finish)
- V2-28BT (built-in autofomer for 70V100V applications, black finish)
- V2-28WT (built-in autofomer for 70V100V applications, white finish)
- NOTES:
- 1. Sensitivity: Free field pink noise measurement at 6ft (1.8m) at 10% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
- 2. Watts: All wattage figures are calculated using the rated nominal impedance.
