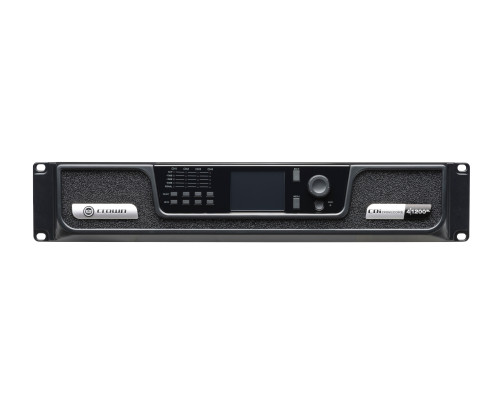

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from Crown's flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Crown CDi 4|1200 Features
- DriveCore technology
- Network control and monitoring
- DSP capabilities include input router, input and output delay, input and output parametric EQ, crossover, level MAX limiter
- Direct drive 70/100Vrms output
- GPIO/aux port
- Pre-loaded speaker tunings
- CDi 4|1200 power amplifier1
- Sensitivity0.7V RMS (for full rated power at 8 ohms)
- Rated power output1200W (per channel @ 4 ohms)
- Analog input signal to noise ratio> 104dB (ref rated power, 100V, 20Hz - 20kHz, at 8 ohms)
- THD0.35% (full rated power, 20 Hz - 20 kHz)
- Damping factor> 1000 (20Hz to 100Hz)
- Frequency response+/-0.25dB (8Ω, 20 Hz - 20 kHz)
- Crosstalk> 80dB (below rated power, 20 Hz to 1 kHz)
- Input impedance (nominal)20 kΩ balanced, 10 kΩ unblanced
- Power supply connector20A IEC connector, 100 – 240V
- Dimensions19" x 3.5" x 14.71"
- Weight20.1 pounds (9.12 kg)
More about Crown's CDi Power Amplifiers
Rugged, lightweight, and integrator-friendly, the CDi series of power amplifiers offer feature-packed performance at a competitive cost. CDi’s streamlined functionality makes these models great for myriad large-scale installations such as cinemas, houses of worship, hotels, cruise lines, and more.
Set up your sound via CDi’s intuitive front-panel LCD screen. Features include network control/monitoring, switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection, and support for driving up to 100Vrms speaker loads without requiring a transformer. A high-level onboard DSP enables loudspeaker signal processing, while pre-loaded JBL speaker tunings make installations quicker and easier. BLU link model options add the ability to send and receive channels over HARMAN's digital audio BUS.
