DAS Audio ALTEA-408A Powered Portable PA Speaker System

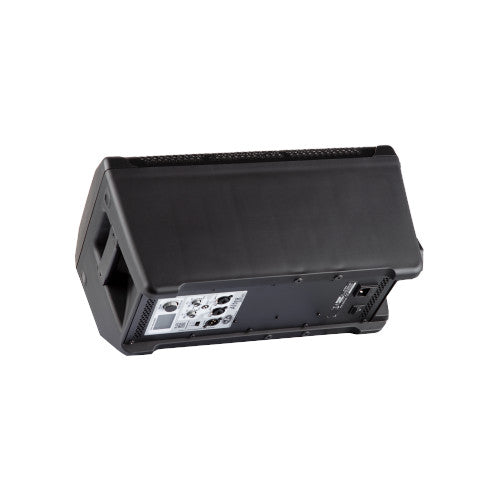

The ALTEA-408A is a powered portable PA system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.

The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.

DAS Audio ALTEA-408A Features

• Lightweight multi-purpose system with monitor position
• Ultra lightweight Class D amplifier with SMPS
• User definable 24-bit DSP with LCD screen
• Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
• Stackable 3-band EQ
• Standby Mode
• Rigging points

• ALTEA-408A Powered Portable PA Speaker System1

• Performance
  • Frequency Range (-10 dB): 70 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 90º
  • Vertical Coverage: 90º
  • Maximum Peak SPL at 1 m: 123 dB
• Electronics and Connectors
  • Nominal Amplifier Power (continuous): 400W
  • Nominal Amplifier Power (peak): 800W
  • Input Type: Balanced
  • Input Impeadance: 20 kohms
  • Input Sensitivity: 1.95 V (+8 dBu)
  • Audio Signal Input Connector: 2 x Female XLR
  • AUX Input: 1 x 3.5 mm Mini Jack
  • Audio Signal Loop Thru Connector: 1 x Male XLR
  • Control: DAScontrol™
  • Current Draw: 230V / 115V, 0.8 A/1.6 A
• Enclosure
  • Enclosure Construction: Polypropylene
  • Enclosure Geometry: Trapezoidal
  • Rigging: M8 Rigging Points
  • Finish: Textured
  • Color: Black
  • Dimensions (HxWxD): 18.9x11x10.2" (480x280x260mm)
  • Net Weight: 209 lbs (9.5kg)
• Components
  • LF Driver: 8GV
  • HF Driver: M-32
• Shipping
  • Carton Dimensions (HxWxD): 21.6x13.8x13.4" (550x350x340mm)
  • Shipping Weight: 28.6 lbs (13 kg)
