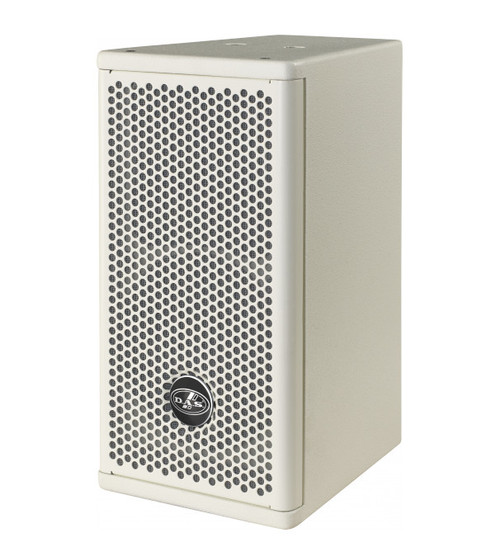

DAS Audio ARTEC-310 10-Inch Passive Surface Mount Speaker

The ARTEC-310.64 is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguideprovides 60° x 40° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount.

DAS Audio ARTEC-310 Features

• 1 x 10MI low frequency loudspeaker, 2.5” VCD
• 1 x M-34 compression driver
• VESA75/VESA100 standard threaded mounting points
• Rotatable 60º x 40º horns
• Vertical or horizontal positioning
• AXU-A310 U-Bracket included

• ARTEC-310 10" 2-Way Compact Passive Installation Speaker1
• AXU-A310 U-Bracket1

• Performance
  • Frequency Range (-10 dB): 50 Hz – 20 kHz
  • Horizontal Coverage (-6 dB): 60º
  • Vertical Coverage: 40º
  • Nominal Impedance: 8 ohms
  • RMS Power Handling: 250 W
  • Peak Power Handling: 1000 W
  • On-axis Sensitivity 1W/1 m: 96 dB SPL
  • Maximum Peak SPL at 1 m: 126 dB
  • Recommended Amplifier: PA-900
  • Recommended Processor: DSP-226
• Connectors
  • Audio Input Connector: Covered Barrier Strip Terminals
  • Audio Output Connector: Covered Barrier Strip Terminals
• Enclosure
  • Enclosure Construction: Birch Plywood
  • Enclosure Geometry: Trapezoidal
  • Rigging: M10 Rigging Points
  • Finish: ISO-flex Paint
  • Color: Black
  • Depth: 345 mm (13,6 in)
  • Dimensions (HxWxD): 24x11.6x13.6" (610x295x345 mm)
  • Net Weight: 34.2 lbs (15,5 kg)
• Components
  • LF Driver: 10MI
  • HF Driver: M-34
  • Horn/Waveguide: BC-614
• Shipping
  • Carton Dimensions (HxWxD): 27.8x15.4x16.4" (705x391x416 mm)
  • Shipping Weight: 43 lbs (19,5 kg)
