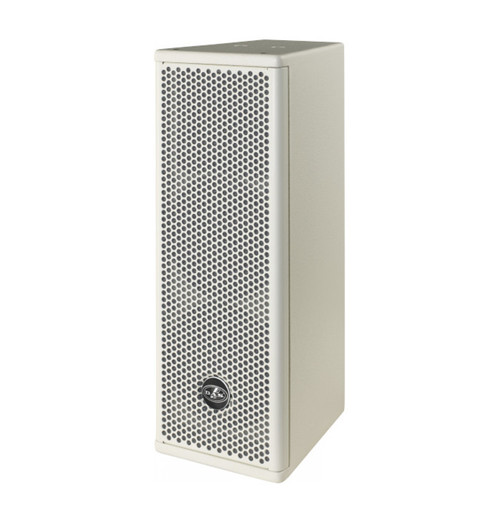

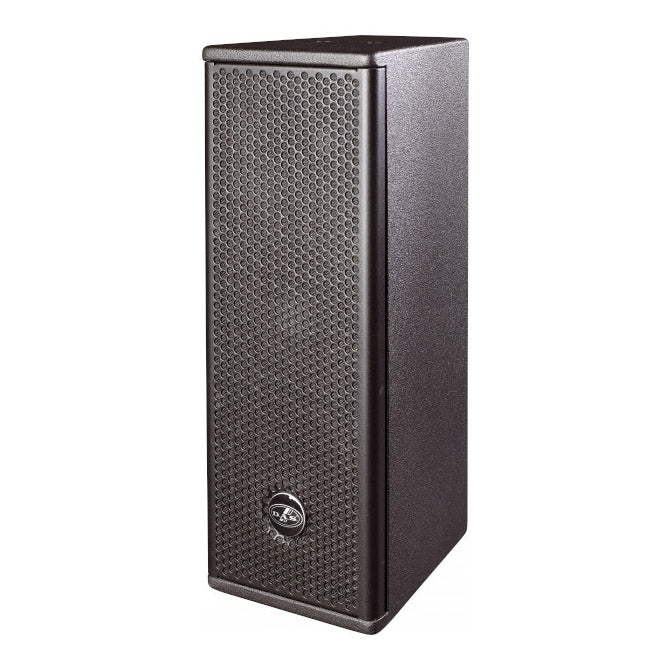

The ARTEC-526A incorporates twin 6” loudspeakers for low frequency reproduction. The 720 W peak power of the Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. The DAS 6P loudspeakers provide accurate low frequency reproduction. High frequencies are handled by the M-34 compression driver with 1″ exit offering excellent HF performance. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.
DAS Audio ARTEC-526A Features
- Ultra lightweight Class D amplifier
- Switch-mode power supply
- Horizontal or vertical position
- Pole mountable
- ARTEC-526A 2x6" 2-way compact powered installation speaker1
- Frequency Range (-10dB)60Hz - 20,000Hz
- Horizontal Coverage (-6dB)80°
- Vertical Coverage80°
- Max. Peak SPL at 1m125dB
- Nominal Amplifier Power
- LF Continuous: 360W
- LF Peak: 720W
- HF Continuous: 180W
- HF Peak: 360W
- Input Typebalanced
- Input Impedance20 kΩ
- Input Sensitivity1.95 V (+8 dBu)
- Audio Signal Input Connector1 x female XLR
- Audio Signal Loop Thru Connector1 x male XLR
- Current Draw 230 V / 115 V-/2.4 A
- Components
- LF Driver: 6P4
- HF Driver: M-34
- Horn/Waveguide: BC-88
- Enclosure
- Construction: birch plywood
- Geometry: trapezoidal
- Rigging: M10 rigging points
- Finish: ISO-flex paint
- Dimensions (HxWxD): 21.7" x 7.7" x 10.2"
- Weight: 24.3 pounds
