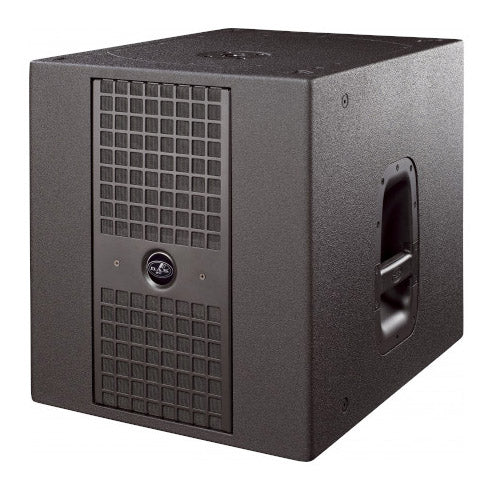

The Artec S15 band-pass bass system incorporates a 15SX low frequency transducer with a 4 ” voice coil. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The Artec S15 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the Artec S15 and two bar handles makes moving easy.
DAS Audio ARTEC-S15 Features
- Bassreflex subwoofer system
- 15" low frequency transducer
- Precise and powerful bass reproduction
- Top located pole mount socket
- ARTEC-S15 15" band-pass passive installation subwoofer1
- Frequency Range (-10dB)45Hz - 138Hz
- Nominal Impedance8Ω
- RMS Power Handling800W
- Peak Power Handling3200W
- On-Axis Sensitivity 1W/1m99dB SPL
- Max. Peak SPL at 1m137dB
- Recommended Amplifier
- DX-80-230
- DX-80-115
- Recommended ProcessorDSP-2040
- Connectors
- Audio Input Connector: 1 x speakON NL4
- Audio Output Connector: 1 x speakON NL4
- LF Driver15LXN
- Enclosure
- Construction: birch plywood
- Geometry: rectangular
- Rigging: M10 rigging points
- Finish: ISO-flex paint
- Dimensions (HxWxD): 20.3" x 18.3" x 23"
- Weight: 70.6 pounds
