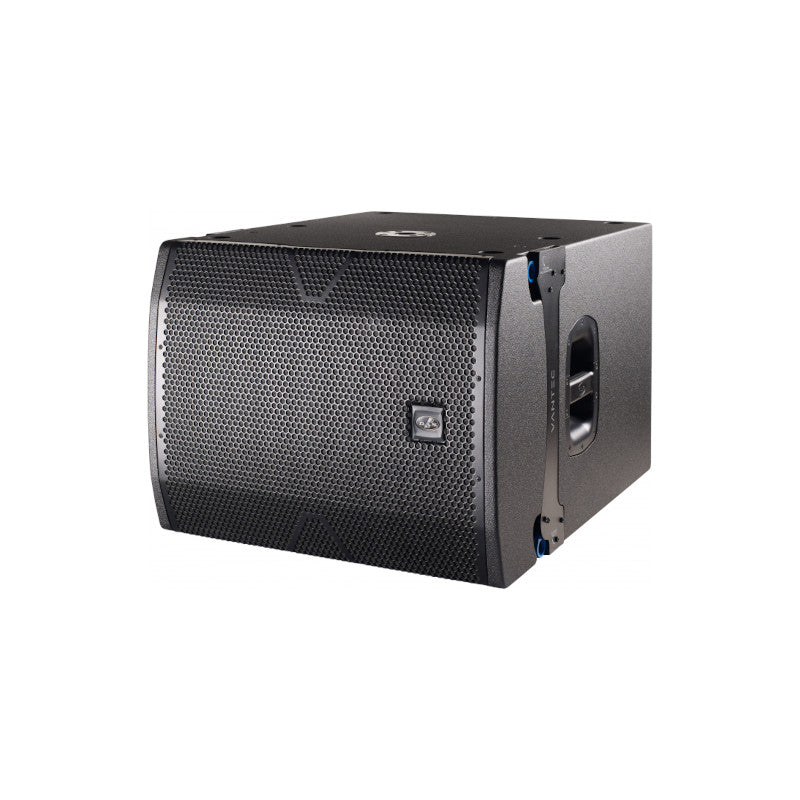

DAS Audio VANTEC-118A Powered Subwoofer

The VANTEC-118A is an active front loaded bass system which has been designed specifically for use with the VANTEC-20A curved source line array. Compact in size, the unit can be flown in arrays or linked together in ground stacks thanks to the DAS Click-Lock™ rigging system which is compatible with the VANTEC-20A.

The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique “Deep-Loud” EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the “Deep” setting or a louder hard hitting performance in the “Loud” setting. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The VANTEC-118A is phase response coherent with the other Vantec Series active tops such as the VANTEC-20A offering precise alignment without the need of an external DSP.

DAS Audio VANTEC-118A Features

• Active front-loaded subwoofer system
• 1 x 18 DAS 18FW loudspeaker
• Class D amplifier 2000 Wpeak
• Digital signal processing (DSP)
• Unique “Deep-Loud” bass EQ switch
• Variable low-pass filter 80 Hz-125 Hz
• LED ON/OFF switch on backplate
• Rigging compatible with VANTEC-20A
• Top located pole mount socket

• VANTEC-118A powered subwoofer1

• Frequency range (-10dB)35Hz - 125Hz
• Max SPL (at 1m)134dB
• Nominal amplifier power
  • Continuous: 1000W
  • Peak: 2000W
• Input typebalanced
• Input impedance20k ohms
• Input sensitivity3V (+12dBu)
• Audio signal input connector2x female XLR
• Audio signal loop thru connector2x male XLR
• AC output connectorpowerCON NAC3FCB
• Current draw
  • 115V: 2.2 A/4.4 A
  • 230V: a:1:{i:0;s:5:”2.2 A”;}
• LF driver18FW
• Constructionbirch plywood, black ISO-flex painted
• RiggingM10 rigging points
• Dimensions (HxWxD)19.3" x 24.2" x 30.9"
• Weight97 pounds (44 kg)
