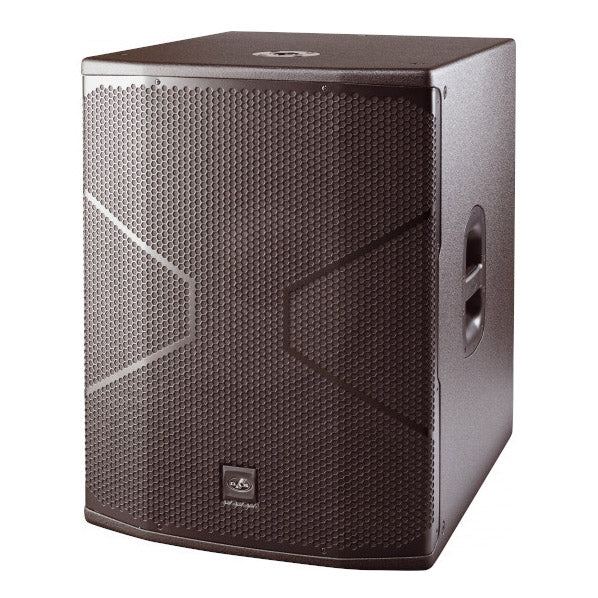

DAS Audio VANTEC-18A Powered Subwoofer

The VANTEC-18A is a powered subwoofer system designed to provide extended bass response for the Vantec-full range cabinets. A 2000W peak advanced Class D amplifier drives a DAS 18LX-long excursion loudspeaker incorporates a 4″ voice coil for high power handling and output.

The VANTEC-18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec-satellite systems. The variable crossover ranges from 80 Hz 125 Hz and can be defeated to offer stereo “loop thru” connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the VANTEC-18A to be used with satellite systems.

DAS Audio VANTEC-18A Features

• Powered subwoofer system
• High output 18LX loudspeaker
• Polarity switch (0º-180º)
• Filtered output defeat switch
• Variable 80-125 Hz low-pass filter
• Gain control
• Rigging points

• VANTEC-18A powered subwoofer1

• Frequency range (-10dB)
  • Loud: 35Hz - 125Hz
  • Deep: 30Hz - 125Hz
• Max SPL (at 1m)134dB
• Nominal amplifier power
  • Continuous: 1000W
  • Peak: 2000W
• Input typebalanced
• Input impedance20k ohms
• Input sensitivity3V (+12dBu)
• Audio signal input connector2x female XLR
• Audio signal loop thru connector2x male XLR
• AC output connectorpowerCON NAC3FCB
• Current draw
  • 115V: 1.5 A/3.0 A
  • 230V: a:1:{i:0;s:5:”1.5 A”;}
• LF driver18LX
• Constructionbirch plywood, black ISO-flex painted
• RiggingM10 rigging points
• Dimensions (HxWxD)28.3" x 21.5" x 25.8"
• Weight89.2 pounds (40.5 kg)
