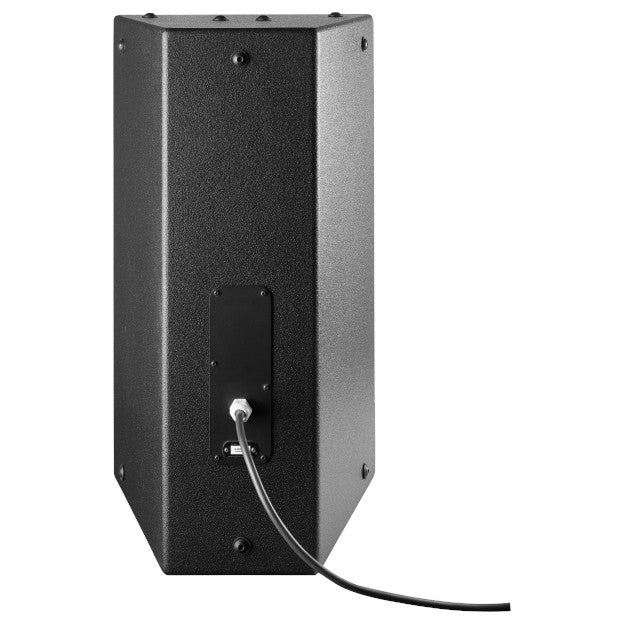

DAS Audio WR-151S-DX 15-Inch 800W Passive Compact Arrayable Subwoofer

The WR (weather resistant) series expands with a compact subwoofer designed to provide extended range for the WR series full-range cabinets. The WR-151SDX incorporates a single 800 Wrms 15″ loudspeaker. The WR-151SDX offers identical cabinet dimensions as the WR-6415DXW for easy combination in tight packed arrays. Threaded rigging points and optional mounting hardware are available.

The WR-151S offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.

DAS Audio WR-151S-DX Features

• Weather resistant subwoofer system
• Environmental performance to level IP54
• Easy arraying with the WR-6415CX/DX
• Threaded fixing points for mounting accessories
• DX finish (direct exposure)
• Stainless steel fixing points

• WR-151S-DX 15-Inch 800W Passive Compact Arrayable Subwoofer1

• Performance
  • Frequency Range (-10 dB): 45 Hz – 125 Hz
  • Nominal Impedance: Passive: 4 ohms Biamp: 8 ohms
  • RMS Power Handling: 800 W
  • Peak Power Handling: 3200 W
  • On-axis Sensitivity 1W/1 m: 98 dB SPL
  • Maximum Peak SPL at 1 m: 133 dB
  • Recommended Amplifier: PA-1500
  • Recommended Processor: DSP-226
• Connectors
  • Audio Input Connector: Covered Barrier Strip Terminals
  • Audio Output Connector: Covered Barrier Strip Terminals
• Enclosure
  • Enclosure Construction: Birch Plywood
  • Enclosure Geometry: Rectangular
  • Rigging: M10 Rigging Points
  • Finish: Fiberglass
  • Color: Black
  • IP Rating: IP54
  • Depth: 460 mm (18,1 in)
  • Dimensions (HxWxD): 30.5x18.3x18.1” (775x465x460mm)
  • Net Weight: 72.8 lbs (33kg)
• LF Driver 15SX
• Shipping
  • Carton Dimensions (HxWxD): 34.3x21.7x20.9” (870x550x530mm)
  • Shipping Weight: 88lbs (40kg)
