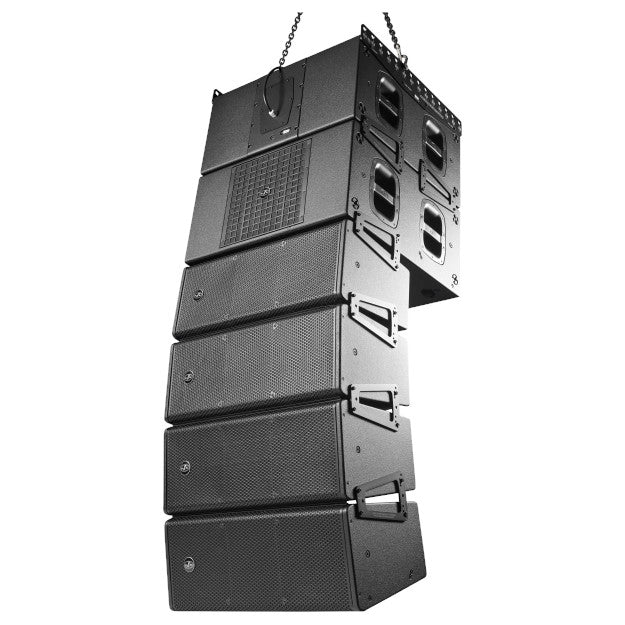

DAS Audio WR-320-DX 2x10-Inch 500W Passive Line Array Speaker
DAS Audio WR-320-DX 2x10-Inch 500W Passive Line Array Speaker

DAS Audio WR-320-DX 2x10-Inch 500W Passive Line Array Speaker

SoundPro Item: 115327
MPN: WR-320-DX
Call for Info

Add to Wish List

Account manager
Contact an Account Manager for your personalized price

The WR-320-DX has been designed for the outdoor installation market. The birch plywood cabinet construction offers a compact design which is available in black. The JP-320 are included. The DX finish protects the cabinets from the elements thanks to a fiberglass exterior augmenting their weather resistance when used in direct exposure situations.

DAS Audio WR-320-DX Features

  • Installation Line Array
  • 2 x 10MI low frequency loudspeakers, 2.5» VCD
  • 1 x DAS M-75 compression driver
  • DX finish (direct exposure rating)
  • Rigging systems for permanent installation. JP-320 plates included.
  • Rigging compatible with the WR-322S-DX
  • WR-320-DX 2x10-Inch 500W Passive Line Array Speaker1
  • Performance
    • Frequency Range (-10 dB) 60 Hz – 20 kHz
    • Horizontal Coverage (-6 dB) 90º
    • Vertical Coverage Splay Dependent
    • Nominal Impedance 16 ohms
    • RMS Power Handling 500 W
    • Peak Power Handling 2000 W
    • On-axis Sensitivity 1W/1 m 99 dB SPL
    • Maximum Peak SPL at 1 m 132 dB
    • Recommended Amplifier
      • INTEGRAL-A402
      • INTEGRAL-A404
      • INTEGRAL-A1002
      • INTEGRAL-A1004
      • INTEGRAL-A1602
      • INTEGRAL-A1604
      • INTEGRAL-MA1004
      • INTEGRAL-MA1604
    • Recommended Processor
      • INTEGRAL-M88
      • INTEGRAL-MA1604
      • INTEGRAL-MA1004
  • Connectors
    • Audio Input Connector: Covered Barrier Strip Terminals
    • Audio Output Connector: Covered Barrier Strip Terminals
  • Enclosure
    • Enclosure Construction: Birch Plywood
    • Enclosure Geometry: Trapezoidal
    • Rigging: Attachable Rigging System
    • Finish: Fiberglass
    • Color: Black
    • IP Rating: IP55
    • Depth: 14.4” (365mm)
    • Dimensions (HxWxD): 10.6x27.6x14.4” (270x700x365mm)
    • Net Weight: 71.6 lbs (32.5kg)
    • Components
      • LF Driver: 10MI
      • HF Driver: M-75N
      • Horn/Waveguide: BPS-90AR
  • Shipping Weight78.2lbs (35.5kg)
