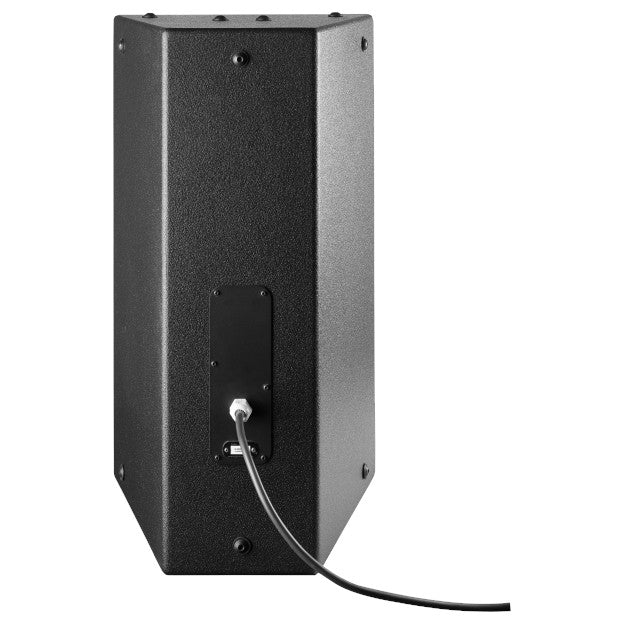

DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker
DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker

DAS Audio WR-6412-DX 400W Passive 12-Inch Line Array Speaker

SoundPro Item: 87633
MPN: WR-6412 DX-W
Call for Info

Add to Wish List

Account manager
Contact an Account Manager for your personalized price

The WR-6412-DX employs a 12AV woofer for low frequency reproduction. A M-75 compression driver with 3″ titanium diaphragm attached to a 60º x 40º rotatable horn provides exceptional high frequency reproduction. The rugged birch plywood cabinet construction is available in black, white or military grey depending on the finish.

The WR-6412-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.

DAS Audio WR-6412-DX Features

  • EN54-24 certified for use in voice alarm systems
  • 2-way system for outdoor installation
  • DX finish (Fiberglass) for direct exposure
  • IP54 ingress protection rating
  • 1 x 12AV loudspeaker
  • M-75 compression driver with 3″ diaphragm
  • Rotatable 60º x 40º horn design
  • Stainless steel fixing points
  • WR-6412-DX 400W Passive 12-Inch Line Array Speaker1
  • Performance
    • Frequency Range (-10 dB): 60 Hz – 20 kHz
    • Horizontal Coverage (-6 dB): 60º
    • Vertical Coverage: 40º
    • Nominal Impedance: 8 ohms
    • RMS Power Handling: 400 W
    • Peak Power Handling: 1600 W
    • On-axis Sensitivity 1W/1 m: 98 dB SPL
    • Maximum Peak SPL at 1 m: 130 dB
    • Recommended Amplifier
      • INTEGRAL-A402
      • INTEGRAL-A404
      • INTEGRAL-A1002
      • INTEGRAL-A1004
      • INTEGRAL-A1602
      • INTEGRAL-A1604
      • INTEGRAL-MA1004
      • INTEGRAL-MA1604
    • Recommended Processor
      • INTEGRAL-M88
      • INTEGRAL-MA1604
      • INTEGRAL-MA1004
  • Connectors
    • Audio Input Connector: Covered Barrier Strip Terminals
    • Audio Output Connector: Covered Barrier Strip Terminals
  • Enclosure
    • Enclosure Construction: Birch Plywood
    • Enclosure Geometry: Trapezoidal
    • Rigging: M10 Rigging Points
    • Finish: Fiberglass
    • Color: Black
    • IP Rating: IP54
    • Depth: 15.6” (395mm)
    • Dimensions (HxWxD): 27.8x15.6x15.6” (705x395x395mm)
    • Net Weight: 69.5 lbs (31.5kg)
  • Components
    • LF Driver: 12P
    • HF Driver: M-75
    • Horn/Waveguide: BC-64AL
  • Shipping
    • Carton Dimensions (HxWxD): 30.4x18x18.6” (776x458x472mm)
    • Shipping Weight: 75 lbs (34kg)
