Datavideo EZ Stream C

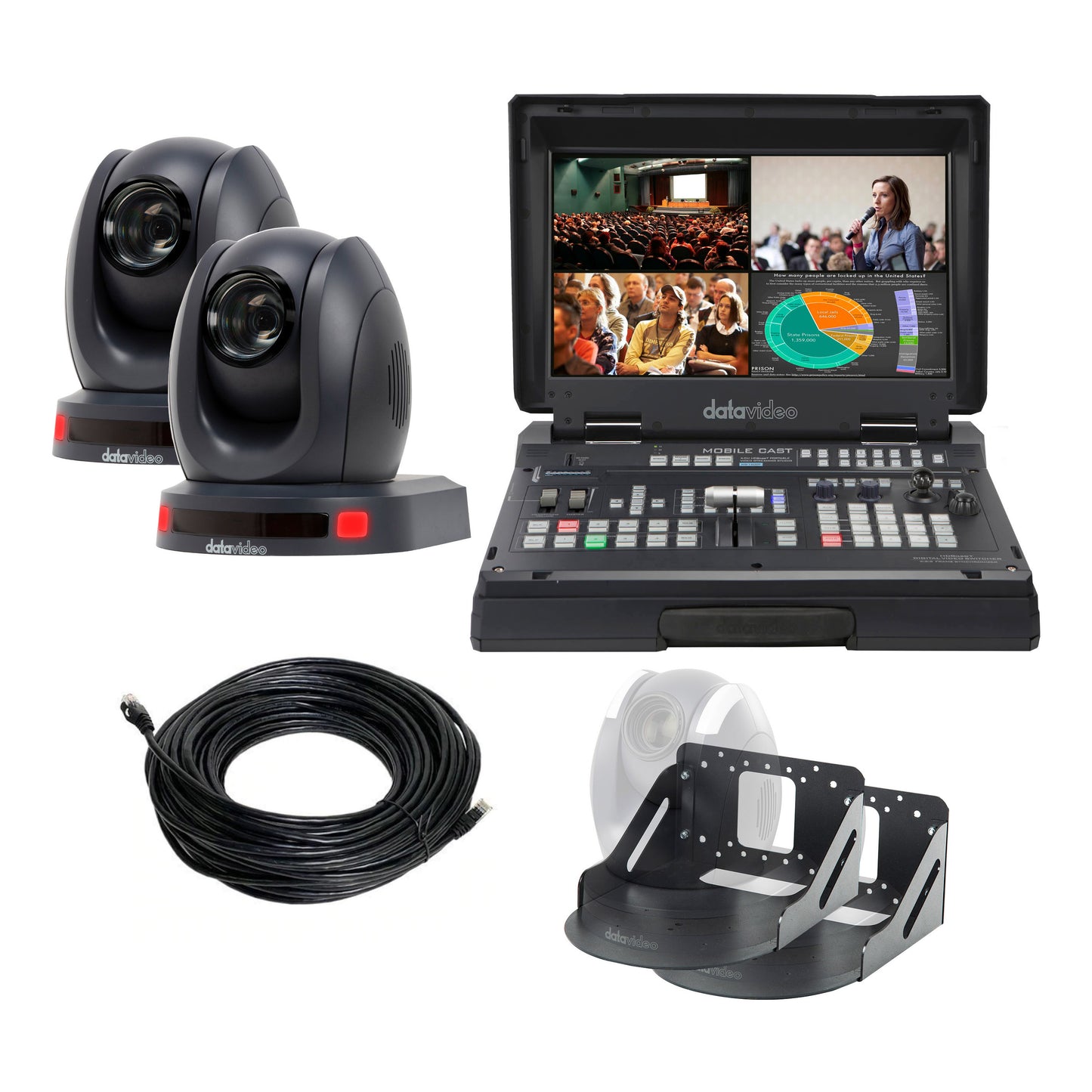

Datavideo's EZ Stream Kit is an easy to use solution for your broadcast needs. This video streaming bundle includes the HS-1600T, two PTC-140T, two WM-1 and a 100 foot CAT6 Cable.

The HS-1600T brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable design and HDBaseT Technology. With its built-in H.264 web streaming encoder, you can stream to virtually any CDN such as YouTube and Facebook in no time. Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets). The HS-1600T comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network or website of your choice.

The PTC-140T is a HD PTZ Camera that features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, and 60fps. Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 ("network cable"). By applying with the Receiver Box, the transmission distance can go up to 100 meters. The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots. This camera supports advanced digital noise reduction. Even in less-than-perfect lighting conditions, it is able to shoot clear and smooth images. With built-in streaming encoder, the PTC-140T can encode up to 2 simultaneous streams to any cloud service.

Datavideo EZ Stream C Kit Features

• Video streaming bundle for broadcast
• Bring a new level of simplicity to production workflows
• Includes one, HS-1600T Mark II portable video streaming studio, two PTC-140T HD PTZ Cameras with HDBaseT, two wall mounts, and one 100 ft cable

• HS-1600T Mark II 4-Channel HD/SD HDBaseT Portable Video Streaming Studio1
• PTC-140T HD PTZ Cameras with HDBaseT2
• WM-1 wall mounts2
• CB-CAT6-100 CAT6 Cable 100'1

• HS-1600T MARK II
  • Video Standard: HD & SD
  • Video Format
    • 1080p 50/59.94/60Hz
    • 1080i 50/59.94/60Hz
    • 720p 50/59.94/60Hz
    • 576i/p 50Hz
    • 480i/p 59.94Hz
  • Input Routable / Crosspoint: ----
  • Video Input
    • 3 x HDBaseT
    • 1 x HDMI
  • Computer Graphic Interface: 1 via HDMI
  • Down-converted Output: Yes
  • Video Output
    • 3x HDMI PGM
    • 1x HDBaseT PGM
    • 1x STREAM (RJ-45)
  • Analog Audio Input
    • 2x Balanced XLR
    • 1x Stereo RCA (L/R)
    • De-embedded Digital Audio
  • Analog Audio Output: 1x Stereo headphone
  • Digital Embedded Audio Support: Input 2 channels, Output 2 channels
  • Audio Delay Calibration: ----
  • A+V Switching: ----
  • USK: 1x USK support Lumakey
  • DSK: ----
  • Picture in Picture: 1
  • Logo Insertion: ----
  • Title Creator: ----
  • Built-in Audio Mixer: Yes, 4 channels
  • Built-in Monitor Display: 17.3” HD TFT LED backlit, 1920x1080 pix
  • Built-in Intercom & Tally: ----
  • Streaming
    • H.264 / AVC, Main/ High Profile
    • Configurable Bit-rate up to 10Mbps
  • Streaming Audio Encode
    • AAC-LC
    • Configurable bit rate range from 32Kbps to 384Kbps
    • Sample rate: 48KHz, 16bit
  • Streaming Protocol
    • TS over TCP/UDP (unicast & multicast)
    • RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    • RTMP/RTMPS (Publish)
    • HLS
    • SRT
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording File System: FAT, exFAT, NTFS
  • Recording File Format: MP4
  • Streaming & Recording Setting Control: Web UI for system configuration and control
  • Special Features: Built-in camera controller
  • Dimension (LxWxH): 455x355x134mm
  • Weight: 17.2 lbs (7.8 kg), Reinforce Plastic Case
  • Power: DC 48V, 4.16A
  • Operating Temp. Range: 0~40°C
• PTC-140T
  • Video format/Resolution
    • 1080p 60/59.94/50/30/29.97/25
    • 1080i 60/59.94/50
    • 720p 60/59.94/50
  • Image Sensor: 1/2.8 inch high quality HD CMOS sensor
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >55dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: Auto / Manual
  • Zoom Ratio: 20x Optical Zoom, 10x Digital Zoom
  • Gamma Control: Off / Normal
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: Yes
  • On-Screen Display (OSD): English, Simplified Chinese
  • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
  • AGC / Gain Control: Auto / Manual
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto / Manual
  • Panning / Tilting Range
    • Pan: 340°
    • Tilt: +90° to -30°
  • Panning / Tilting Speed
    • Pan: 0.1~60°/sec
    • Tilt: 0.1~30°/sec
  • Preset: 255 Position
  • Focal Length
    • f=5.2 (wide) to 98 (tele) mm
    • F1.6 to F3.5
  • Field of View (Horizontal, Wide): Approx. 54.7° (WIDE END) / 3.3° (TELE END)
  • Image Compensation: Backlight Compensation
  • Video Output
    • HDBaseT (PoE) x1
    • RJ-45 x1
  • Audio Input: 3.5mm Line in
  • Tally LED: Dual color (Red, Green)
  • Lens Filter: M52.0 x 0.75 Thread with UV Protection
  • Control Protocol: VISCA, Pelco-D, Pelco-P, DVIP
  • Remote Control Interface
    • RS-232
    • Lan (RJ-45)
    • HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
  • Video Compression Format: H.264, H.265, Dual stream output
  • Audio Compression Format: AAC/MP3/G.711A Audio compression
  • Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
  • HD IP Interface: 100M IP port(100BASE-TX); Support DVIP
  • Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
  • First Stream Supported Resolution: ----
  • Second Stream Supported Resolution: ----
  • Video Bitrate: ----
  • Video Bitrate Mode:----
  • Encoding Frame rate: ----
  • POE: ----
  • F/W Update: Ethernet
  • IR Control: Yes
  • Camera Control Unit: HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
  • Tripod Mount: 1/4-20 UNC
  • Optional Accessories: WM-1/ WM-10/ WM-11
  • Color: Black/White
  • Dimension (LxWxH): 156x184x186mm
  • Weight: 1.6 kg
  • Operating Temp. Range: 0~40°C
  • Power: DC 12V 12W
• WM-1
  • Weight: 3.02 lbs (1.37kg)
  • Dimensions: 416x200x126mm
  • Maximum Load Weight Limit: --
