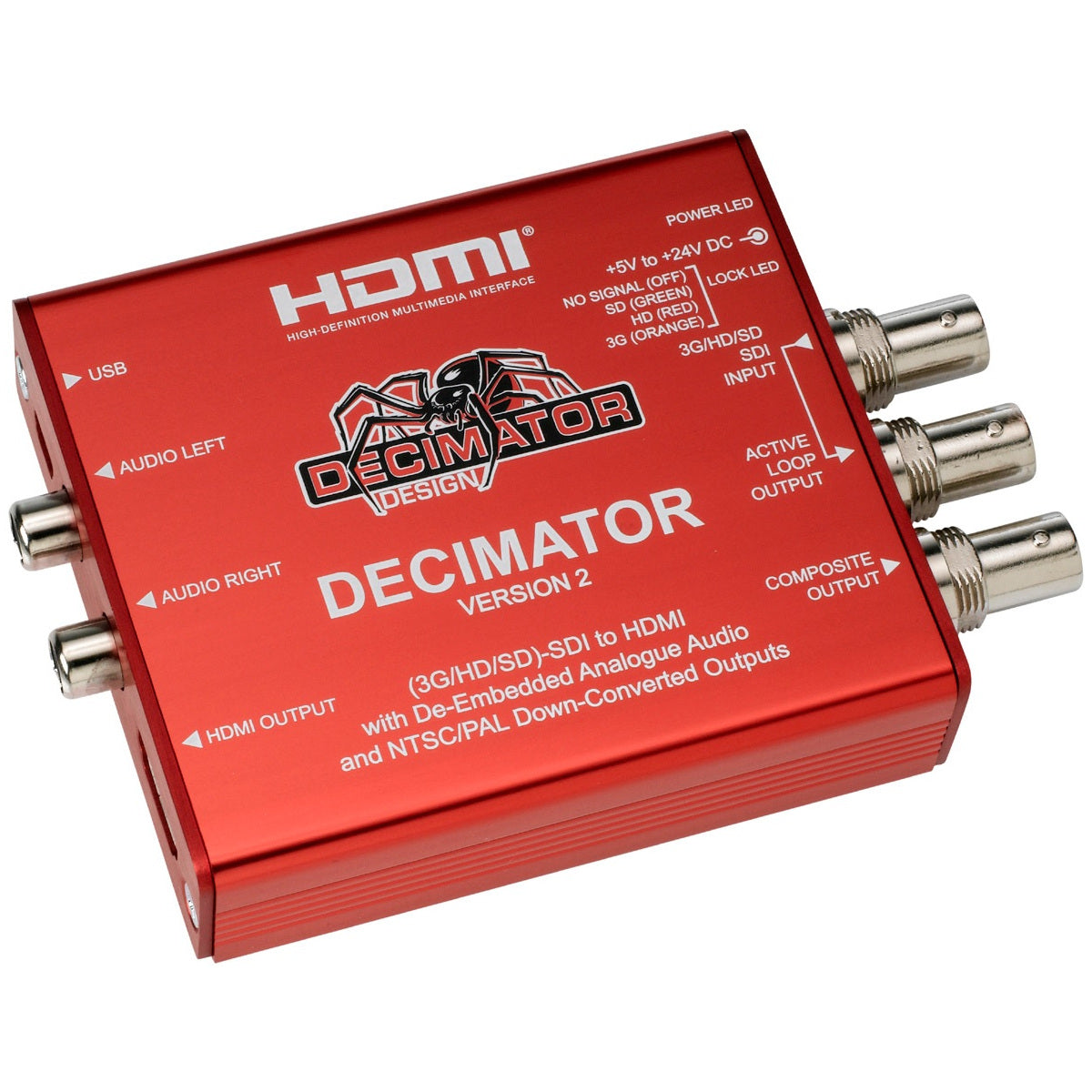

Decimator 2 SDI to HDMI Mini Converter

The Decimator 2 SDI to HDMI Mini Converter features simultaneous scaling on both outputs and De-embedded Analogue Audio. Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources. Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame. HDMI output with optional full scaling and aspect ratio conversion.

Decimator 2 SDI to HDMI Mini Converter Features

• Down-converted Composite output with:
• NTSC or PAL is selectable for 3G/HD inputs
• SD will be passed unchanged
• Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
• 16:9 to 16:9 Anamorphic
• 16:9 to 4:3 Letterbox
• 16:9 to 4:3 Centre Cut (Crop to 4:3)
• Full 10-bit data path and multipoint interpolation
• 16 times over-sampling for Composite Output
• Passes EIA-708/608 Closed Captions to the Composite Output
• Full 16-Channel Audio metering displayed on the HDMI output with:
• Any of the 4 audio groups individually selectable
• Vertical or Horizontal Bars
• AES/EBU, VU, Extended VU, BBC, EBU, DIN and NDC Scales
• Bar & Float, Bar only or Float only
• Transparency adjustment
• Separate Bar and Float Ballistics control
• Adjustable Reference level
• Red, Yellow and Green Range adjustment
• Bar thickness adjustment
• Margin adjustment
• Adjustable Graticules Generator displayed on the HDMI output with:
• Separate enables for Safe Action, Safe Title and Centre Cross
• Adjustable position for either Safe Action or Safe Title
• Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays displayed on the HDMI output with:
• Adjustable Foreground and Background colours
• Adjustable 16 character text
• Current input format status
• De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS
• 3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• Included with Unit: Power Supply, HDMI Cable, USB Cable, Mounting Bracket

• Decimator 2 SDI to HDMI mini converter1
• Power supply1
• HDMI cable1
• Mounting bracket1

• Video Formats
  • 3G: SMPTE 424M @ 2.97 and 2.967 Gb/s
  • 1080p @60/59.94/50Hz
  • HD: SMPTE 292M/274M/296M @ 1.485 and 1.435 Gb/s
  • 1080i@60/59.94/50Hz
  • 1080p/psf/@30/29.97/25/24/23.98Hz
  • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s
  • 625i50
  • 525i59.94
• Inputs
  • (3G/HD/SD)-SDI 10-bit
  • Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
• LED Status
  • Power
  • Signal Lock
• Power
  • +5V to +24V DC, ~5 Watts
  • Positive Centre Pin
• DIP Switch Controls
  • NTSC or PAL Selection
  • SD Pedestal
  • Crop 16:9 to 4:3
  • 16:9 or 4:3 Aspect Selection
  • Stereo Pair selection for RCA Analogue Audio
  • HDMI Output format select
• Outputs
  • HDMI
  • SD-Composite
  • 1x (3G/HD/SD)-SDI active loop-through
  • 2x RCA for de-embedded analog audio (20dBFS=-10dBu)
• Dimensions3.5x2.8x0.9"
