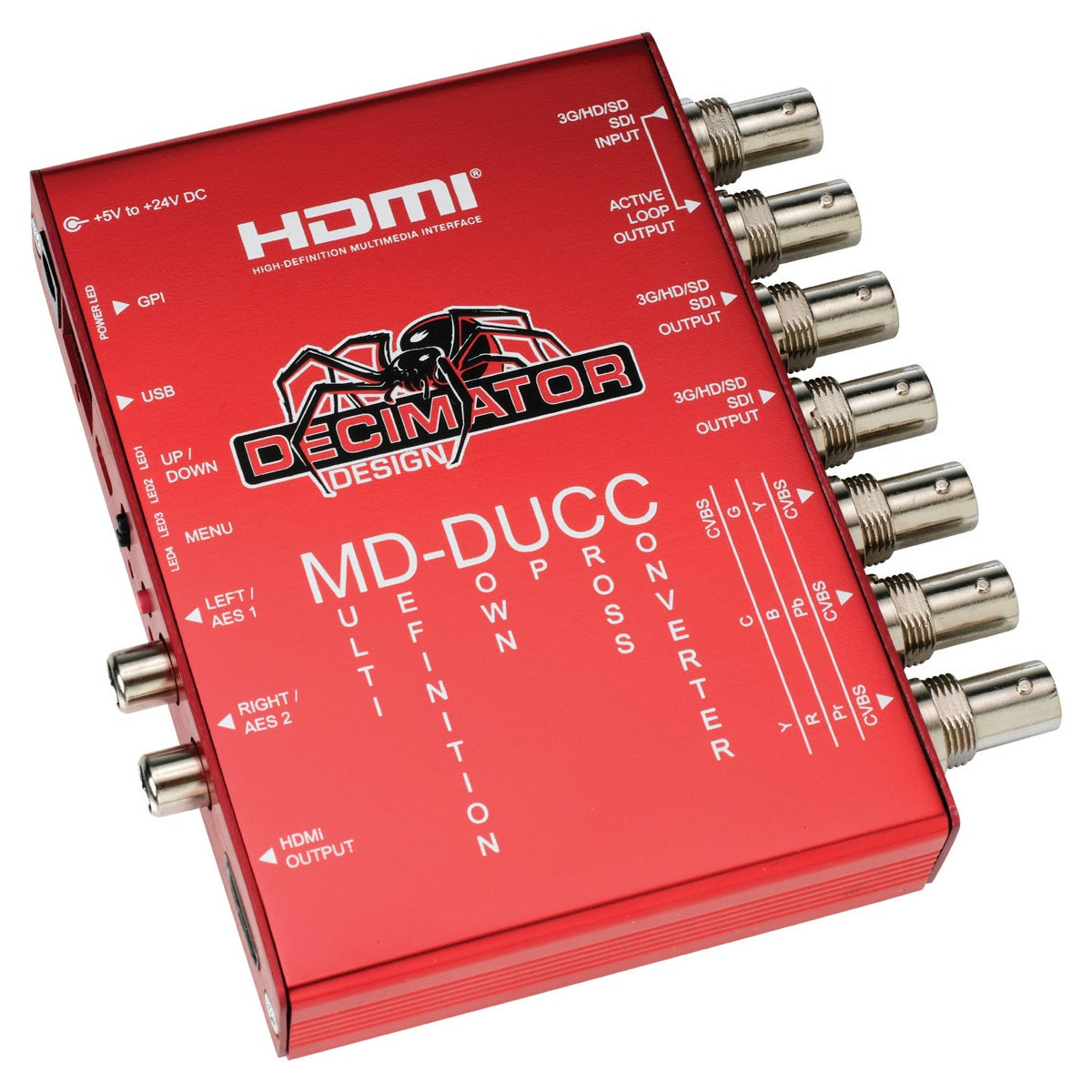

Decimator MD-DUCC Cross Converter

Decimator’s Multi-Definition Down Up Cross Converter (3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU or 2 x Analogue Audio Outputs.

Decimator MD-DUCC Features

• Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
• Horizontal and/or Vertical image flipping via the built in scaler.
• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross conversion, allowing the conversion between any of the supported formats.
• Simply select the output format you require, no matter what the input format is
• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
• Full 16-Channel Audio metering with:
• Any of the 4 audio groups individually selectable
• Vertical or Horizontal Bars
• AES, VU, Extended VU, BBC, EBU, DIN and NDC Scales
• Bar & Float, Bar only or Float only
• Transparency adjustment
• Separate Bar and Float Ballistics control
• Adjustable Reference level
• Red, Yellow and Green Range adjustment
• Bar thickness adjustment
• Margin adjustment
• Adjustable Graticules Generator with:
• Separate enables for Safe Action, Safe Title and Centre Cross
• Adjustable position for either Safe Action or Safe Title
• Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays with:
• (NEW) Custom Position, Size and Justification
• Adjustable Foreground and Background colours
• Adjustable 16 character text
• Current input format status
• The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
• When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
• HDMI output
• Selectable analogue video output from:
• 3 x CVBS out
• YPbPr out
• RGB out
• CVBS & YC out
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• LEDs for status and buttons for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket

• MD-DUCC cross converter1
• Power supply1
• HDMI cable1
• USB cable1
• Mounting bracket1

• SDI Input & Output Formats
  • 3G:SMPTE 424M@2.97 and 2.967Gb/s
  • 1080p@60/59.94/50Hz
  • HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
  • 1080i@60/59.94/50Hz
  • 1080p/psf@30/29.97/25/24/23.98Hz
  • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s
  • 625i50
  • 525i59.94
• Inputs
  • (3G/HD/SD)-SDI 10-bit
  • Conditional Max Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
• Outputs
  • HDMI
  • 1 x (3G/HD/SD)-SDI Active Loop-Through
  • 2 x (3G/HD/SD)-SDI 10-bit Outputs
  • (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
  • AES 1 / Unbalanced analogue audio - left
  • AES 2 / Unbalanced analogue audio - right
• Controls
  • HDMI format type
  • Analogue Video format type
  • Output format
  • Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions
  • On-Screen Overlays Enables
  • Basic Audio Meter control
  • Basic Graticule Enables
• LED Status
  • Power
  • Signal Lock
• Power
  • +5V to +24V DC, ~5 Watts
  • Positive Centre Poin
• Dimensions3.5" x 4.8" x 0.9"
