DPA 3506A d:dictate Omni Microphone Stereo Kit

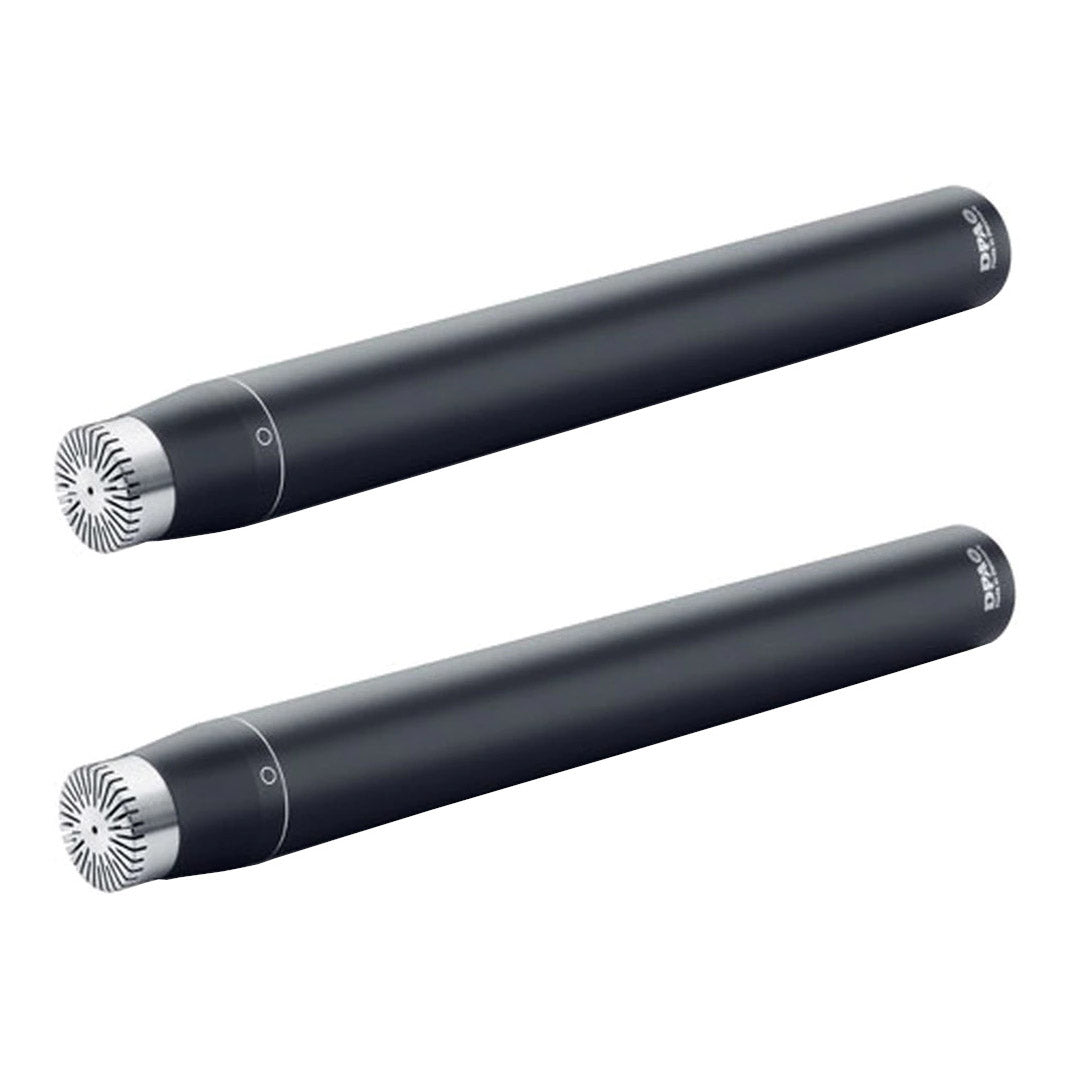

d:dictate 3506A Stereo Kit with 4006A Omnidirectional is a complete stereo kit with two carefully factory-matched phantom powered omnidirectional condenser microphones.

Even though the standard tolerances on the d:dicate™ series are extremely low, a stereo match is even closer. These specially selected d:dicate 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity.

For reference stereo recording, there is no better choice than a d:dicate 4006A Microphone. These omnidirectional condenser microphones are linear and true in character. They come as a hand-matched pair that offers the truest capture of stereo sound available.

DPA 3506A Stereo Kit Features

• Factory-matched pair within ±0.5 dB
• Natural sound
• High sensitivity
• Low noise-floor
• Extremely linear frequency

• 4006A omnidirectional microphones2
• Acoustic pressure equalizers6
• Free-field grids2
• Close-miking grids2
• Diffuse-field grids2
• Mic clips2
• Nose cones2
• Stereo boom1
• Windscreens2
• Holder2

• Transducer TypeCondenser
• Polar PatternOmnidirectional
• Frequency Response10 Hz - 20 kHz
• Rated Output Impedance200 ohms
• Sensitivity, Nominal ±2 dB at 250 Hz40 mV/Pa; -28 dB re. 1 V/Pa
• Equivalent Noise Level, A-Weightedtyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
• Equivalent Noise Level, ITU-R BS.468-4typ. 27 dB (max 29 dB)
• Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
• Dynamic Rangetyp. 124 dB
• Max. SPL, THD 10%146 dB SPL peak
• Switchable Attenuator, Filters, etc.0 dB / -20 dB
• Cable Drive Capability100 m (328 ft)
• Output Balance Principleimpedance balancing with Active Drive
• CMRR> 60 dB
• Power Supply (for full performance)P48 (Phantom Power)
• Current Consumption2.8mA
• ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Weight5.7 oz
• Dimensions0.75" diameter x 6.7" length
• Max. Output Voltage, RMS8 V
• Matching Tolerance (frequency response and sensitivity)±0.5 dB
• Phase Deviation for Kit< 5°
