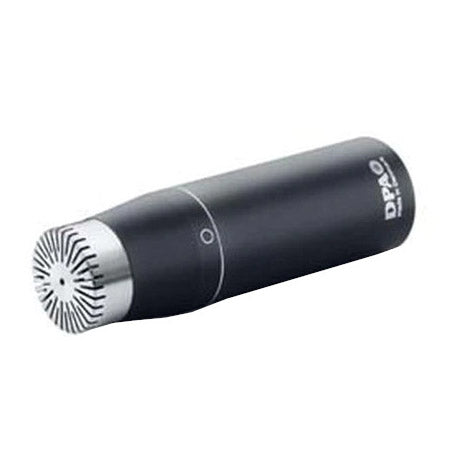

DPA 4006C Omni Condenser Microphone

Whenever a small, lightweight and inconspicuous microphone for top-quality recording is required, the d:dicate 4006C Omnidirectional Microphone is the perfect choice. The mic design is compact and clean.

This is a very versatile recording microphone. The mic is popular as an A-B stereo pair in concert halls where quality recordings can sometimes be compromised by classic architecture. The mic can be mounted, hung or concealed to create clean, transparent recordings.

It is ideal for use in theatres, opera houses, concert halls and houses of worship anywhere there is a live audience. It can also be for film recordings, both in the studio and on location. Musicians like to use this mic to close-mike some instruments, such as the double bass, trumpet and piano. And, at the same time, they are fantastic for ambience miking on soundstages, in sports stadiums and other environments where audience sound needs to be recorded.

DPA 4006C Features

• Acoustic authenticity
• Linear throughout a large frequency bandwidth
• Detailed and natural reproduction
• High sensitivity and low noise floor
• Modular flexibility
• Excellent for concert halls and spot miking acoustic instruments

• 4006C omnidirectional microphone1
• Free-field grid1
• Close-miking grid1
• Diffuse-field grid1
• Foam windscreen1
• Mic clip1

• Transducer TypeCondenser
• Polar PatternOmnidirectional
• Frequency Response10 Hz - 20 kHz
• Rated Output Impedance100 ohms
• Sensitivity, nominal, ±2 dB at 250 Hz40 mV/Pa; -28 dB re. 1 V/Pa
• Equivalent Noise Level, A-weightedTyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
• Equivalent Noise Level, ITU-R BS.468-4typ. 27 dB (max. 29 dB)
• Distortion, THD <1%131 dB SPL RMS, 134 dB SPL peak
• Dynamic Rangetyp 119 dB
• Max. SPL, THD 10%139 dB SPL peak
• Cable Drive Capability100 m (328 ft)
• Output Balance PrincipleImpedance balancing with Active Drive
• CMRR> 50 dB
• Power Supply (for full performance)P48 (phantom power)
• Current Consumption2.8 mA
• ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Max. Output Voltage, RMS4.5 V
• Matching Tolerance (frequency response and sensitivity)±0.5 dB
• Phase Deviation for Kit<5%
• Dimensions0.6"-0.75" diameter x 2.5" length
• Weight2.2 oz
