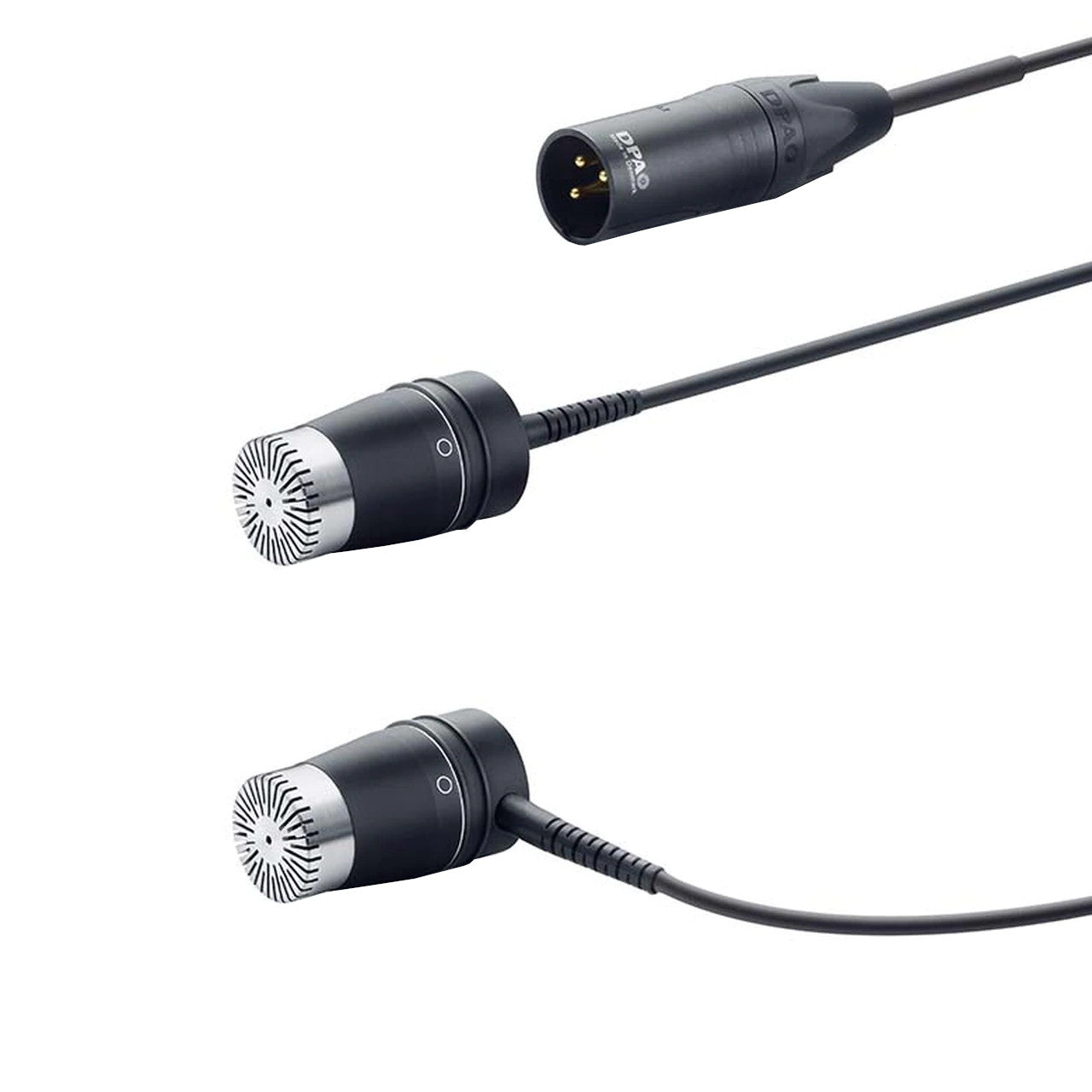

When small, lightweight and barely visible microphones for top-quality recordings are required, the active cable design and clean, transparent sound of the ultra-compact d:dicate 4006E Omnidirectional Microphone makes it the perfect choice. The mic features an integrated cable solution with either side (4006ES) or rear (4006ER) cable entry.
These mics are particularly popular as A-B stereo or Decca Tree pairs in concert halls. This mic can be mounted, hung or concealed to create clean, transparent recordings. The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.
The d:dicate 4006E Omnidirectional Microphone is ideal in theatres, opera houses, concert halls or houses of worship and for film applications, both in the studio and on location. These mics are also popular for ambience miking on soundstages, in sports stadiums and other environments where ambient sound needs to be recorded.
DPA 4006ES Features
- Ultra-compact recording mic for hanging applications
- Full-bodied sound with minimal visual impact
- Legendary recording reference capsule
- Modular flexibility
- 4006ES Side Cable Omnidirectional Microphone1
- Directional patternOmnidirectional
- Principle of operationPressure
- Cartridge typePre-polarized condenser
- Frequency response10 Hz - 20 kHz
- Effective frequency range ±2 dB20 Hz - 20 kHz
- Sensitivity, nominal, ±2 dB at 250 Hz40 mV/Pa; -28 dB re. 1 V/Pa
- Equivalent noise level, A-weightedTyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
- Equivalent noise level, ITU-R BS.468-4Typ. 27 dB (max. 29 dB)
- Distortion, THD < 1%129 dB SPL RMS, 132 dB SPL peak
- Dynamic rangeTyp. 117 dB
- Max. SPL, THD 10%132 dB SPL peak
- Rated output impedance100 Ω
- Minimum load impedance2 kΩ
- Cable drive capability100 m (328 ft)
- Output balance principleImpedance balancing
- Common mode rejection ratio (CMRR)> 40 dB
- Power supply (for full performance)P48 (Phantom Power)
- Current consumption3.5 mA
- ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- ColorMatte black
- Weight114 g (4 oz)
- Microphone diameter16 - 19 mm (0.6 - 0.75 in)
- Capsule diameter16 mm (0.6 in)
- Microphone length35 mm (1.38 in)
- Maximum output voltage, RMS2.2 V
- Polarity+V at pin 2 for positive sound pressure
- Temperature range-40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)Up to 90%
- Matching tolerance (frequency response and sensitivity)±0.5 dB
- Phase deviation for kit< 5°
