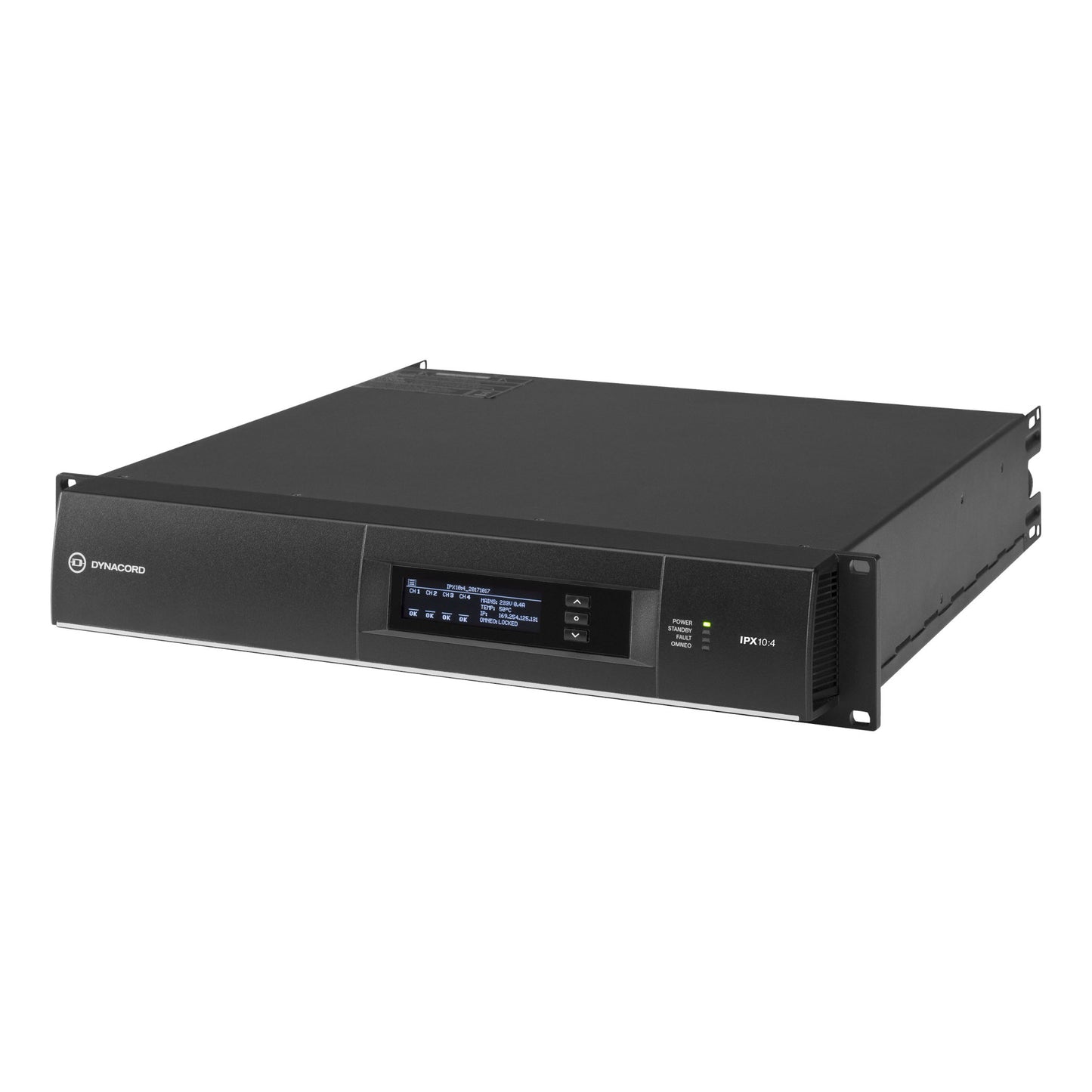

Dynacord IPX10:4 DSP Power Amplifier

SoundPro Item: 11833

MPN: IPX10:4

Description
Specifications
Documentation
Questions & Answers

Dynacord’s IPX10:4 is a dedicated amplifier for fixed install applications that require high power multichannel amplifiers with sophisticated speaker processing.

IPX series are dedicated amplifiers for fixed install application such as stadiums, arenas, houses of worship, concert halls, theaters and other applications that require high‑power multichannel amplifiers with sophisticated speaker processing. The integrated DSP can run either in 48 kHz or true 96 kHz including FIR Drive. Besides analog inputs also Dante and OCA via OMNEO network inputs are available. Comprehensive fallback options allow redundant scenarios.

Each channel can be individually operated in low impedance mode, or 70V/100V Direct Drive mode. By bridging also 140V/200V Direct Drive is available. By the possibility to parallel two channels and parallel‑bridge four channels all kind of loudspeakers can be driven.

Due to the digitally controlled interleaved PFC supply reliable operation is ensured even under challenging mains supply situations. Reactive current is limited to a minimum, which reduces costs for mains installations and mains fusing in the installation.

In case of idle mode or light mode operation IPX series amplifiers automatically switch to a lower Eco Rail further reducing operating costs. In Eco Mode the amplifiers stay fully functional and supervised.

While IPX series amplifiers are fully integrated in IRIS‑Net, an OLED display on the front panel allows quick local control and supervision of the amplifier.

The connectivity of IPX series amplifiers is optimized for fixed install applications.

Dynacord IPX10:4 Features

4 x 2500 W multi-channel installation DSP amplifier with digitally controlled PFC supply
Fully integrated DSP with high-resolution 96 kHz processing and FIR Drive
Dante and OCA integration via OMNEO with fallback options
Parallel, bridged and parallel-bridged drive modes with 70/100V/140V/200V and low impedance operation
High efficiency Eco Rail technology for lower operating costs

IPX10:4 DSP power amplifier1
8-pin Euroblock-type connector, Output, 6 mm1
6-pin Euroblock-type connector, Input2
8-pin Euroblock-type connector, GPIO1
M6x20 rack mounting screw4
Mains power connector, 32 A1

Amplifier Channels4
Max. Output Voltage (normal mode, per channel)150 V peak
Max. Output Current (normal mode, per channel)53A peak
Voltage Gain
- Low-Z mode, ref. 1 kHz: 32 dB, adjustable 20-44 dB
- Direct Drive mode: 33.2/36.2/39.2/42.2 dB for 70/100/140/200 V
Input Sensitivity
- Low-Zmode, max. output voltage: 10.7 dBu (2.66 V), adjustable -1.3-22.7 dBu
- Direct Drive mode: 6 dBu (1.55V), fixed
THD (3dB below max, AES17, 1kHz)<0.05%
DIM 100 (3.15kHz, 15kHz)<0.15%
IMD-SMPTE (60Hz, 7kHz)<0.05%
Crosstalk (ref. 1kHz, 12dB below max, 8Ω< -80 dB
Frequency Response (ref. 1kHz, analog in to speaker out)20 Hz to 20 kHz (±0.5 dB)
Damping Factor (20Hz to 200Hz, 8Ω)>400
Output Stage TopologyClass D, fixed frequency
Signal to Noise Ratio Amplifier
- A-weighted, analog input: 112dB
- A-weighted, digitial input: 115dB
Output Noise
- A-weighted, analog input: < -70 dBu
- A-weighted, digital input: < -73 dBu
Connectivity
- Analog Audio Input/Thru
Speaker Output1 x 8-pin Euroblock, 6 mm, female
Power Consumption
- Rated power consumption (see BTU table): 1200W
- 1/8 Max. Output Power at 4Ω: 1765W
- Idle Mode (no input signal): 80W
- Standby Mode: <16 W
Sampling Rate48 kHz/96 kHz, OMNEO/Dante synchronized
Signal Delay/Latency (analog in to speaker out, 48kHz, 96kHz)0.70ms/0.53ms
Dante Network Latencytyp. 1 ms
Signal Processing
- User EQ: 12 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass and Notch; 2 filters of them with additional asymmetric filter type
- User Delay: 0 to 2000 ms per channel (units: µs, ms, s, cm, m, inches, feet)
- Array EQ: 5 filters per channel, selectable as PEQ, LoShelv, Hi-Shelv, Lo-ShelvQ, Hi-ShelvQ, Hi-Pass, Lo-Pass, and All-Pass
- Array Delay: 0 to 500 ms per channel (units: µs, ms, s, cm, m, inches, feet)
- Speaker EQ: 10 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Hi-Pass, Lo-Pass and All-Pass
- Speaker X-Over: Hi-Pass, and Lo-Pass per channel, 6/12/18/24/30/36/42/48 dB Bessel/Butterworth, 12/24/48 dB Linkwitz-Riley; Alignment Delay, 0 to 20 ms per channel
- Speaker FIR: up to 1025 taps, Linear Phase Filter, Linear Phase Brickwall X-Over
- Speaker Limiters: Peak Anticipation Limiter and RMS/TEMP Limiter per channel
- Other Functions: Source Selection and Mix, Level, Mute, Polarity, Sine and Noise Generator, Pilot Tone Generator and Detection, Level Meters, Impedance Measurement and Load Monitoring
Memory
- DSP Presets: 1 Factory + 20 User
- Speaker-Pool Presets: 30 speaker settings
- Source Supervision and Fallback: Pilot Tone supervision at Analog and OMNEO/Dante inputs, switchover to alternative Source Selection
Connectivity
- Network
- Mains Input: 1 x Neutrik powerCON-HC
- GPIO Control Port
User Interface
- Display: black/white OLED 256x64 pixel
- Front Panel Indicators: 4x status LEDs (power, standby fault, omneo)
- Front Panel Operating Elements: 3 buttons (up, enter, down)
- Rear Panel Indicators: 1x status LED (status)
- Rear Panel Operating Elements: mains switch
Power Requirements100 V to 240 V, 50 Hz to 60 Hz AC
Power Supply TopologySwitching Mode Power Supply with digital controlled Power Factor Correction
Protections
- Audio Limiters
- High Temperature
- DC
- HF
- Short Circuit
- Back-EMF
- Peak Current Limiters
- Inrush Current Limiters
- Turn-on Delay
- Mains Circuit Breaker Protection
- Mains Over/Under Voltage Protection
Coolingfront-to-rear, temperature controlled fans, supervised
Ambient Temperature Limits40°F to 105 °F (5 °C to 40 °C)
IEC Protection ClassClass I (grounded)
Electromagnetical EnvironmentE1, E2, E3
Dimensions (WxHxD)19.02" x 3.47" x 20.24"
Weight33 pounds
