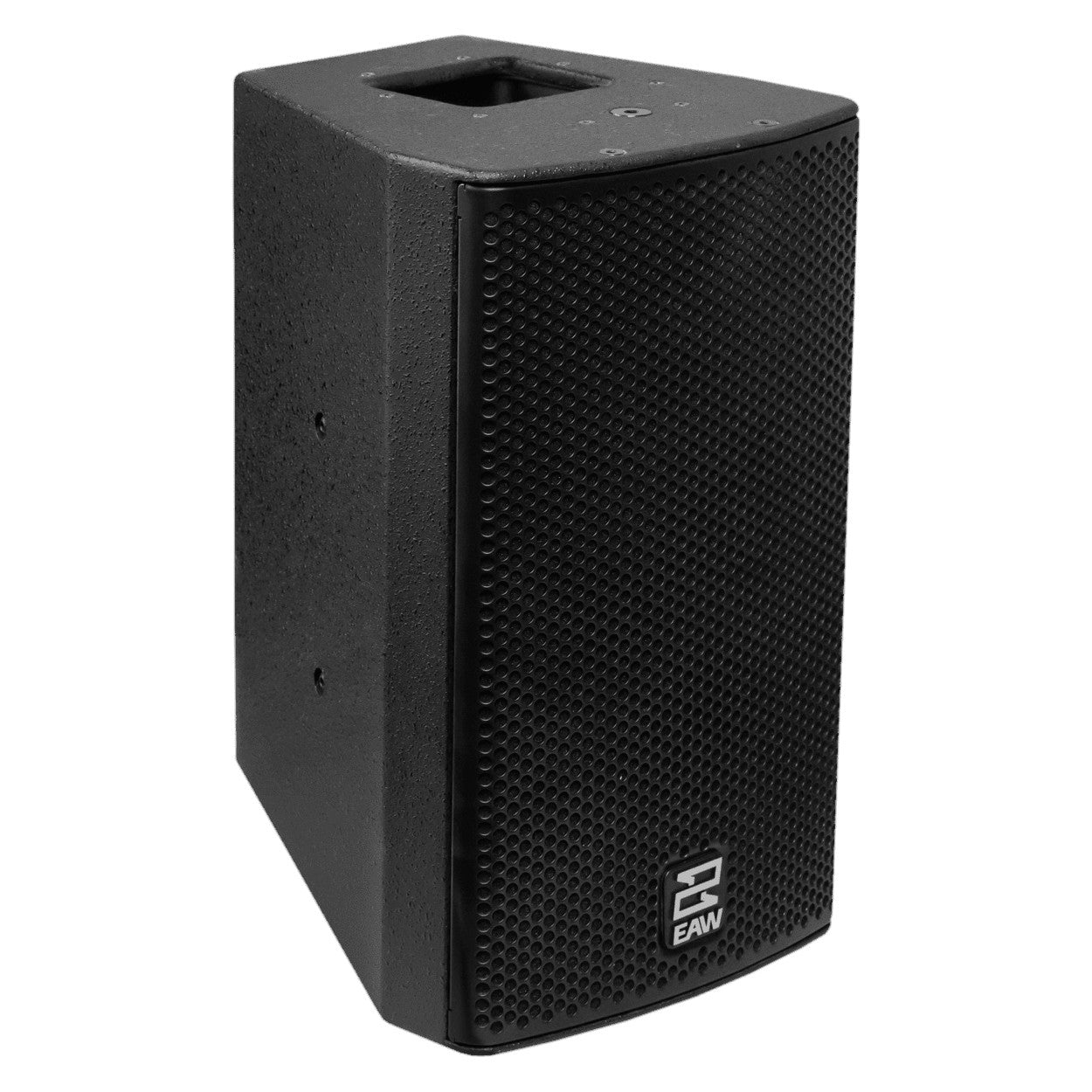

EAW’s MKC80 is an 8" 2-way coaxial point source loudspeaker. MKC series are flexible tools that help sound system designers provide exceptional sound in small and medium sized spaces. With a spectrum of driver sizes, each MKC product fills a unique need for a number of use cases. Each cabinet was designed with this in mind, incorporating angles into the form factor that allows for low profile placement of the loudspeakers to a ceiling, wall, or structure.
EAW MKC80 Features
- Available in black or white finish (white not pictured)
- High output, compact coaxial loudspeaker
- Patented CSA coaxial horn provides superior control, fidelity and output
- Integrated handle and pole mount
- Weather protection and transformer options
- Companion UXA4403 amplifiers
- Versatile accessories for a vast range of applications
- MKC80 8-Inch 2-Way Coaxial Passive Speaker1
- Frequency Response 60Hz-20kHz
- Max SPL 132dB
- Operating Mode LF/HF, DSP w/ EAW Focusing & DynO
- Subsystem
- LF Transducer – 1x8in cone, 2in VC, Vented
- HF Transducer – 1×1-in exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded
- Nominal Beamwidth 90 x 60 degrees, rotatable
- Power Handling 450W @ 8ohms
- Connections 2x Neutrik NL4, 2-pin barrier strip
- Dimensions 16.6 x 10.0 x 10.5in (422 x 255 x 267mm)
- Weight22 lbs. (10kg)
