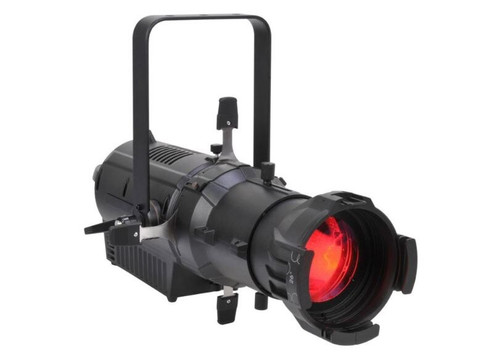

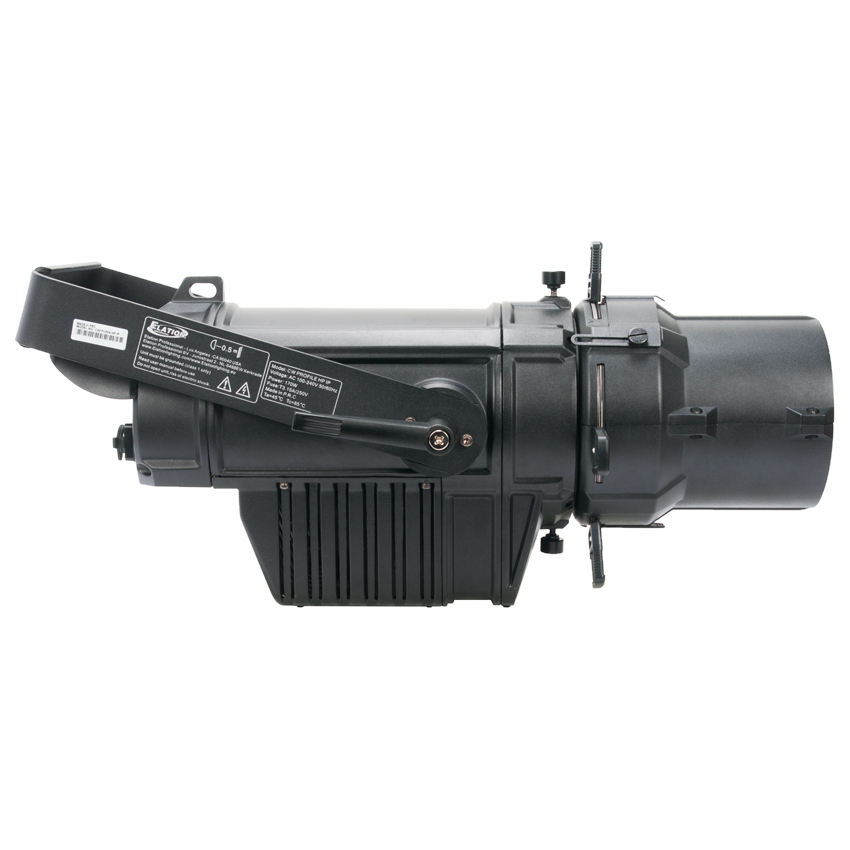

Elation CW Profile HP IP Ellipsoidal

The IP65 rated CW Profile HP IP ellipsoidal features a High Power 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, supports B size metal gobos (2 sample gobos included, single gobo holder not included) and an optional IP65 rated DMX controlled dual gobo rotator (sold separately), manual focus, DMX controlled electronic strobe, 16bit dimming and selectable dimming curve modes, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, IP rated 5pin DMX and powerCON TRUE1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Elation CW Profile HP IP Features

• IP65 Rated High Power 130W Cool White 5,600K LED Engine
• >90CRI and 12,000+ Total Lumens Output
• Interchangeable Lens Options* 19°, 26°, 36°, 50°
• Supports B Size Metal Gobos**
• IP65 DMX Controlled Dual Gobo Rotator*
• (4) Blade Manual Framing Shutters
• DMX Controlled Electronic Strobe and 16bit Dimming
• Selectable Dimming Curve Modes
• Flicker Free Operation for TV and FILM
• Adjustable Refresh Frequency and Gamma Brightness
• Quiet Fan Cooling

• CW Profile HP IP Ellipsoidal1

• SOURCE
  • High Power 130W Cool White LED Engine
  • 50,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
• PHOTOMETRIC DATA>90CRI | 12,000+ Total Lumens
• EFFECTS
  • Electronic Strobe and 16bit Dimming
  • Selectable Dimming Curve Modes
• GOBOS
  • Supports “B” Size Metal Gobos**
  • IP65 Rated DMX Controlled Dual Gobo Rotator***
  • **Gobos and Holder not included. ***Rotator Sold Separately
• CONTROL / CONNECTIONS
  • 4 DMX Channel Modes (1 / 3 / 6 / 8)
  • Adjustable Refresh Rates
  • Adjustable Gamma Brightness
  • 4 Button Control Panel / LED Menu Display
  • IP Rated 5pin DMX In/Out / IP65 Locking Power Cable In/Out
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 11.79” (299.5mm)
  • Width: 21.79” (553.55mm)
  • Vertical Height: 18.11” (460mm)
  • Weight: 19.40 lbs. (8.8kg)
• ELECTRICAL / THERMAL
  • Quiet Fan Cooling
  • AC 100-240V - 50/60Hz
  • 170W Max Power Consumption
  • 14° to 113°F (-10° to 45°C)
• APPROVALS / RATINGSCE | cETLus | IP65
