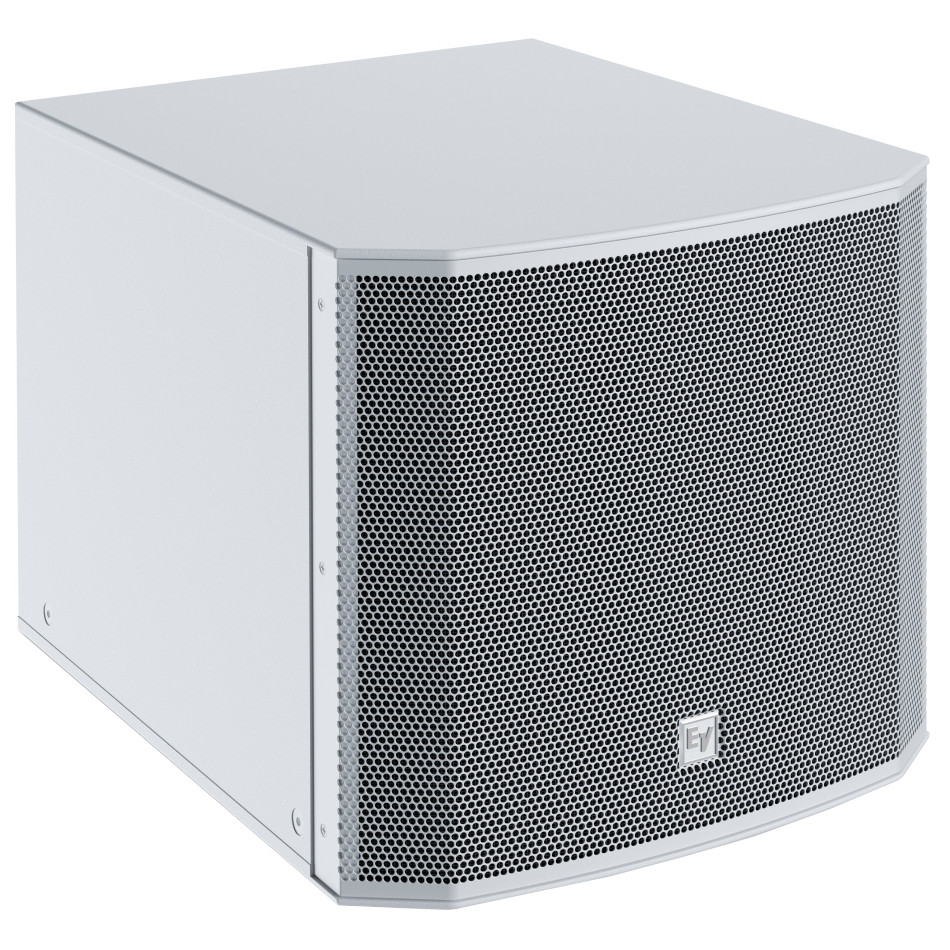

Electro-Voice EVC-1181S 18-Inch Passive Subwoofer

The EVC-1181S passive subwoofer from Electro-Voice comprises a single 18" low frequency transducer in an optimally vented enclosure, and offers an affordable solution for many fixed-install applications. Designed to complement the 8-, 12-, and 15-inch full range EVC systems, including the EVC-1122/VI Variable Intensity loudspeaker, the EVC-1181S does not have an internal passive crossover; it requires a suitable active low pass filter and 4th-order Butterworth system high pass filter for proper operation. The EVC series from Electro-Voice is constructed of 15-mm plywood enclosures and finished with EVCoat for enhanced durability.

Electro-Voice EVC-1181S Features

• 97 dB sensitivity, 129 dB maximum SPL
• System rating: 350W Continuous, (1400W Peak)
• Recommended frequency range: 30 Hz to 135 Hz
• Designed to work with EVC 8-, 12-, and 15-inch systems
• Optional high-quality transformer and patented Automatic Saturation Control (ASC) preserve rich, warm low-frequency response over 70V/100V lines

• EVC-1181S 18'' Passive Subwoofer1

• Max Calculated SPL129dB
• Frequency Range (-10 dB)30Hz-135kHz
• SuspensionFour (4) M10 inserts
• Minimum Impedance6.3Ω
• Frequency Response (-3 dB)38Hz-95kHz
• LF TransducerEVS-18L
• Grille18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
• Weight Net71.87lbs (32.6kg)
• Shipping Weight80.47lbs (36.5kg)
• Environmental SpecsIEC 60529, IP44 (IP55 for PI versions)
• Nominal Impedance8Ω
• Axial Sensitivity (SPL, 1 W @ 1 m)97dB
• Power Handling (Continuous / Peak)400/800/1600W
• ConnectorsDual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
• Enclosure15mm weather-resistant plywood with EV Coat
• ColorBlack or White
• Dimensions (HxWxD)503x554x718mm
• Rec. high-pass frequency, 4th Order35 Hz for 8Ω (40 Hz with TK-150 transformer)
