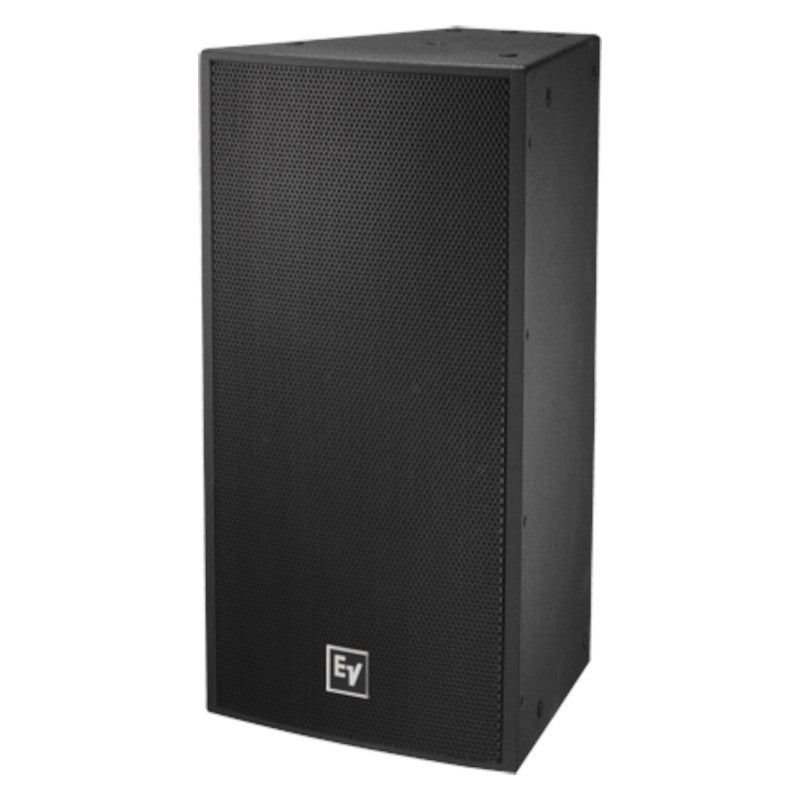

EVF-1122D/64 features a 60° x 40° rotatable waveguide, design for far field long throw coverage pattern.
Electro-Voice EVF-1122D Features
- 3-inch DH7N titanium/neodymium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 60º to 120º
- 97 dB sensitivity, 131 dB maximum SPL
- Power handling: 600W continuous, 2400W peak
- 4th-order passive crossover with HF protection
- Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
- EVF-1122D 12-Inch Passive Speaker1
- Frequency Range (-10 dB) 49 Hz – 21 kHz
- Suspension 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
- Weatherized No
- Minimum Impedance 6Ω
- Nominal Impedance (Passive) 8Ω
- HF Transducer 3" DH7N diaphragm compression driver
- Speaker Type Full-Range, Two-Way
- Frequency Response (-3 dB)¹ 57 Hz – 18 Hz
- LF Nominal Impedance 8Ω
- Max. SPL/1m (calc)² 131dB
- Coverage (Nominal -6 dB) H 90°
- Coverage (Nominal -6 dB) V 40°
- LF Transducer 12" DVX3121A woofer
- System Power Handling (Continuous/Program/Peak) 600 , 1200 , 2400 Watts
- Crossover Frequency 1300Hz
- Enclosure Material 13-ply weather-resistant birch
- Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Sensitivity 1 W/1 m 97dB
- Height 30.26" (768.6mm)
- Recommended High-Pass Frequency 65Hz
- Width 16" (406.3mm)
- Depth 16.27" (413.3mm)
- Weight Net 65.48lbs (29.7kg)
- Shipping Weight 75.84lbs (34.4kg)
- Available Coverage Patterns (Nominal -6 dB) HxV 90 x 40°
- Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
- Internal Passive Crossover Frequency 1300Hz
- Passive Power Handling 2400W peak
- Net Weight 65.5 lb (29.7 kg)
- Dimensions (HxWxD)30.26x16x16.27" (768.6x406.3x413.3mm)
- Input Connections Euroblock; PI and FG versions include dual-gland-nut input-panel cover
