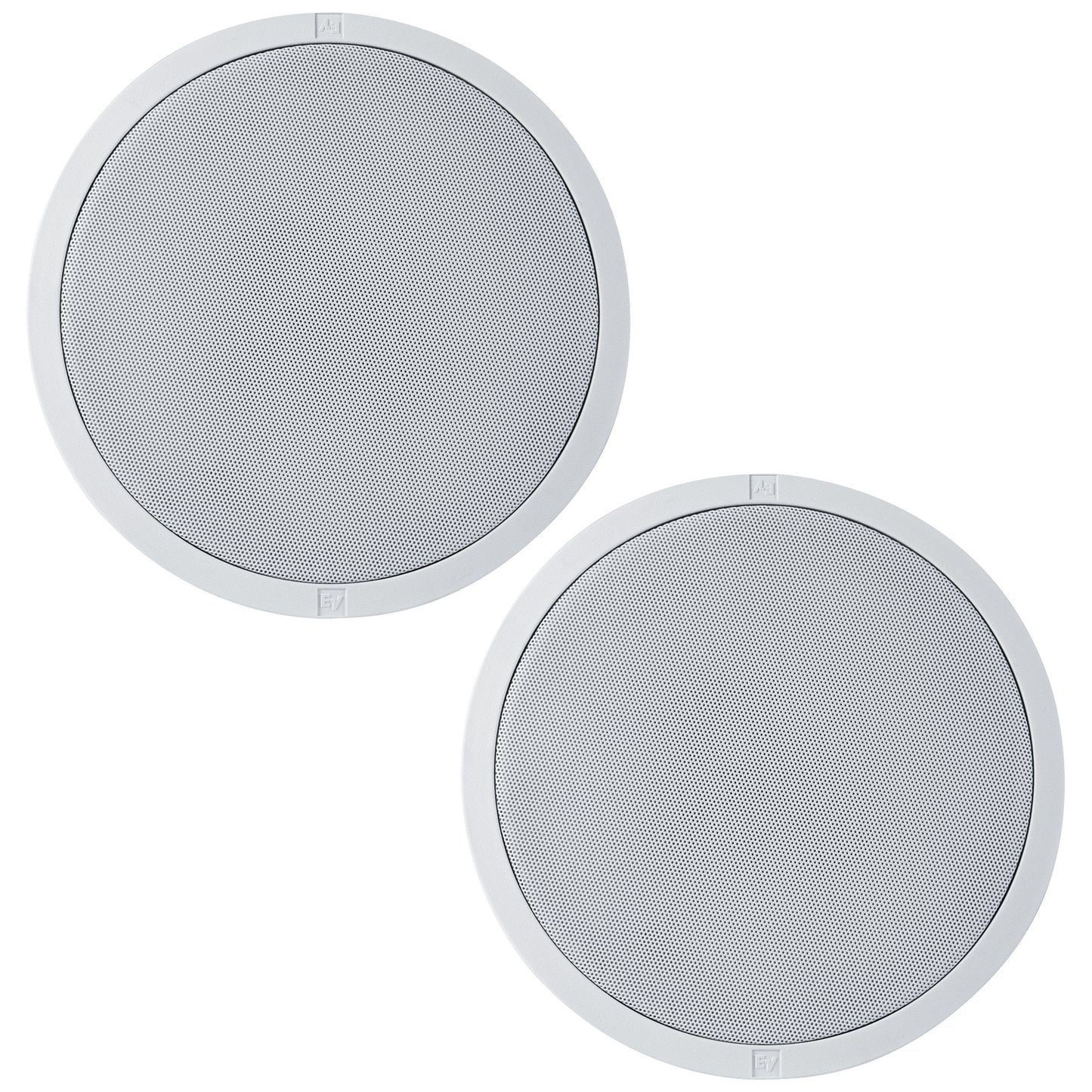

This pair of EVID-C4.2LP speakers is a complete, yet low-profile, package that consists of a bezel assembly, grille, rear enclosure, 4” coax two-way loudspeakers, and internal line-matching transformer.
The loudspeaker features a waveguide-coupled titanium-coated dome tweeter. The EVID-C4.2LP ceiling speaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C4.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle.
The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0-rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides passthrough to additional speakers. A tile bridge is included for safe suspension of the EVIDC4.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.
Electro-Voice EVID C4.2LP (Pair) Features
- Low profile 4" coaxial two-way (3.7" deep)
- Full bandwidth overload protection
- vFront baffle wattage tap adjustment
- Includes tile bridge and mounting ring for easy installation
- UL1480A and CSA 22.2 205 certified
- EVID C4.2 LP 4" low profile ceiling speaker2
- Tile rail4
- C-ring support2
- Grille2
- Support ring screw4
- Terminal connector2
- Cutout template1
- Paint shield2
- Frequency Response60Hz - 20,000Hz
- Sensitivity (SPL 1W/1m)86 dB
- Coverage Pattern130° conical
- Power Handling (@ 8Ω)50W (with overload protection)
- Rated Impedance8 Ω
- Recommended High-Pass Frequency65 Hz
- Input Configuration8Ω; 70V/100V
- 70V/100V Power Taps 1.8 (70V only)/3.7/7.5/15/30W
- LF Transducer4" high-compliance driver (weatherized cone)
- HF Transducer0.75" ti-coated dome
- Mounting Systemintegrated 4-point toggle anchors
- Acoustic Designported cabinet, 2-way design, internally damped, w/ passive crossover
- Cabinet Constructionsteel enclosure and UL94V-0 rated baffle and bezel
- Grille Constructionpowder-coated steel
- Dimensions
- Depth: 3.7"
- Diameter: 11.8"
- Cutout Diameter: 10.6"
- Weight7.35 lbs
More about EVID Speakers
Create an immersive audio experience, no matter what your environment. The Electro-Voice Innovative Design (EVID) family is a comprehensive line of commercial loudspeaker solutions. Comprised of surface-mount, ceiling-mount, pendant-mount, and flush-mount models, EVID offers a selection of speakers that are the perfect acoustic and aesthetic fit for spaces of any size or shape, both indoors and outdoors. Combining high power and high performance, EVID is the superior solution to today's installation needs. Mix and match EVID options to meet the specific needs of any application, achieving superior sound quality, consistent visual impact, professional-caliber features, and more—all at a competitive price point. EVID is designed to meet the demands of professional contractors while keeping listener experience a priority. Each model combines simple installation with premium audio performance, excellent value, low-profile visual impact, and robust reliability. The EVID line works well for providing background music and paging, making them a great choice for restaurants, retail, hospitality, houses of worship, office and commercial buildings, entertainment centers, and other venues. Their outdoor-rated options are an ideal addition to spaces like patios or pools. Achieve superior sound solutions with speakers that blend unobtrusively into your environment. EVID’s premium ceiling speakers are versatile solutions that deliver high-quality audio even in the most challenging environments. Great for contractor installations, EVID ceiling speakers provide pristine clarity, expansive coverage, rugged reliability, and time-saving features. Choose from a wide range of options to fit your specific venue’s size and shape. Each ceiling speaker model is equipped to meet specific needs across a range of applications. Mix and match from a product lineup including coaxial, high-ceiling, low-profile, pendant, premium high-performance, shallow-can, and subwoofer models.
