The compact high-performance EVID-S10.1D subwoofer from Electro-Voice was constructed to handle the elements, popular for restaurants with outdoor spaces.
The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10" (254 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.
The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.
The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.
Electro-Voice EVID-S10.1D Features
- Two 10 inch high-excursion woofers
- Carefully engineered for outdoor environments (IP54 and IP65), without compromising performance
- 400W power handling provides for 120 dB maximum SPL (126 dB peak)
- Optional UB-10D U-bracket sold separately

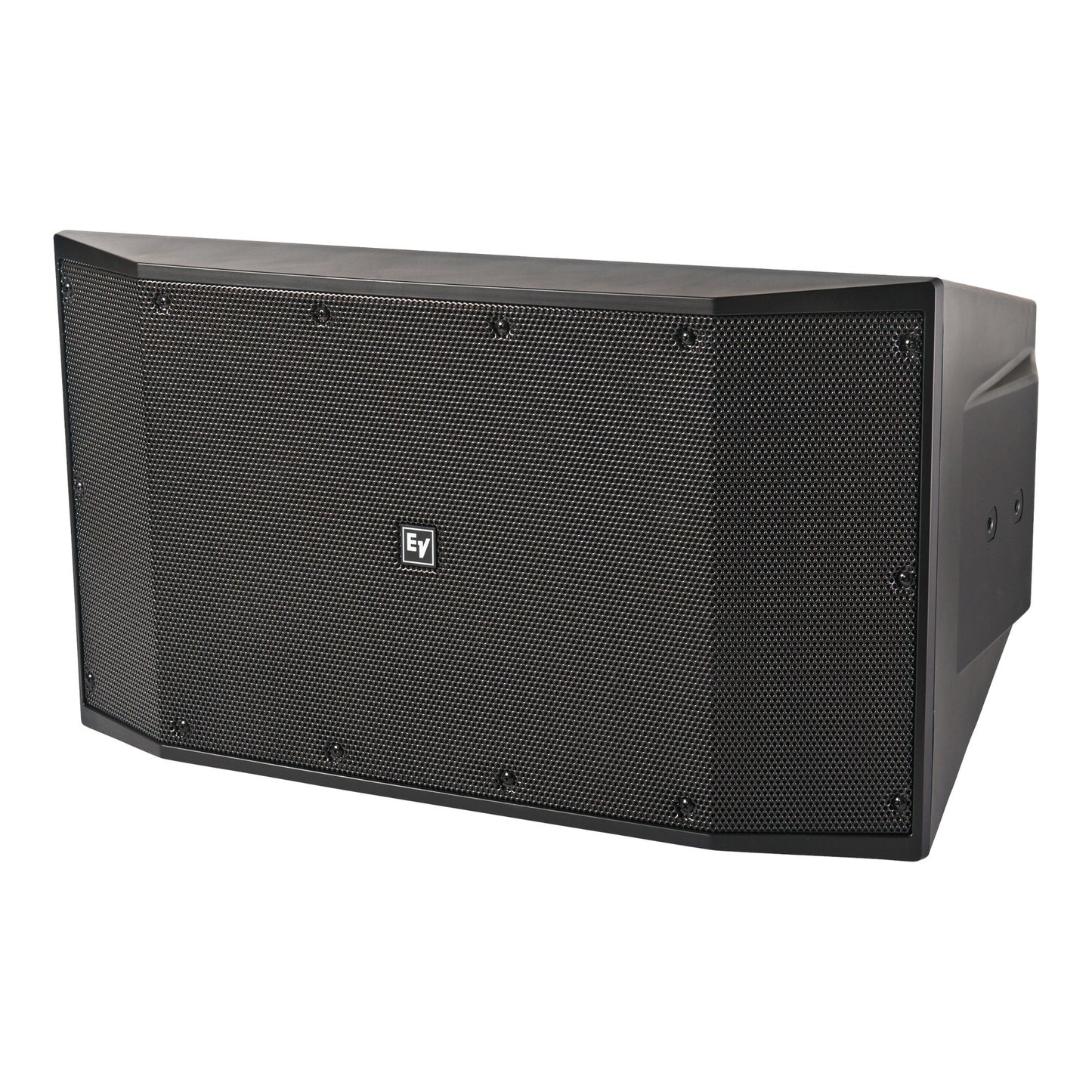

- EVID-S10.1D 2x10'' Passive Subwoofer1
- Subwoofer feet2
- Allen wrench1
- Weather input cover1
- Screws for the weather input cover8
- IP65 port covers2
- IP65 port cover screws12
- Frequency response (-10 dB)33 Hz – 500 Hz[1]
- Sensitivity94 dB[2]
- Max. SPL (Calculated)120 dB (126 dB Peak)
- Power handling
- 400W (1600W Peak) Continuous
- Pink Noise (100 hours)
- Low Z: Yes
- Nominal impedance(2) 8Ω (stereo mode); (1) 4Ω (mono mode)
- Recommended High-Pass40 Hz (24 dB/octave)
- Input transformer (70V/100V)Optional accessory
- Transformer tapsOptional accessory
- LF transducerTwo 10 inch (254 mm)
- Connectors
- Two removable locking 4-pin connector (Euroblock) – Input and output
- Max. wire size 12 AWG (2.5 mm)
- EnvironmentalIP-54 (per IEC-60529); IP-65 with port covers
- ColorBlack (RAL 9004) or white (RAL 9003)
- Dimensions (HxWxD)14x25.6x19.3" (356x651x491mm)[3]
- Net weight17.9 kg (39.5 lb)[3]
- Shipping weight21 kg (46.3 lb)
- Packaged quantity1
- Notes
- [1] Half space (wall mounting)
- [2] Half space (on wall) averaged 50 Hz – 150 Hz, 1W
- [3] Without U-Bracket
More about EVID Speakers
Create an immersive audio experience, no matter what your environment. The Electro-Voice Innovative Design (EVID) family is a comprehensive line of commercial loudspeaker solutions. Comprised of surface-mount, ceiling-mount, pendant-mount, and flush-mount models, EVID offers a selection of speakers that are the perfect acoustic and aesthetic fit for spaces of any size or shape, both indoors and outdoors.
Combining high power and high performance, EVID is the superior solution to today's installation needs. Mix and match EVID options to meet the specific needs of any application, achieving superior sound quality, consistent visual impact, professional-caliber features, and more—all at a competitive price point.
EVID is designed to meet the demands of professional contractors while keeping listener experience a priority. Each model combines simple installation with premium audio performance, excellent value, low-profile visual impact, and robust reliability. The EVID line works well for providing background music and paging, making them a great choice for restaurants, retail, hospitality, houses of worship, office and commercial buildings, entertainment centers, and other venues. Their outdoor-rated options are an ideal addition to spaces like patios or pools.
