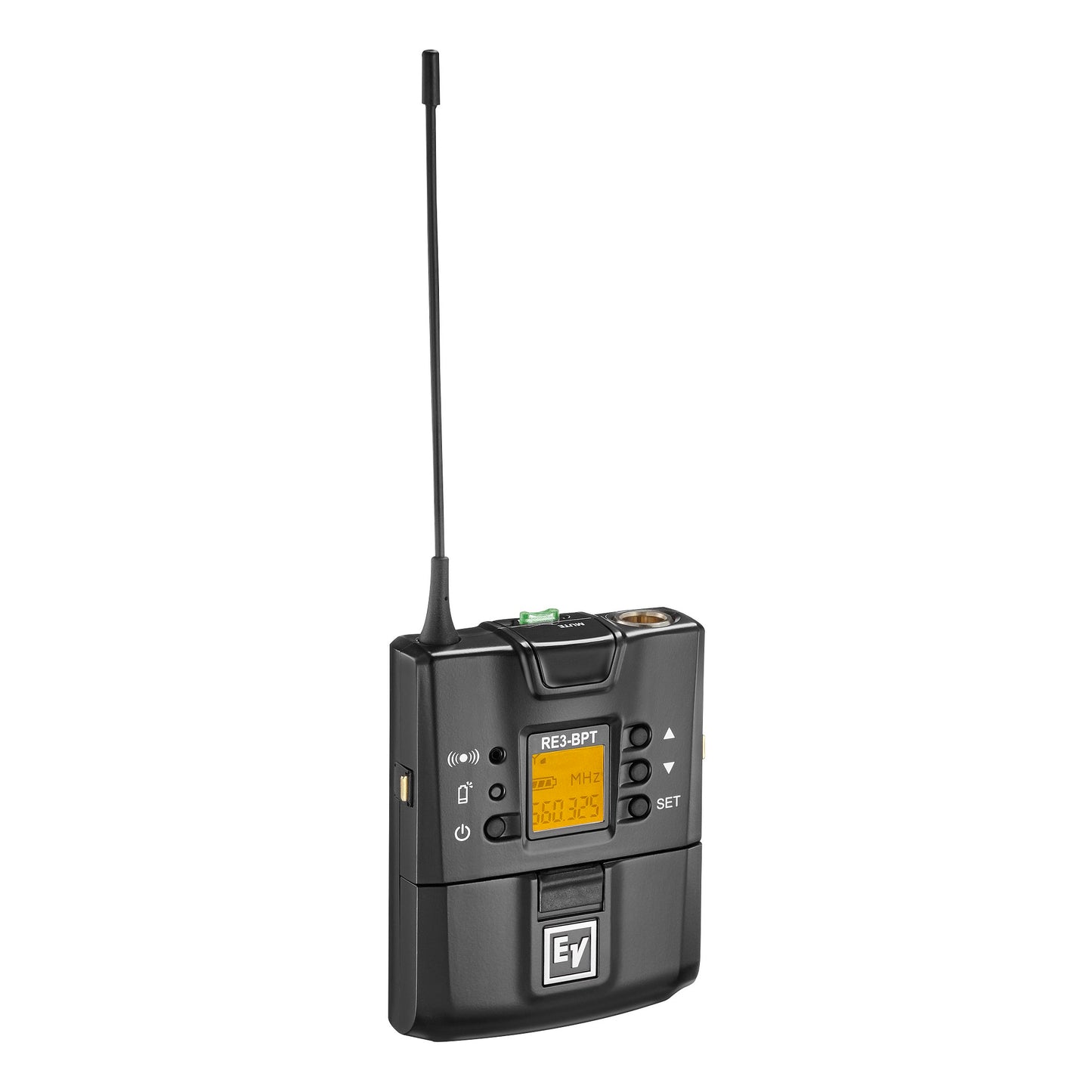

Electro-Voice RE3-BPT Wireless Bodypack Transmitter

The RE3-BPT is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. From stand-up presentations, to theatrical and musical performances, to high-energy fitness and athletic situations, this sleek and rugged transmitter fits comfortably and accepts a wide variety of input devices.

Electro-Voice RE3-BPT Features

• Robust metal body
• Sync function for easy frequency setup
• Selectable low and high output power (band specific)
• Up to 36 MHz tuning bandwidth (band specific)
• Unique magnetic latch and lock for easy access to batteries

• RE3-BPT Bodypack Transmitter1

• Frequency oscillation mode Phase-locked loop (PLL)
• Available band names, tuning bandwidths, and carrier frequency ranges
  • 5L 36 MHz (488-524 MHz)
  • 5H 36 MHz (560-596 MHz)
  • 6M 10 MHz (653-663 MHz)
  • 8M (823-865 MHz)*
  • T 3 MHz (803-806 MHz)
  • *8M is split into two segments
  • 823-832MHz 9MHz
  • 863-865MHz 2MHz
• Sync frequency Ultrasonic
• RF power output
  • Frequency band specific 5L (488-524MHz) Low 10mW / High 50mW
  • 5H (560-596MHz) Low 10mW / High 50mW
  • 6M (653-663MHz) Low 10mW / High 20mW
  • 8M (823-865MHz) 10mW
  • T (803-806MHz) Low 10mW / High 50mW
• Display by LCD + LED
• Function controls Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
• RF stability <±10kHz@Fc
• Modulation frequency shift Wideband FM ±48kHz deviation
• Harmonic radiation <−50dBc
• Input jack 4-pin mini jack
• Battery 2 x AA alkaline battery or NiMH rechargeable battery
• Charging contacts Yes
• Finish Black polyurethane paint
• Dimensions (without antenna)
  • Height 3.2 in. (81.5mm)
  • Width 2.54 in. (64.5mm)
  • Depth 0.98 in. (25mm)
  • Net weight 6.14 oz. (0.174 kg)
  • Gross weight 8.29 oz. (0.235 kg)
