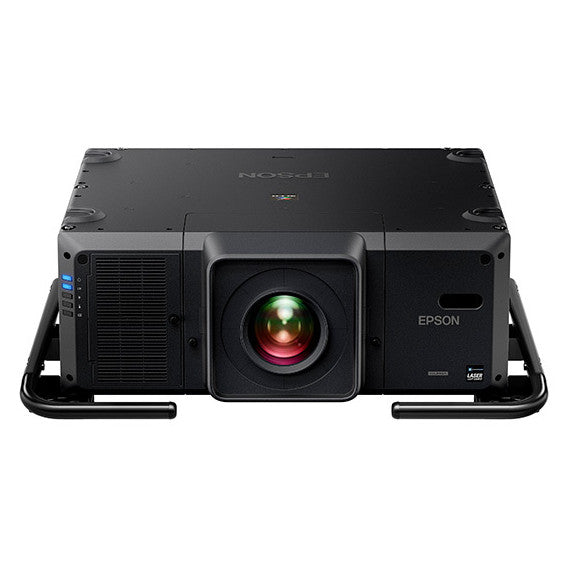

Epson Pro L30000UNL WUXGA 3LCD Laser Projector

Epson’s brightest projector, the Pro L30000UNL offers 30,000 lumens of color and white brightness2, plus native WUXGA resolution with 4K Enhancement Technology1, making it the perfect choice for live events, rental and staging, auditoriums, lecture halls and other large-venue applications. The solid-state laser light engine and electrostatic air filter offer virtually maintenance-free operation for up to 20,000 hours3. The projector includes a host of premium features for enhanced durability and fast setup, such as a mechanical shutter and sealed optical engine as well as Stacking Assist, Tiling Assist and a built-in camera. Nine optional interchangeable lenses are available.

Epson Pro L30000UNL Features

• High-aperture Epson® 3LCD, 3-chip technology

• WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
• 30,000 lumens of color and white brightness2

• Pro L30000UNL WUXGA 3LCD Laser Projector1
• Mounting Bracket (ELPMB56)1
• Quick Start Guide1
• Power cables1
• Projector remote control with batteries1
• HDMI cable clamp1

• Projection SystemHigh-aperture Epson® 3LCD, 3-chip technology
• Projection MethodFront/rear/ceiling mount
• Driving MethodPoly-silicon TFT Active Matrix
• Native ResolutionWUXGA with 4K Enhancement1 (1920 x 1200 x 2)
• Resolution on ScreenWUXGA with 4K Enhancement1/4.6 million pixels
• Pixel Number in Device2,304,000 dots (1920 x 1200) x 3
• Color Brightness - Color Light Output30,000 lumens2
• White Brightness - White Light Output30,000 lumens2
• Aspect RatioSupports 4:3, 16:9, 16:10
• Resolution1920 x 1200
• Maximum Resolution4096 x 2160 (resizing display)
• Brightness Uniformity90%
• Pixel ArrangementCross stripe
• Size - projected distance100" – 1000"
• Keystone CorrectionVertical: ±45 degrees; Horizontal: ±30 degrees
• Contrast Ratio2,000,001:1 +
• Color ReproductionUp to 1.07 billion colors
• Light Source Life20,000 hours (Normal/Quiet); 30,000 hours (Extended)3
• Illumination TechnologyLaser Diode
• Operating Temperature32 ̊ to 122 ̊F (0 ̊ to 50 ̊C)
• Dimensions(excluding feet, lens, handle) 31.1x28x11.4" (790x710x290mm)
• Weight(excluding lens and handle) 140.7 lb/63.8 kg
• Security Kensington lock provision, Lens Lock, Wireless LAN Unit Lock
• Eco Features
  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay® Transport Partner6
• Warranty The projector has a limited warranty of 3 years or 20,000 hours, whichever comes first
• Type
  • Powered shift/focus/zoom
  • Standard Lens ELPLM12
  • See website for information on optional lenses
• F-number 1.9 – 2.1
• Focal Length 54.7 – 73 mm
• Zoom Ratio Optical zoom 1 – 1.35x
• Throw Ratio Range 1.74 (Wide) – 2.35 (Tele)
• Lens Shift Vertical: ±65 percent; Horizontal: ±30 percent
• Projector Details
  • Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160
  • Interfaces:
    • 1x DVI-D
    • 1X HDMI® (HDCP 2.2)
    • 1x HDBaseTTM (HDCP 2.2)
    • 5-BNC, 1x VGA
    • 1x 3G-SDI
    • USB 2.0 Connectors: 1x Type B (For Firmware update, copy OSD) 1x Type A (For Optional Wireless LAN)
    • Monitor Out: 1x Mini D-sub 15 pin
    • Serial Control Serial: 1x RS-232c
    • 1x SDI Out (Loop-Through)
    • Remote: Stereo Mini
    • Wire LAN x 1 RJ45 (Compliant with Control I/O (Art-Net))
  • Fan Noise: 49 dB (Normal Mode); max. 41 dB (ECO Mode)
• Remote Control
  • Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Remote ID, Auto, Aspect, Color Mode, Menu and more
  • Operating Distance: 98 ft
  • Operating Angle:
    • Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
    • Upper/Lower: Front: ± 50 degrees; Rear: +20 degrees
• Power
  • Power Supply Voltage: 200 - 240 V AC ±10%, 50/60 Hz; Only for temporary setting, 100 - 120 V usage is acceptable
  • Power Consumption:
    • Requires 200-240V
    • 2325W (Normal Mode)
    • 2.5 Network Standby (Communication on)
    • 0.5 Energy Saving (Communication off)
