The Studio HD array combines warm white and cool white LEDs for variable-color-temperature mixing. Added to the mix are carefully chosen colors from the Selador x7 Color System to allow for tint adjustment (+/- green) while also filling in the white LED spectral gaps. This provides a high quality and tunable white-light source.
Designed with the user experience in mind, the D60 luminaire features a user interface with Quick Setup options to simplify work. You can choose from Stage, High-Impact, XT (Exterior)/Architectural, General and Studio settings to customize the luminaire to your specific task. And you can further tailor the fixture to your needs by choosing profile and performance settings via the user interface. The D60 luminaire can be controlled from a DMX-enabled controller - like an ETC lighting control console - or run on its own by selecting the Stand Alone Mode on the unit.
ETC Desire D60 Studio HD Features
- Available in black, white, and silver finishes (only black pictured)
- Industry leading warranty five-year warranty on the full fixture and a ten-year warranty on the led array
- Multiple led array options also available in static white arrays
- User-friendly interface with multiple modes and fixture settings

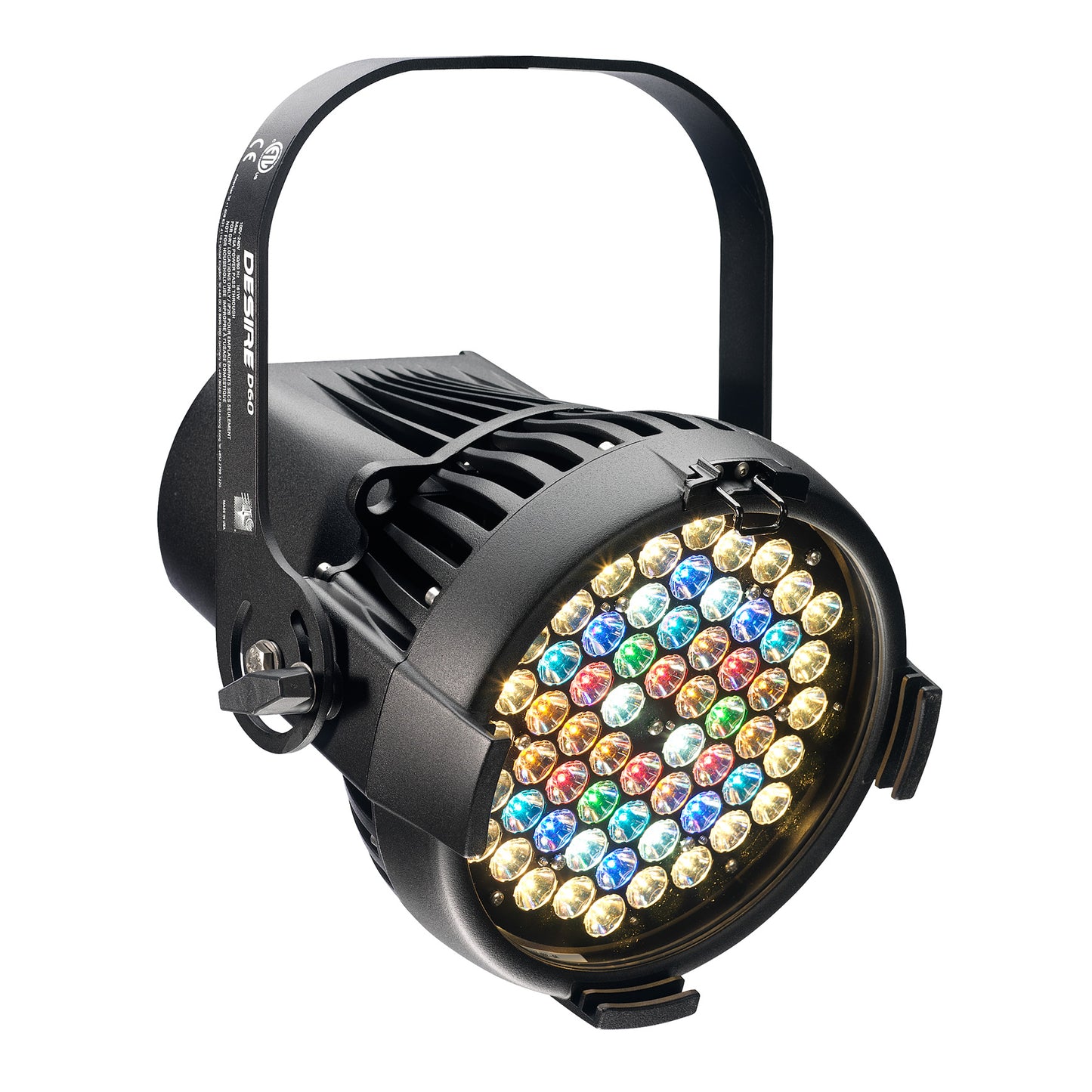

- Desire D60 Studio HD LED Par Wash Light1
- Very Narrow Round diffuser1
- Power cable 1
- Optional yoke/floor stand1
- Source
- LED details: 60 Lumileds LUXEON® Rebel 2.5W LED
- Max lumens: 4532
- Lumens per watt: 30.9
- L70 rating (hours to 70% output): 50,000 hours
- Color
- Colors used: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
- Color temperature range: 2700–5600K
- Calibrated array: Yes
- Red shift: Yes
- Optical
- Beam angle: 8°–17°
- Aperture size: 9"
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control
- Input method: DMX512 via termination board
- Protocols: DMX-512/RDM
- RDM configuration: Yes
- UI type: LCD
- Local control: Yes
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Electrical
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: Neutrik powerCON® in and thru Requires power from non-dimmable source
- Inrush: 15A at 120V (first half-cycle); 40A at 240V (first half-cycle)
- Fixtures per circuit: 9 (15 A A via power thru); 10 (R20 via module or similar)
- Wattage typical: 161W
- Current draw: 1.43A/120V; 0.58A/240V
- Thermal
- Ambient operating temp: -20°–40°C (-4°–104°F)
- Fan (controllable): Yes (yes)
- Droop compensation: Yes
- dB range: 25 dBa average at 1 m
- BTUs/hour: 549
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color
- Mounting options: Yoke
- IP rating: IP20
- Weight: 8.7kg (19.1 lbs)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: UL 1573, CSA C22.2 No. 166, CE Compliant, EAC Compliant
- Dimensions (LxWxH)11.4x12.15x15" (290x309x381mm)
