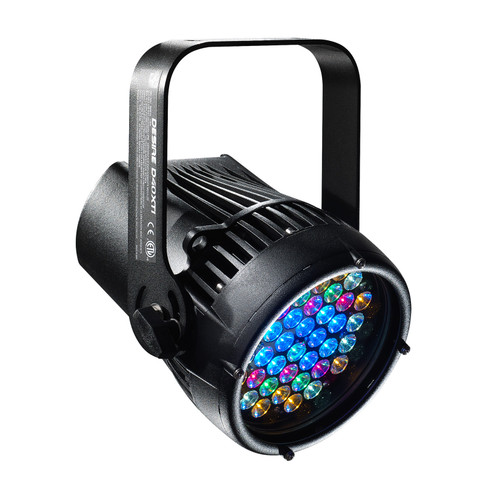

The ETC Desire D60X Studio HD LED Par Wash Light combines warm white and cool white LEDs for variable color temperature mixing. Added to this are five carefully chosen LED colors from the x7 Color System to fill in the white LED spectral gaps. D60X Studio HD provides the richest variable white light possible in an LED luminaire.
ETC’s Desire Series D60X brings the amazing control of the x7 Color System and the long throw of a D60 to a portable, IP66 rated fixture. This luminaire is ready for mounting inside or outside–wherever you need it. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available. The D60X offers a rugged die-cast enclosure, noiseless fan-free operation and multiple lens options that can be changed on-site.
ETC Desire D60X Studio HD Features
- Available in black, white, or silver finishes (only black pictured)
- Five year warranty on the full fixture and a ten year warranty on the led array
- Exclusive x7 color system provides a full gamut of color options for every design
- Waterproof outdoor-rated power lead rugged, durable fixture ETL 1598-rated for permanent indoor use and IP66-rated for long-term outdoor use
- Desire D60X Studio HD LED Par Wash Light1
- Hanging yoke1
- Source
- LED details: 60 Lumileds LUXEON® Rebel LED
- Max lumens: 4532
- Lumens per watt: 33.4
- L70 rating (hours to 70% output): 50,000 hours
- Color
- Colors used: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
- Color temperature range: 2,700–6,500K
- Calibrated array: Yes
- Red shift: Yes (not available on static white)
- Optical
- Beam angle: 8°–17°
- Aperture size: 9"
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control
- Input method: DMX512 via termination board
- Protocols: DMX-512/RDM
- RDM configuration: Yes
- UI type: LCD
- Local control: Yes
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Electrical
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: Waterproof, 39 in power lead; Requires power from non-dim source
- Inrush: 46A at 120V (First half-cycle); 77A at 240V (First half-cycle)
- Fixtures per circuit: 10 (15 A may be fed on same circuit)
- Wattage typical: 124W
- Current draw: 1A
- Thermal
- Ambient operating temp: -20°–40°C (-4°–104°F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: NA
- BTUs/hour: 423.088
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color
- Mounting options: Yoke
- IP rating: IP66 for exterior wet-location
- Weight: 10.43 kg (23 lbs)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: cETLus Listed; Conforms to UL1598; Certified to CSA C22.2 No. 250.0; CE Compliant
- Dimensions (LxWxH)11.3x12.15x14.21" (287x309x361mm)
