Though the need for pristine AC power is nothing new, the Elite-15 Power Factor i's technology and its unique implementation are revolutionary and without peer.
The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today's home theater. Our solution based technology, extensive engineering expertise, and robust build quality have answered the challenge of today's corrupted power lines, and led to the creation of the Elite-15 PF i.
Furman ELITE-15i Features
- SMP provides the highest level of protection available
- LiFT significantly reduces AC line noise
- E.V.S. protects equipment from dangerous overvoltage conditions
- Zero ground contamination circuitry protects critical digital components
- 12 volt triggering for remote control
- ELITE-15i 15A Power Conditioner1
- Three Year Limited Warranty1
- General
- Family: Elite Series
- Line Voltage: 120 (Volts)
- Number of Outlets: 7
- Number of Isolated Banks: 3

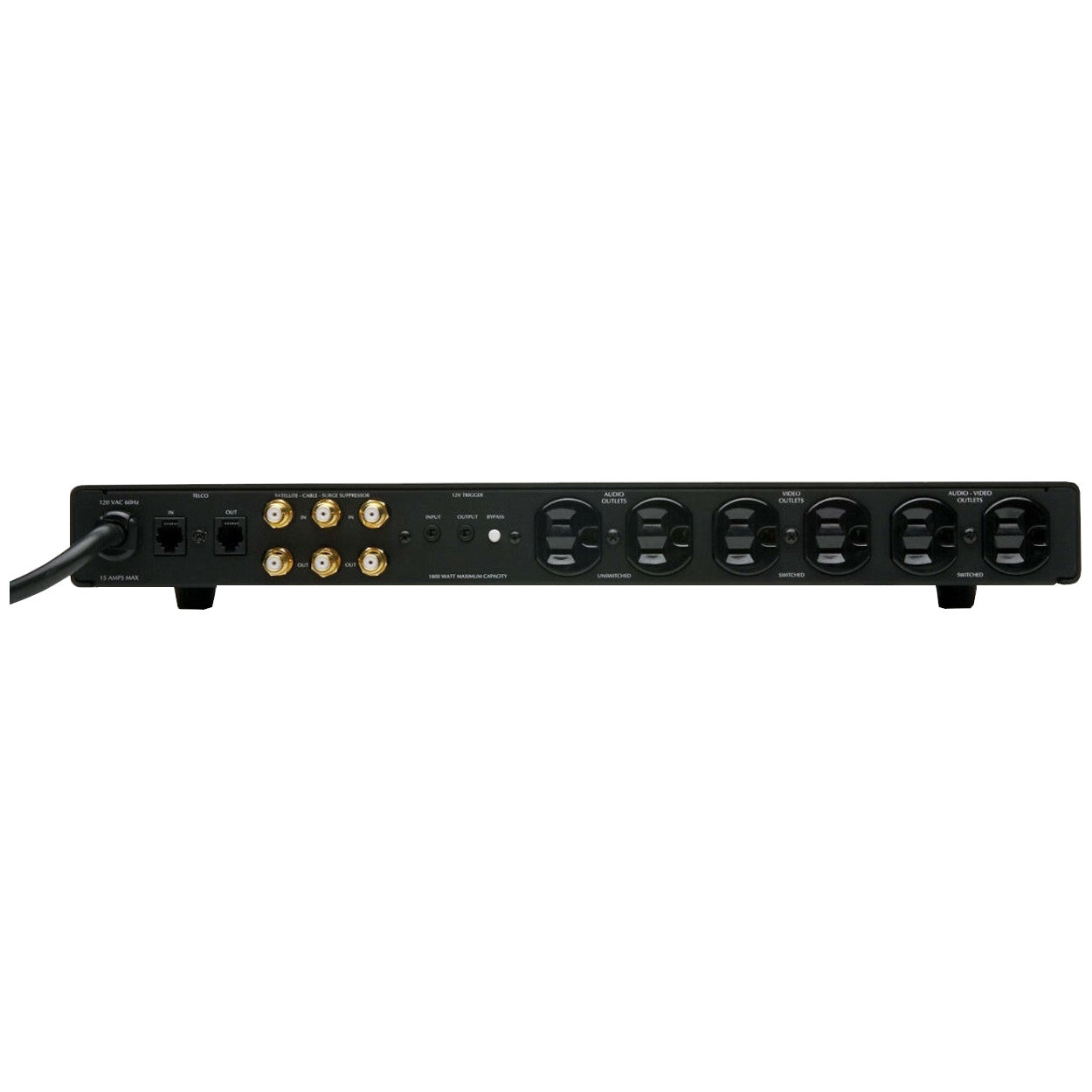

- Outlet Descriptions
- 1 (linearly filtered outlet – front)
- 4 (linearly filtered outlet – rear panel)
- 2 (linearly filtered outlets with additional ultrasonic filtering for digital or video components)
- Rack Mountable: Yes
- Rack Ears Included: Yes
- Front Panel Meter(s): LED voltmeter displays incoming line voltage
- Front Media Light(s): 2 Retractable LED lamps
- Control: On/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control.
- Voltage Regulation: No
- Compliance: NRTL-C
- USB Charging: N/A
- Low Voltage Trigger: 12 V, In/Out
- Dimensions (HxWxD): 2.15x17x14.75″ (Standard 1 RU height without feet)
- Weight: 11 lbs
- Power Consumption: 6 Watts for display and control circuits independent of actual load
- AC Protection
- AC Protection Technology: Extreme Voltage Shutdown
- Series Multi-Stage Protection
- Non-sacrificial protection with zero ground contamination
- Under-Voltage Shutoff: 85V
- Over-Voltage Shutoff: 140V ±3V
- Maximum Current Rating: 15 (Amps)
- Initial Clamping Level: 188 VAC peak @ 3,000 Amps
- Filtration
- Filtration Technology: LiFT
- Filtration Rating
- >40 dB from 10Khz. – 100 kHz.
- >80 dB from 100 Khz. _ 1GHz.
- (Linear attenuation curve from 0.05 _ 100 ohms line impedance)
- Signal Line Protection1 Tel
- 3 Cable/Satellite
- Shipping Info
- Dimensions (LxWxH): 21.5x19.5x4.6"
- Weight: 16.95 lbs
