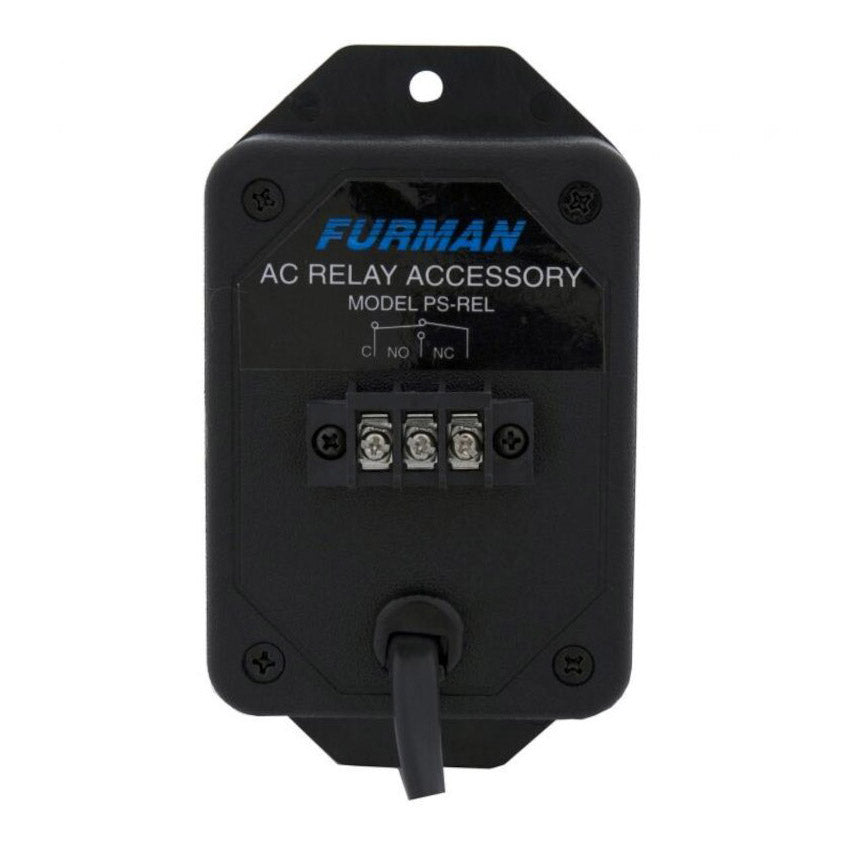

Furman PS-REL AC Relay

The PS-REL AC Relay provides an alternate way of closing switch contacts with trigger based AC power sensing.

Instead of being operated manually like the RS-1, PS-REL has a relay that detects the presence of AC power. In response, closes relay contacts that are wired to a terminal strip. It may be used with any of the Furman products mentioned in connection with the RS-1.

The PS-REL AC Relay Accessory is designed primarily for use with the PS-8R 15 amp Power Sequencer, the PS-PRO 20 amp Power Sequencer, the PowerPort 20 amp Remote AC Controller, the MiniPort-30 Power Relay (30 amps), MiniPort-20 Power Relay (rated 20 amps), and the MiniPort-15 Power Relay (rated 15 amps).

The PS-REL is needed whenever a PS-8R, PS-PRO, PowerPort or MiniPort (or linked chain of PowerPorts or MiniPorts) must be turned on in response to energizing a switched outlet. This occurs frequently in “Home Theater” installations when a switched outlet on a preamp or receiver, (often activated by a wireless remote device), is to be used to power up a large amount of equipment. It allows multiple 15-amp and 20-amp circuits to be controlled from one device.

Furman PS-REL Features

• Functions as a sensor that can close a switch in response to AC power
• Responds on its own
• Determines when a certain outlet has come on after a sequenced delay
• Extends outlets capacity
• Can extend capacity of the switched outlet
• Needed when linked chain of PowerPorts or MiniPorts must turn on in response to energizing a switched outlet
• Designed for use with
• PS-8R 15 amp Power Sequencer
• PS-PRO 20 amp Power Sequencer
• PowerPort 20 amp Remote AC Controller
• MiniPort-30 Power Relay (30 amps)
• MiniPort-20 Power Relay (rated 20 amps)
• MiniPort-15 Power Relay (rated 15 amps)
• 3 Year Limited Warranty

• PS-REL AC relay1

• Line voltage120 volts
• Height4.375"
• Width2.5"
• Depth1"
