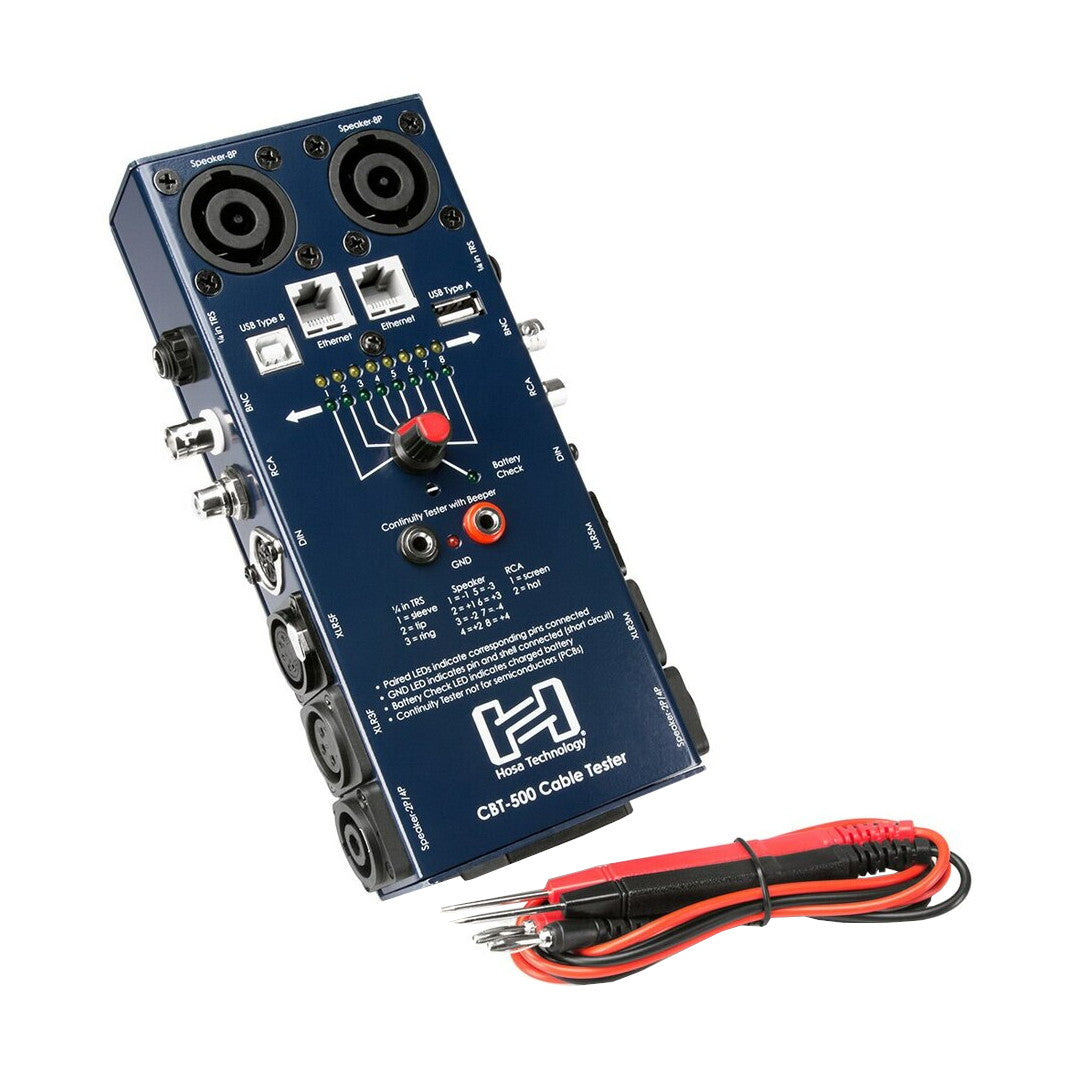

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, 75-ohm BNC, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).
Hosa CBT-500 Features
- XLR (3-pin and 5-pin)
- Balanced and unbalanced phone (standard guitar-type cable)
- Phono (RCA)
- speakON® (with support for 2-pole, 4-pole, and 8-pole connectors)
- DIN (multi-pin, including 5-pin DIN commonly used for MIDI equipment)
- Ethernet (RJ-45)
- USB Type A to Type B (standard USB to the square USB connector found on most audio interfaces)
- CBT-500 Audio Cable Tester1
- 9 volt battery1
- Dimensions (H x W x L)1.4 x 3.5 x 7.5 inches (3.5 x 8.9 x 18.4 cm)
- Weight1.8 lb (0.8 kg)
- ChassisAll-metal construction
- CompatiblespeakON 2-pole/4-pole/8-pole
- Connectors
- XLR Male to Female 3/pin/5-pin
- RCA (Phono)
- DIN 3-pin/5-pin/7-pin/9-pin
- 1/4" (Phone) TS/TRS
- USB Type A to Type B
- RJ45 (Ethernet)
- PowerOne (1) 9V battery
