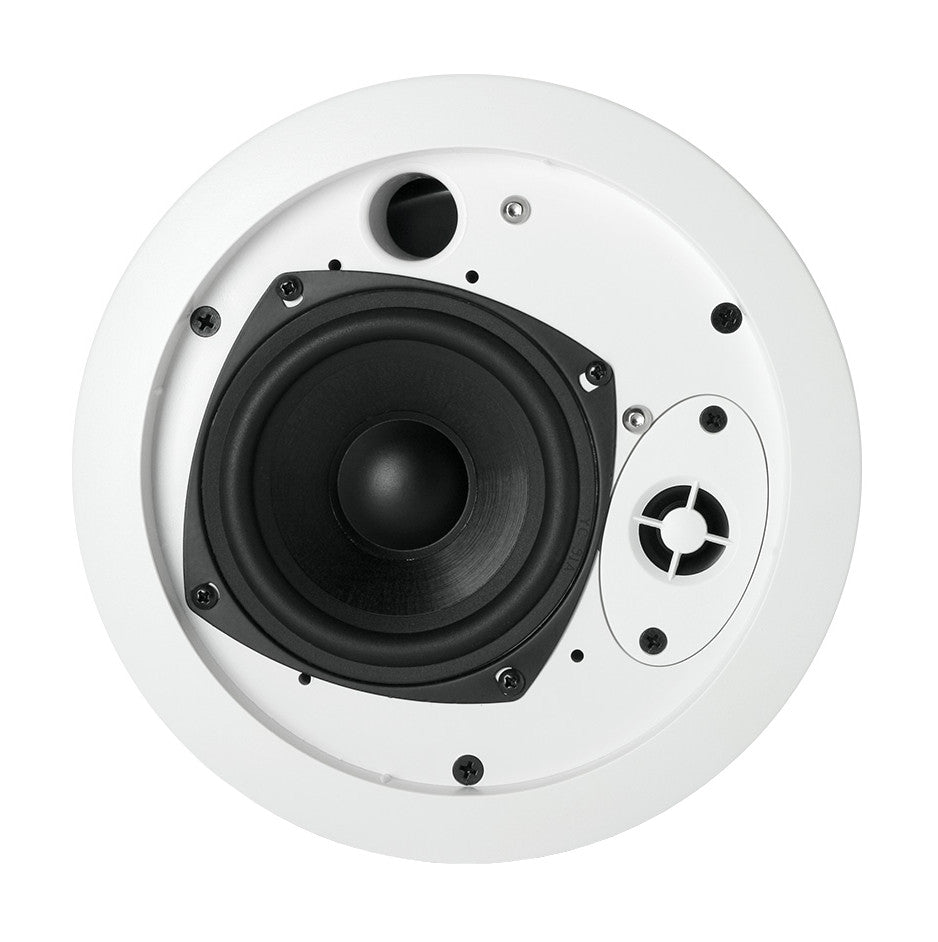

The Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion and a smooth, natural frequency response make the Control 24C/CT Micro ideal for medium volume business music systems as well as for the medium to low SPL segments of larger or louder systems. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers can, in many systems, allow for mixing and matching of models within zones without requiring separate equalization.
JBL Control 24C Micro Features
- Priced individually, sold in quantities of 2
- Extremely wide 150° coverage
- Smooth frequency response
- 4.5 inch (115 mm) woofer, injection molded graphite cone with butyl rubber surround
- 0.5 inch (12 mm) polycarbonate tweeter for extended response
- Control 24C Micro is 8 ohms and handles 15W
- Shallow 4-inch (100 mm) depth
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
- Control 24C Micro Ceiling Speaker2
- C-shaped support backing plate 1
- 2 tile support rails (fits both 2 ft and 600 mm tiles) 2
- Cutout template, cardboard1
- Frequency Range 85 Hz - 25 kHz
- Power Rating
- IEC System Long-Term Ratings (low-Z direct):
- 30 Watts Continuous Program Power
- 15 Watts Continuous Pink Noise (60W peak), 100 hrs
- Sensitivity 86 dB (100 Hz - 10 kHz)
- Crossover Frequency 3.5 kHz
- Maximum SPL (1m) 98 dB (104 dB peak)
- Coverage Angle 150° conical
- Impedance 7.1 ohms
- Input Connectors Screw-down terminals.
- Drivers
- LF Driver: 115 mm (4.5 in)
- HF Driver: 12 mm (0.5 in)
- Color White
- Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan formed steel (included "blind-mount")
- Baffle/Rim Medium impact polystyrene, fire rated UL94V-O
- Ceiling Cutout Size 167 mm (6.6 in) diameter (cardboard cutout template included)
- Plenum Usage Yes, backcan included
