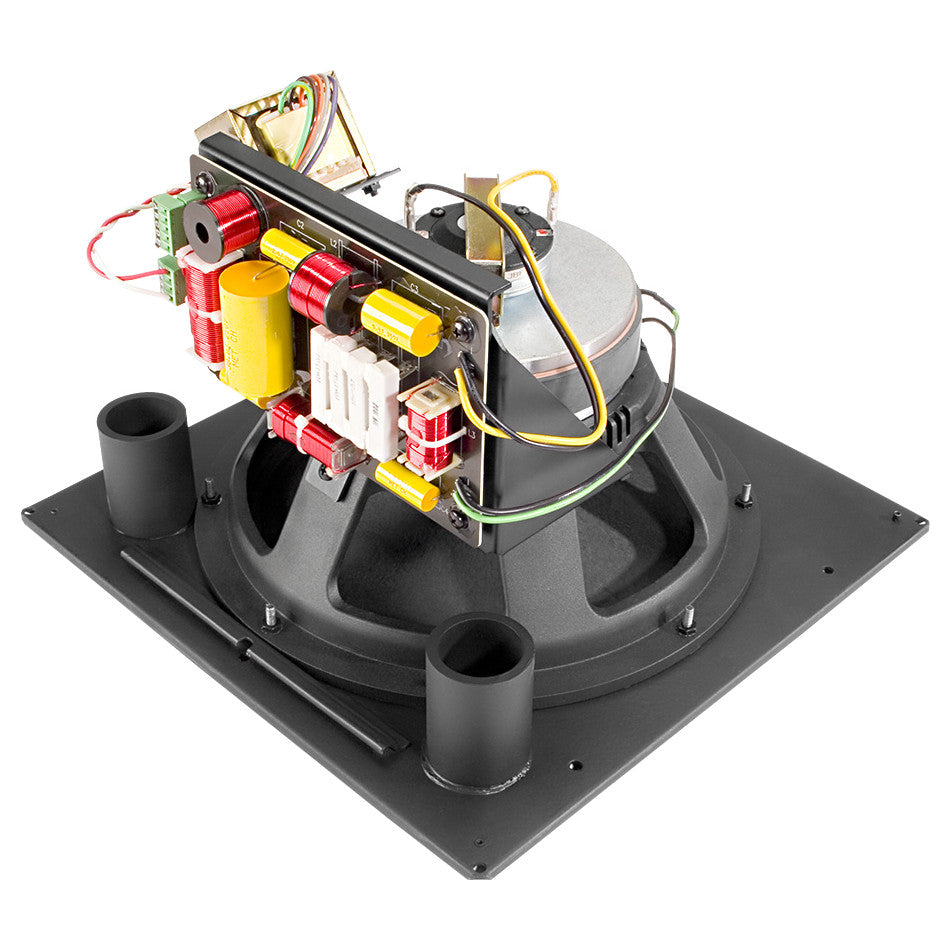

The Control 322C from JBL delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
JBL Control 322C Features
- Consistent 90° broadband pattern control.
- Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
- Medium-format compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- Power handling of 400 Watts with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
- Control 322C 12-Inch Ceiling Speaker1
- Frequency Range (-10dB)32 Hz – 20 kHz
- Power Rating IEC Long-Term System Power Rating: 400 W continuous pink noise (1600 W peak), 2 hrs 250 W continuous pink noise (1000 W peak), 100 hrs
- Sensitivity 95 dB (1 kHz - 16 kHz)
- Frequency Response (±3 dB) 48 Hz – 19 kHz
- Coverage Angle 90° conical, constant directivity
- Directivity Factor (Q) 9 (1k - 16kHz)
- Directivity Index (DI) 9.5dB (1k - 16kHz)
- Crossover Network 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
- Impedance 8 ohms
- Dimensions (HxWxD) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
- Maximum SPL (1m) 121 dB (127 dB peak)
- Input Connectors Screw locking barrier strip for bare wire
- Drivers
- LF Driver: 300 mm (12 in)
- HF Driver: compression driver, 37 mm (1.5 inch) coil
- Color White
- Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan formed steel (wood-lined; accessory)
- Baffle/Rim Metal, driver pre-mounted to baffle, ported.
- Ceiling Cutout Size 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
- Plenum Usage Yes, with accessory backcan
