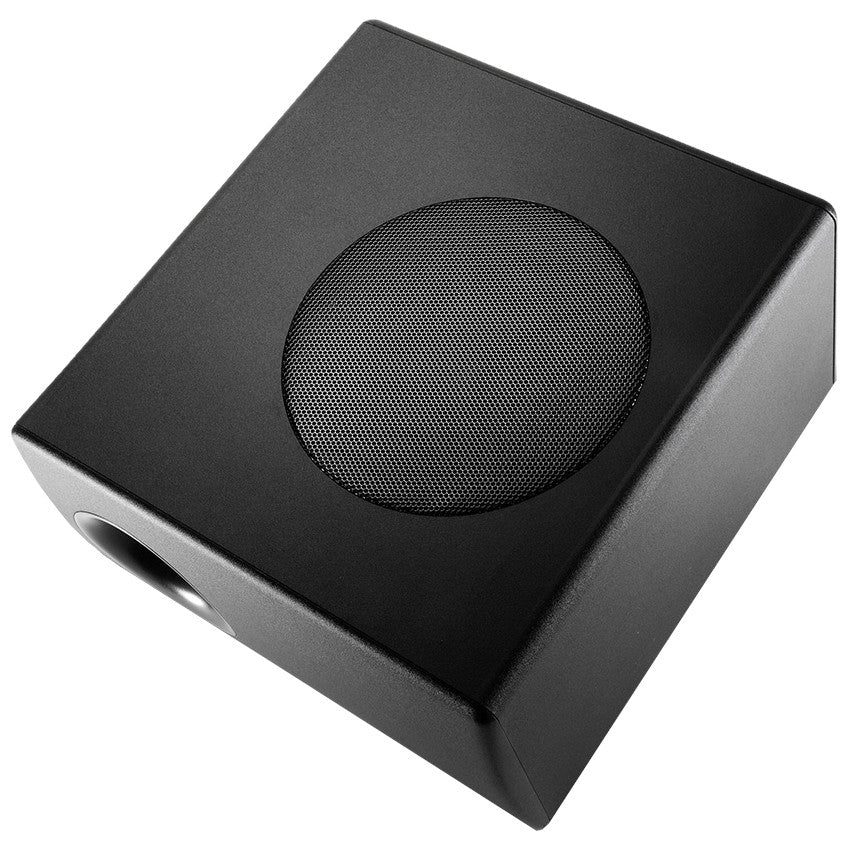

JBL Control 50S/T 8-Inch Surface Mount Install Subwoofer

The Control 50S/T sub contains a high-power, long-excursion, 8” driver which features an extremely robust high-mass cone for extended low frequency response.

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.

JBL Control 50S/T Features

• Full bandwidth 32 Hz – 20 kHz high fidelity sound
• Selectable 70V/100V for distributed lines, or low impedance
• Versatility for either two or four satellite speakers per system
• Available in black or white

• Control 50S/T 8-Inch Surface Mount Install Subwoofer1
• Wall bracket (both speaker and wall parts)1
• M6 screws to attach to speaker4
• Terminal cover1
• 2-pin locking connectors6
• M6 screw for safety lanyard attachment1

• Frequency Range (-10dB)32 Hz – 200 Hz
• Frequency Response (±3 dB)50 Hz – 150 Hz
• Power Capacity
  • 300 Watts Continuous Program Power (2 hrs)
  • 150 Watts Continuous Pink Noise (2 hrs)
  • 200 Watts Continuous Program Power (100 hrs)
  • 100 Watts Continuous Pink Noise (100 hrs)
• Sensitivity 95 dB (near corner), 89 dB (center of wall)
• Maximum SPL (1m) 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
• Impedance 8 ohms (in bypass/thru mode)
• Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
• Drivers 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
• Input Connectors Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
• Enclosure Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
• Dimensions (H x W x D)
  • Cabinet: 356 x 391 x 203 mm (14 x 15.4 x 8 in)
  • Wall Bracket: 15 mm (0.6 in) deep
• Mounting Hardware 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
• Net Weight (each) 9 kg (20 lbs)
• Shipping Weight 10.2 kg (23 lbs)
• Grille Zinc-plated steel
