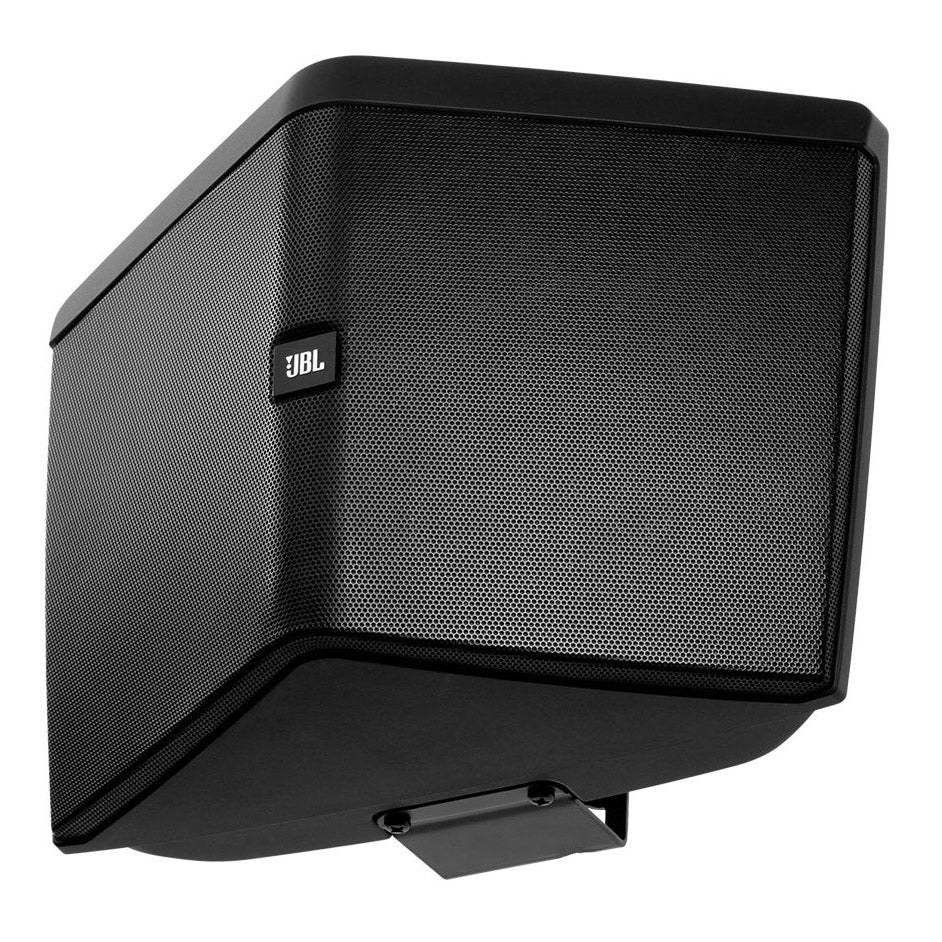

The JBL Control HST 5.25-Inch Surface Mount Speaker provides a flatter resulting frequency response along with a consistent sound character throughout the room.
The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound. When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.
JBL Control HST Features
- 5.25" CMMD woofer and two splayed 0.75" fluid-cooled tweeters
- Wall facing woofer
- Engineered noise cancelling
- Hemispherical Soundfield Technology™
- 100 Watt power handling in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer
- High fidelity sound character with broad frequency response of 50 Hz – 20 kHz
- Control HST 5.25-inch surface mount speaker1
- U-bracket1
- Frequency Range (-10dB)50Hz - 20,000Hz
- Frequency Response (±3dB)68Hz - 18,000Hz
- Coverage Angle180° H x 160° V (1 kHz – 2 kHz, nominal) 160° H x 150° V (ave, 1 kHz – 16 kHz)
- Directivity Factor (Q)5.4 (1 k – 16 kHz)
- Directivity Index (DI)7.2 dB (1 k – 16 kHz)
- System Power Rating (IEC)100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
- Sensitivity88 dB (Ave. 80 Hz – 20 kHz)
- Max. SPL (1m)
- Direct 8Ω: 108 dB (peaks of 114 dB)
- 60 W Tap: 97 dB @ 60W
- Crossover Network1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
- Impedance8 ohms
- Transformer Taps
- 70V: 60W, 30W, 15W, 7.5W
- 100V: 60W, 30W, 15W
- Drivers
- LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil
- HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling
- Enclosurefiberglass-reinforced ABS
- AttachmentFour M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
- Grillealuminum grille, painted to match cabinet color
- Input ConnectorsRemovable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2)
- Outdoor CapabilityIP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
- Dimensions (HxWxD)14.25" x 10.1" x 7.2"
- Weight9.5 pounds with U-bracket
