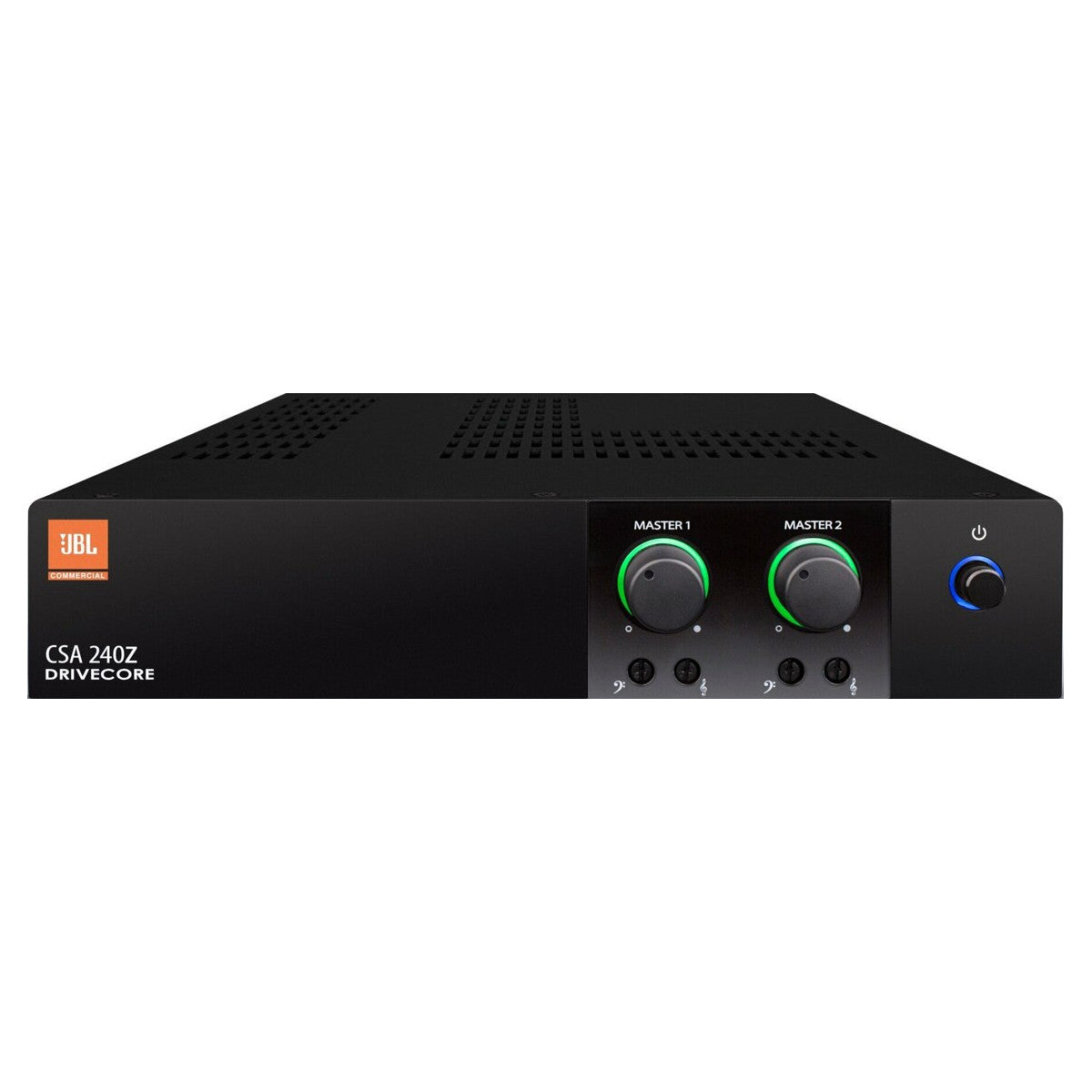

Simple to configure, the JBL CSA 240Z Commercial Amplifier provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.
Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every Commercial Series amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz. And with HARMAN's GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.
JBL CSA 240Z Features
- 2 output channels with 40W per channel
- Built-in 70V and 100V
- Fanless, space-saving 1U design
- Sleep mode disable function
- Energy-efficient amplifier
- Sleek industrial look with illuminated rings making knobs easy to see and use
- Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
- Universal power supply
- Energy Star® Certified
- CSA 240Z Commercial Amplifier1
- Rack mounting kit1
- Power Output 40W/80W/120W
- Output Channels 2
- Input Sensitivity 1.4Vrms for 8-ohms
- Phantom Power 27VDC
- AC Line Voltage 100 - 240V, 50/60 Hz
- Input Impedance 20K ohms/50K ohms
- Dimensions 1.75 x 8.5 x 12” (44.45 x 215.9 x 304.8mm)
