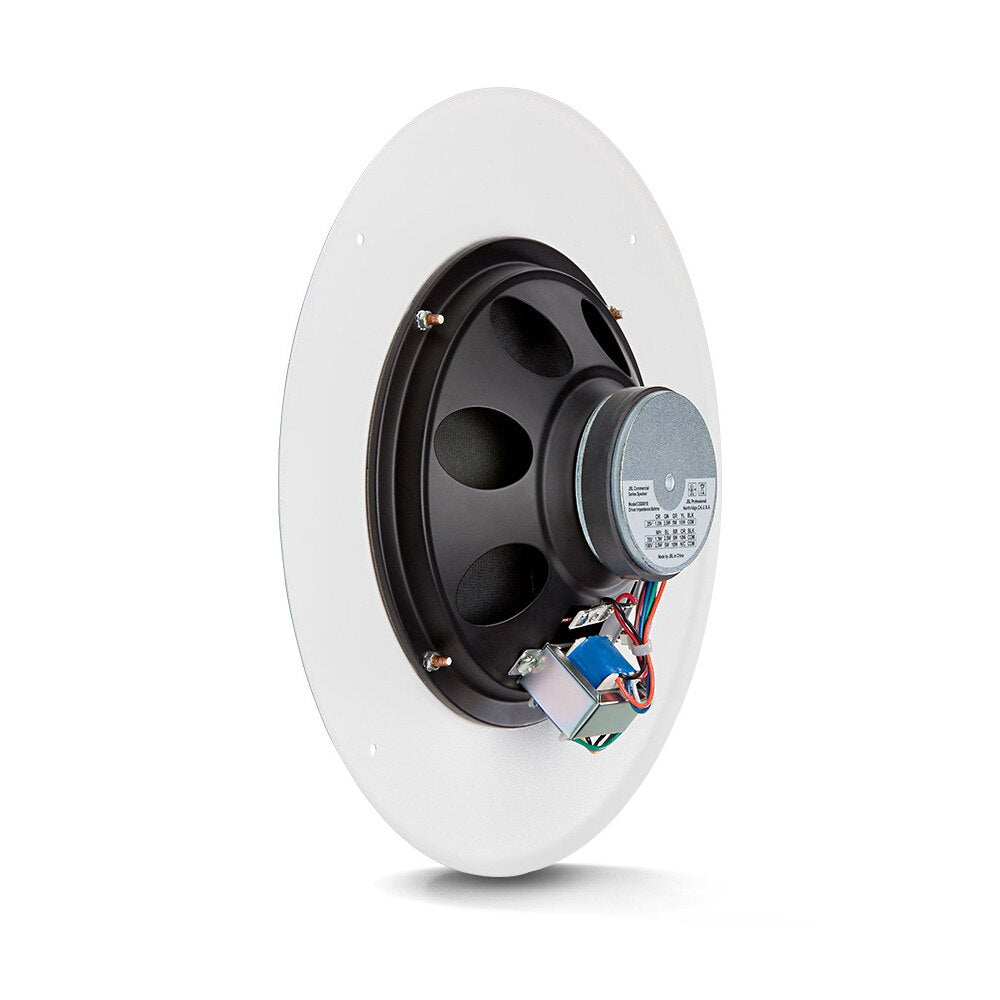

JBL CSS8018 8-Inch Ceiling Speaker

JBL's Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Model CSS8018 is a higher-power 200 mm (8 in) speaker, with very high 97 dB sensitivity and a larger 10-Watt multi-tap transformer.

JBL CSS8018 Features

• Affordably priced, high-quality dualcone type ceiling speaker
• Pre-assembled speaker / transformer / grille assembly
• Suitable for most paging or background music applications, including retail stores, restaurants, schools, and other facilities
• Very high sensitivity provides maximum sound levels using minimal amplifier power
• Quality triple-voltage transformer (100V, 70V and 25V)

• CSS8018 8" Ceiling Speaker1
• M4 x 40 mm sheet metal screws4

• Drivers 200 mm (8 in) Full-Range
• Sensitivity 97 dB (2k - 6k Hz)
• Frequency Range (-10 dB) Driver/Grille Assembly 50 Hz – 17 kHz
• Installed in CSS-BB backcan 90 Hz – 17 kHz
• Coverage Angle 110° conical
• Driver Continuous Power Handling 20 Watts
• Transformer Taps 10W, 5W, 2.5W
• Transformer Taps 10W, 5W, 2.5W, 1.3W
• Transformer Taps 10W, 5W, 2.5W, 1.3W
• Transformer Insertion Loss 1.5 dB Maximum
• Transformer Connection Bare wire
• Motor Mass 283 g (10 oz)
• Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Matching CSS Backcan CSS-BB8 (0.15 cu ft)
• Other Compatible Backcans MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft)
• Bolt Mounting Circle to Backcan 4 points on 286 mm (11.25 in) diameter
• Cutout DiameterOpen-back 216 mm (8.5 in)
• In CSS-BB backcan 295 mm (11.7 in)
• Depth (behind grille) 73 mm (2.9 in)
• Grille Diameter 327 mm (12.9 in)
• Net Weight (each) 1.58 kg (3.5 lb)
• Shipping Weight (ea) 2.25 kg (5.0 lb)
• Power Rating See transformer taps
• Transformer Taps
  • 100V Taps - 10W, 5W, 2.5W
  • 70V Taps - 10W, 5W, 2.5W, 1.3W
  • 25V Taps - 10W, 5W, 2.5W, 1.3W
• Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
• Input Connectors Bare wire
• Color White
• Backcan formed steel (accessory)
• Baffle/Rim Metal
• Ceiling Cutout Size 216 mm (8.5 in)
• Plenum Usage Yes, with accessory backcan
