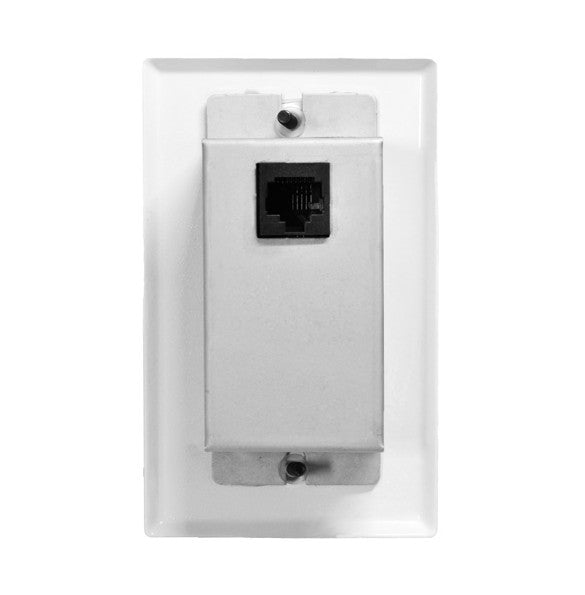

The Juice Goose RC 5WM-RS Wallmount Remote Control Monitor provides a wall mount trigger for CQ Series power sequencers. When connected to the Input control port on a CQ Series model using RJ-45 cable, the RC 5 acts as a trigger to sequence up or down any number of power sequencers connected in line "down stream" from the RC 5. Installation is simple and requires no external power supply.
Wall mounted installations requiring more security can use the RC 5WM-RS which provides sequence functions and monitoring with a key rather than a rotary switch. Rack mounted triggers include the RC 5RM and RC 5RM-RS.
Juice Goose RC 5WM-RS Features
- Security control
- Sequence Up, Sequence Down, and Pause capability
- Indicator lights for sequence operation, sequence completion and system status
- RC 5WM-RS wallmount remote control monitor1
- Chassisaluminum face plate with finished back box
- Space Requirementssingle gang utility box
- Signal Line Connections6 Wire Flat Phone Cable w/ Modular RJ Type Connectors
- Dimensions4.5" x 2.75" x 1.5"
