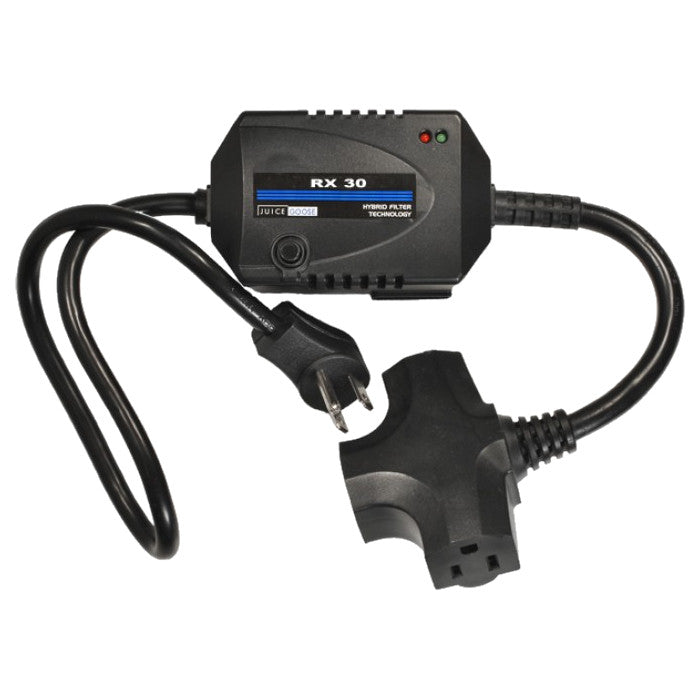

The RX 30 Filtercord features the Juice Goose Hybrid Filter Technology to improve performance of electronic components and protect against dangerous power line surges on the hot, neutral and ground power leads.
Juice Goose RX Series technology reduces ground line (common mode) surges to a maximum of 0.50 (on half) volt. While ground line surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment.
The Hybrid Filter also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps on between hot and neutral. The RX Series circuitry allows a maximum 10.0 volt normal mode surge. The RX Series uses a Hybrid Filter Technology that will not contaminate the ground. Instead, it cleans it up.
Juice Goose RX 30 Features
- 10 Amp Capacity
- Maximum Hot Neutral Surge of 10 Volts
- Maximum Ground Surge: 0.50 Volts
- High Frequency Normal and Common Mode Noise Filtration
- Over Voltage Shutdown
- Protection Against External Wiring Faults
- Three power receptacles
- RX 30 Surge Protection Filtercord1
- Transient Energy Absorption (Joules) 1020
- Maximum Applied Surge Current (Amps) 3000
- Maximum Applied Surge Pulse Voltage 6000
- Let Through Surge Voltage (Volts)
- N-G: 0.5
- L-N: 10
- Common Mode (N - G) Interference Filter (dB)
- 300kHz: 77
- 1mHz 80
- 10mHz 80
- 30mHz 80
- Normal Mode (L-N) Interference Filter (dB)
- 300kHz 56
- 1mHz 60
- 10mHz 60
- 30mHz 60
- Voltage 120vac, 60 Hz
- Maximum Current Load 10 Amps
- Weight 3 lbs
- Power Cord Length (Input) 3 Feet
- Plug (Right Angle) Nema 5-15p
- Receptacles (Nema 5-15r)3
